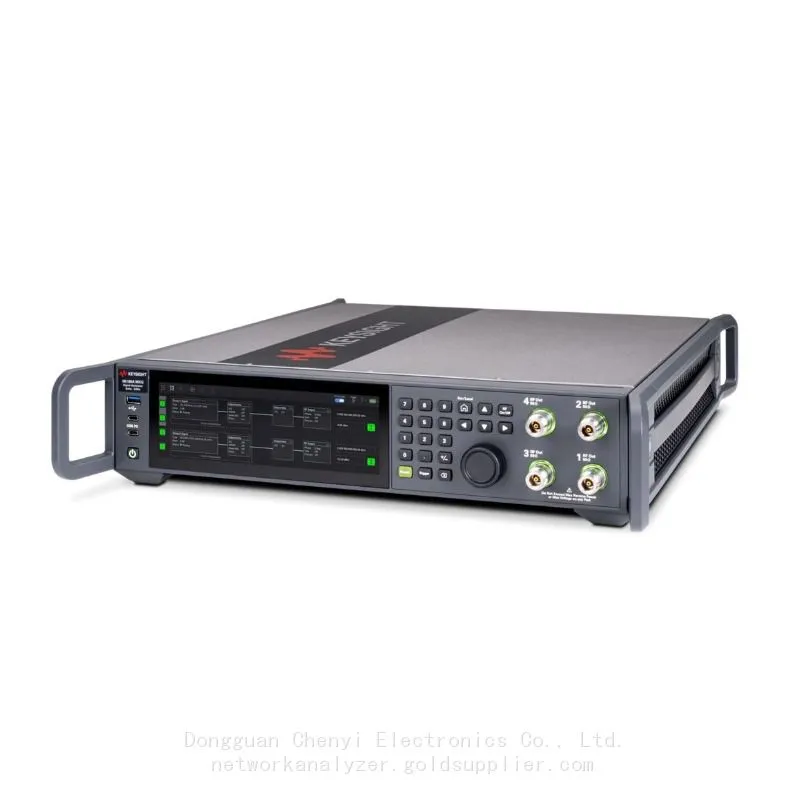

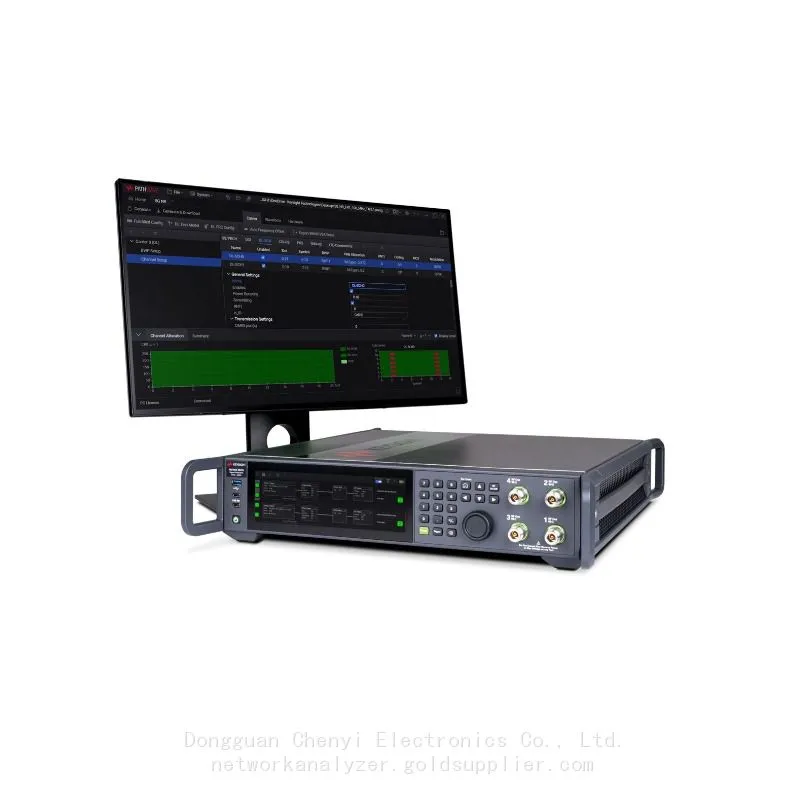

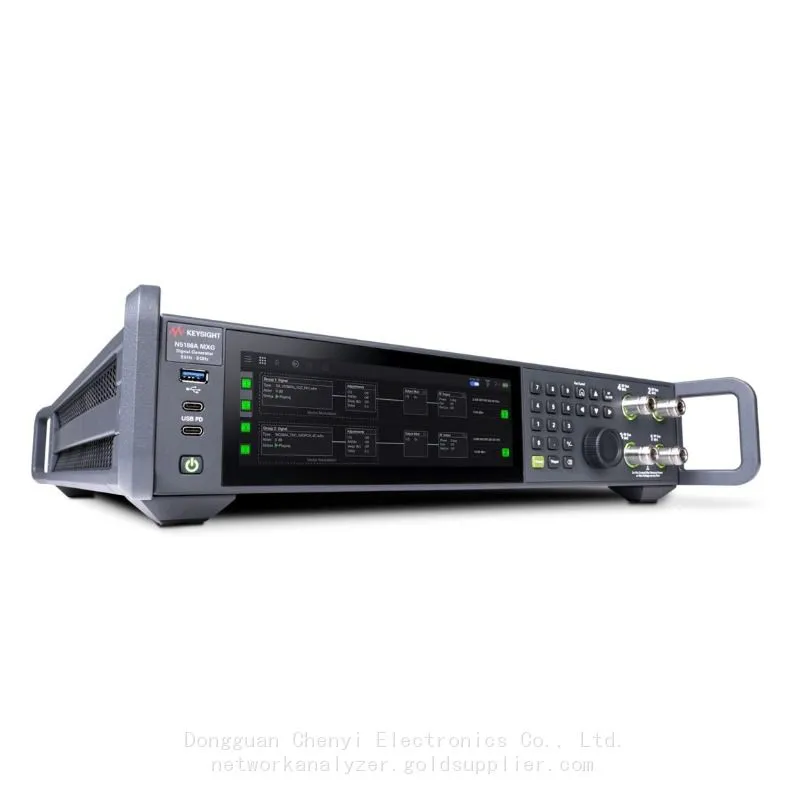

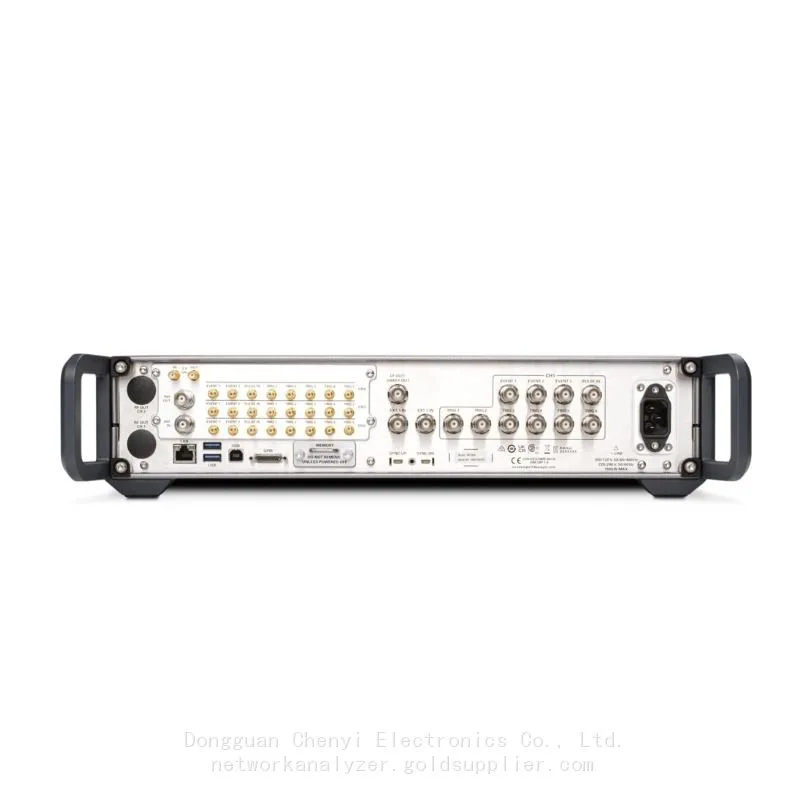

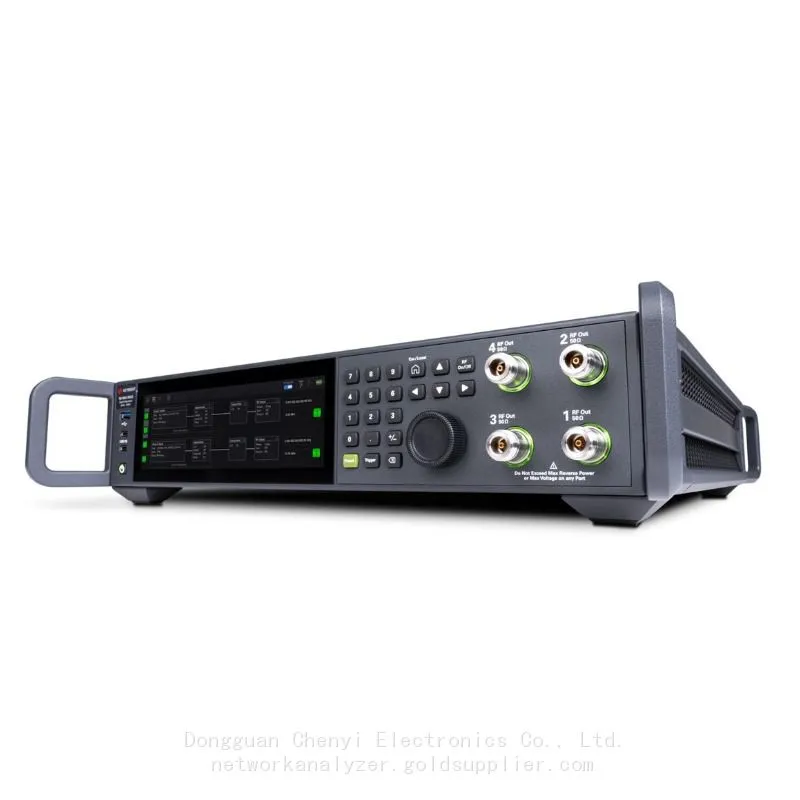

Keysight N5186A 8.5GHz Four‑Channel Generator, Comes With Gigabit‑LAN, USB3.0 and GPIB Communication Ports
N5186A-Option 503： 9 kHz to 3GHz
N5186A-Option 506： 9 kHz to 6 GHz
N5186A-Option 508： 9 kHz to 8.5GHz
Compact, multichannel vector signal generator capable of signal generation up to 8.5 GHz with
1 GHz of modulation bandwidth per channel.
N5186A MXG High-Performance Multichannel Vector Signal Generator
Evolving technologies in wireless communications and aerospace and defense applications demand higher frequency coverage using complex modulation schemes like multiple-input / multiple-output (MIMO), beamforming, and multiplexing to maximize data throughput. The Keysight N5186A MXG vector signal generator provides consistent and repeatable results that are ideal for multiport testing. The MXG’s custom DAC application-specific integrated circuits (ASICs) use direct digital synthesis to deliver precise signals in one easy-to-use box.
• Covers frequency range from 9 kHz to 8.5 GHz with excellent phase noise, output power, EVM and ACPR.
• Supports military radio communications and MIMO tests with up to four unique outputs.
• Generates complex wideband signals needed for carrier aggregation and digital pre-distortion (DPD)
applications with up to 1 GHz bandwidth per channel.
• Reduces measurement uncertainty in power amplifier characterizations when using the embedded reflectometer.
• Maximizes production capacity without sacrificing rack space in a 2U box.
• Enables fast access to a dedicated team of KeysightCare technical support engineers.
Options
Other Software
N6171A MATLAB Software
N7650B Signal Studio Waveform Licenses
Software with Subscription
N7600EMBC： Signal Studio for W-CDMA/HSPA+, waveform playback
N7601EMBC： Signal Studio for cdma2000/1xEV-DO, waveform playback
N7602EMBC： Signal Studio for GSM/EDGE/Evo, waveform playback
N7606EMBC： Signal Studio for Bluetooth, waveform playback
N7608EMBC： Signal Studio Pro for Custom Modulation, waveform playback
N7610EMBC： Signal Studio for IoT, waveform playback
N7611EMBC： Signal Studio for broadcast radio, waveform playback
N7626EMBC： Signal Studio for LTE V2X, waveform playback
N7612EMBC： Signal Studio for TD-SCDMA/HSPA, waveform playback
N7632EMBC： PathWave Signal Generation for NR V2X, waveform playback
N7640EMBC： Signal Studio for LMR, waveform playback
N7617EMBC： Signal Studio for WLAN 802.11, waveform playback
N7623EMBC： Signal Studio for digital video, waveform playback
N7624EMBC： Signal Studio for LTE/LTE-Advanced/LTE-A Pro FDD, waveform playback
N7625EMBC： Signal Studio for LTE/LTE-Advanced TDD, waveform playback
N7631EMBC： Signal Studio Pro for 5G NR/5G-Advanced, waveform playback
N7620EMBC： PathWave Signal Generation for Pulse Building, Waveform Playback
Accessories
11900C： Adapter 2.4 mm male to 2.4 mm female
11901C： Adapter 2.4 mm male to APC-3.5 female
11900B： Adapter 2.4 mm female to 2.4 mm female
11904C： Adapter 2.4 mm male to 2.92 mm female
11901B： Adapter 2.4 mm female to APC-3.5 female
83059B： Coaxial Adapter, 3.5mm Female-Female
83059C： Coaxial Adapter, 3.5mm Male-Female
Y1311A： Additional removable M.2 drive
Y1313A： Micro HDMI to Micro HDMI cable
Y1314A： Heavy Duty Rack Flange Kit
