1. Industry Background and Product Overview
In modern process industry automation control systems, valves serve as the "throat" for medium flow. The accurate feedback of their on-off states is directly related to production safety and operating efficiency. Position switches (also known as limit switches or valve position indicators) are small components, but they are the key bridge connecting field valves and the central control system. Once the signal feedback is inaccurate, it may lead to logical disorders at best and safety accidents at worst.
STONEL (Sidongnaier), as a globally renowned provider of valve monitoring solutions, its QX series explosion-proof limit switches are well-known in the industry for their "robustness, precision, and reliability". This article focuses on two classic models - QX33K02HDM and QX35CK02SDM. They inherit STONEL's consistent high-quality genes and have different focuses on compactness and wiring flexibility, which can meet the differential needs of different industrial scenarios - 1 - 2.
According to the latest industry information, the STONEL QX series product line has fully covered different specifications from QX2 to QX4 and is widely used in fields such as petrochemical, natural gas processing, pharmaceutical, power, and water treatment. Among them, QX33K02HDM and QX35CK02SDM have become the standard configuration for many engineering projects due to their excellent explosion-proof performance and durability - 1.
2. Comparison of Core Technical Parameters of the Two Models
To help engineers and procurement personnel select the right models accurately, the following is a in - depth technical analysis and comparison of the two models:
1. Housing Design and Protection Level
QX33K02HDM adopts a compact housing design with a smaller overall size, which is especially suitable for installation on actuators or valve brackets with limited space. Its housing is made of high - strength aluminum alloy or optional 316 stainless steel, and the surface is treated with an anti - corrosion coating, which can effectively resist the erosion of corrosive environments such as salt spray and acid rain - 2.
QX35CK02SDM uses the standard QX series housing with more internal space, which makes multi - terminal configuration possible. The protection levels of both models reach the IP67/IP68 standard, which means that even in the case of short - term water immersion, the internal precision switch components can still be effectively protected, ensuring long - term stable operation in outdoor rainy, snowy weather or humid working conditions - 2.

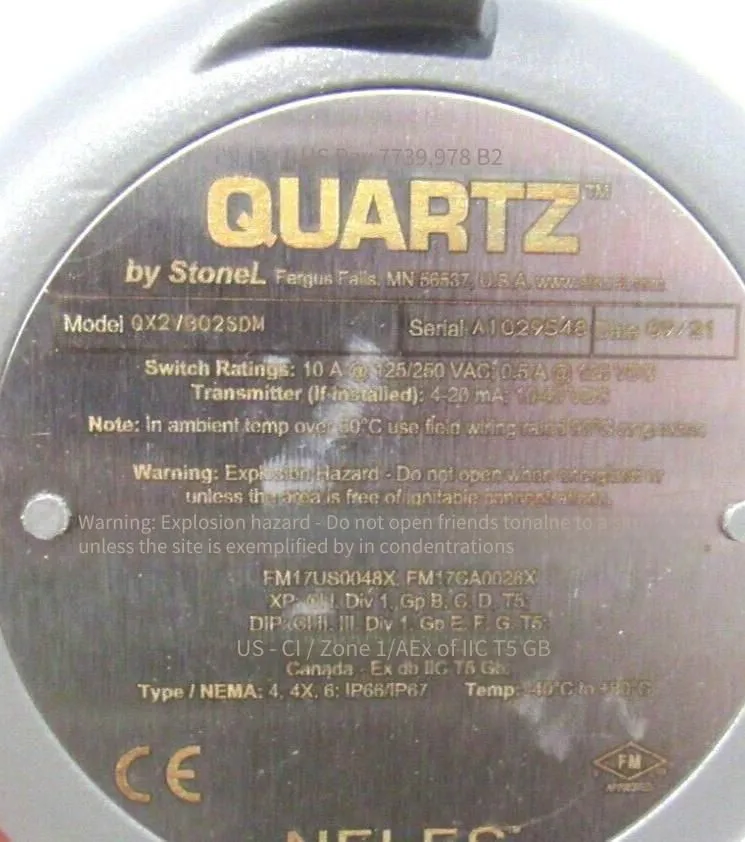

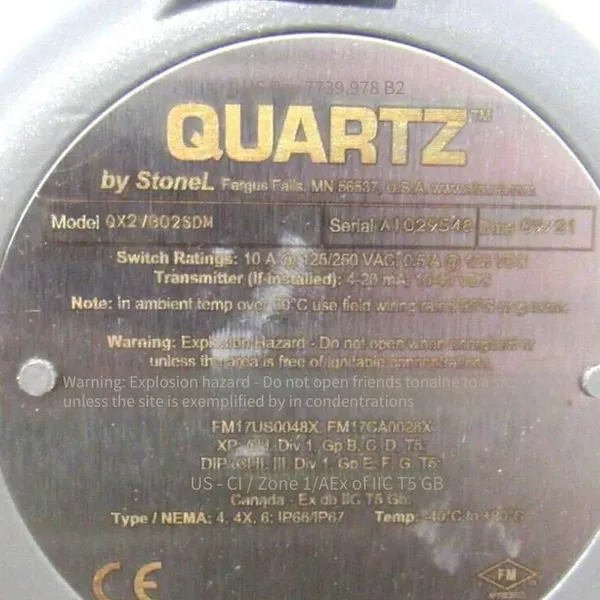

2. Explosion - proof Performance and Safety Certification
In dangerous process environments such as oil and natural gas, safety is the primary consideration. The STONEL QX series is specially designed for explosion - proof environments and has internationally recognized explosion - proof certifications. Its housing adopts a flame - proof structure design, which can not only withstand internal explosions without damage but also effectively prevent the spread of flames to the external environment.
Both QX33K02HDM and QX35CK02SDM are suitable for explosive gas environments such as Zone 1 and Zone 2, as well as dust explosion - proof scenarios. This makes them ideal choices for dangerous areas such as refineries, gas stations, and chemical plant tank farms - 1.
3. Differences in Internal Structure and Wiring
QX33K02HDM is internally equipped with high-performance micro switches and adopts a compact wiring layout. The wiring terminals are neatly arranged, making it suitable for rapid installation scenarios. Its cam adjustment system features a tool-free quick adjustment design. Users only need to manually rotate it on-site to quickly set the "open" and "close" positions of the valve -2.
The "CK" suffix of QX35CK02SDM usually indicates that it has more wiring terminals or special contact configurations. This model has a larger internal space and supports the simultaneous installation of multiple sets of switches, which can meet more complex signal feedback requirements (such as dual-channel signal output, fault alarm, etc.). Its wiring terminals are scientifically arranged and clearly marked, which can significantly reduce the installation time of instrument workers.

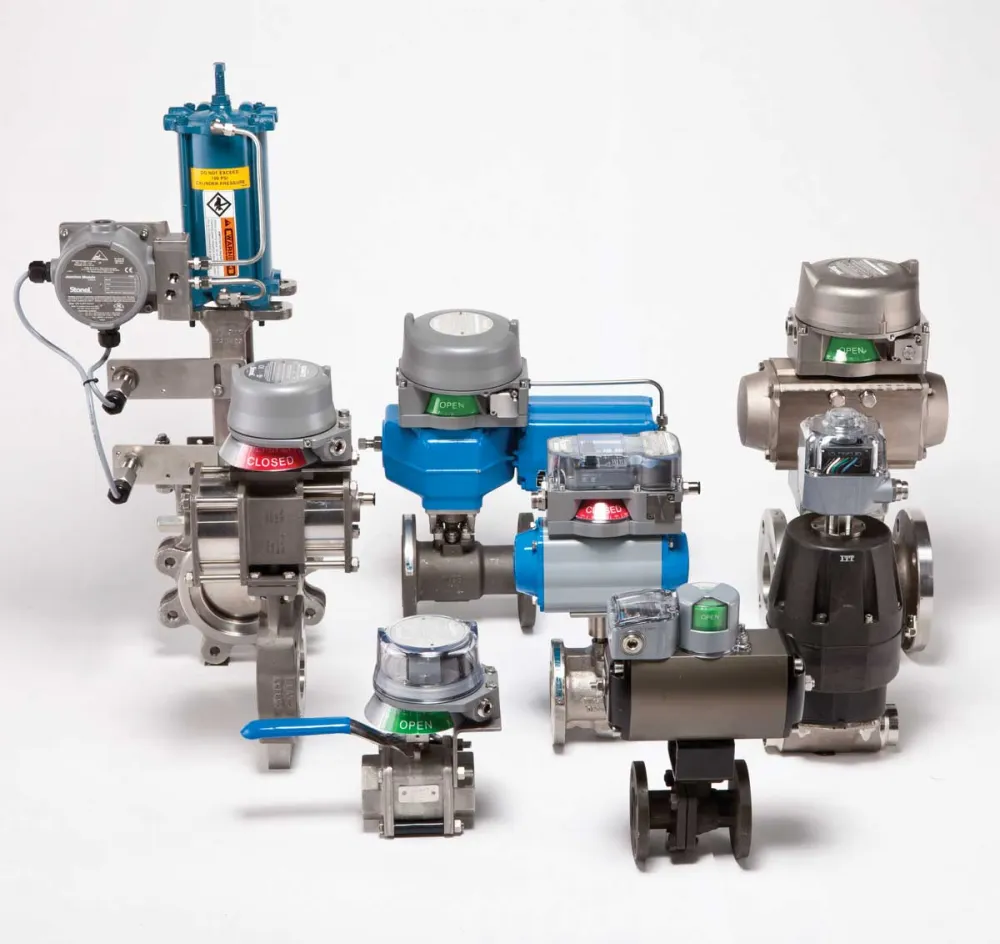

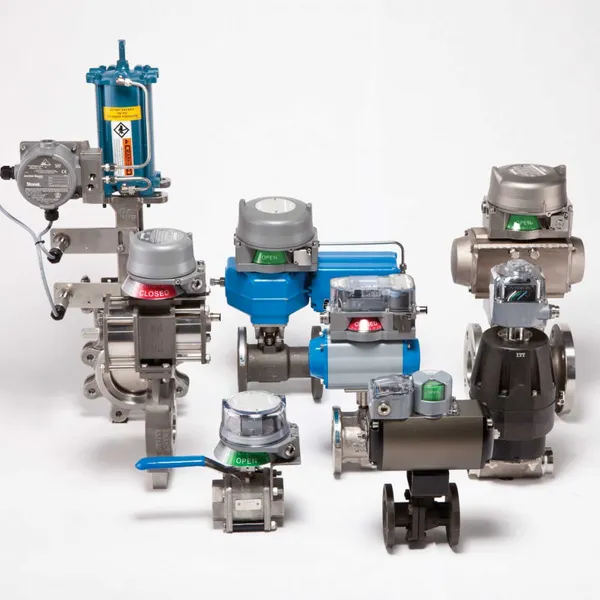

4. 360° Visible Indicator
Both models come standard with large-size, high-contrast color indicators (usually a combination of red/yellow or green/red). This 360-degree panoramic visible design allows operators to clearly judge the actual on-off state of the valve without approaching dangerous equipment during inspections on elevated pipe racks or from a long distance, greatly improving inspection efficiency and personal safety -2.
III. Application Scenarios and Industry Solutions
STONEL QX33K02HDM and QX35CK02SDM are not ordinary position switches but industrial-grade components specially designed for harsh working conditions, and are widely used in the following fields:
1. Oil and Gas Industry
In wellhead devices, long-distance pipelines, and storage tank areas, the safe shutdown of valves is crucial. Both models are used to monitor the opening and closing states of emergency shutdown valves (ESD) to ensure that the safety instrumented system (SIS) can obtain accurate signals in real time. The compact design of QX33K02HDM is particularly suitable for installation in wellhead control cabinets with limited space, while the multi-contact configuration of QX35CK02SDM can send signals to both the DCS system and the local alarm system simultaneously.
2. Chemical Industry and Refining
Chemical production involves strong acids, strong alkalis, and high-temperature and high-pressure environments. STONEL's anti-corrosion coating and sealing technology can effectively resist the corrosion of chemical substances. Whether it is the feed valve of the reactor or the vent valve of the separator, these two position switches can provide stable feedback signals and cooperate with the DCS system to achieve precise process control -2.
3. Power and Energy
In the desulfurization and denitrification systems, cooling water circulation systems of thermal power plants, and the auxiliary systems of nuclear power plants, the status of large butterfly valves and ball valves needs to be frequently monitored. The QX series has excellent seismic performance, which can effectively avoid false alarms caused by pipeline vibrations and ensure the continuity of power production.
4. Water Treatment and Pharmaceutical Industry
In municipal sewage treatment plants and pharmaceutical clean workshops, hygienic-grade valves require reliable feedback. STONEL products have a smooth surface and are easy to clean. Their compact design (especially QX33K02HDM) can adapt to the installation environment with dense pipelines, ensuring the correct valve logic during the CIP cleaning process -2.
IV. Installation, Commissioning and Maintenance Guide
To ensure the performance of STONEL QX33K02HDM and QX35CK02SDM, it is recommended to follow the following operating specifications:
1. Axial Alignment and Installation
When installing the switch on the bracket of the actuator (such as a pneumatic actuator), make sure that the drive shaft of the switch is concentric with the output shaft of the actuator. Eccentric installation will cause wear of the sealing ring, thereby reducing the protection level. The compact design of QX33K02HDM requires higher installation accuracy. It is recommended to use a special installation bracket.
2. Cable Sealing and Protection
A matching explosion-proof cable sealing joint (meeting the requirements of Ex d certification) must be used. In an environment with high humidity, it is recommended to use the "U-shaped" wiring method to prevent condensed water from seeping into the housing along the cable sheath.
3. Cam Adjustment Steps
Manually drive the valve to the "fully closed" position
Loosen the fixing screw on the cam, rotate the cam until the switch is triggered (a clear "click" sound is heard), and tighten the screw
Then drive the valve to the "fully open" position and set the other cam in the same way
Verify the two positions repeatedly to ensure the accuracy of the signal
For the multiple sets of switches of QX35CK02SDM, each set of contacts needs to be calibrated one by one
4. Daily Maintenance Recommendations
Regularly check the fastening bolts of the housing to prevent loosening due to vibration
Check the cable sealing joint once every six months to ensure there is no hidden danger of water ingress
For switches installed outdoors, it is recommended to check the condition of the anti-corrosion coating once a year
V. Why Choose the STONEL QX Series?
1. Lowest Total Life Cycle Cost
Although the initial procurement cost of STONEL products may be slightly higher than that of ordinary brands, their excellent durability means that almost no replacement or maintenance is required during a running cycle of several years. This greatly reduces the production downtime losses and unplanned maintenance costs caused by equipment failures -2.
2. Compatibility and Expandability
The QX series platform supports multiple communication protocols and switch configurations. In addition to the standard dry contact signal (SPDT), it can also integrate inductive proximity switches, fieldbus protocols (such as AS-i bus), etc. according to requirements, facilitating access to modern intelligent control systems.
3. Flexibility in Model Selection
The differentiated design of QX33K02HDM and QX35CK02SDM provides users with flexible model selection options:
For situations with limited space and simple wiring → Choose QX33K02HDM
For situations requiring multiple groups of signal outputs and complex logic control → Choose QX35CK02SDM
4. Localized Service Support
Currently, STONEL products have a comprehensive sales and service network in the Chinese market. Professional authorized distributors such as Wuhan Yuli Automation Technology Co., Ltd. have regular stocks in China, capable of providing rapid spot supply and professional pre-sales and after-sales technical support, ensuring that your project progress is not affected by the supply chain -1.
VI. Model Selection Suggestions and Purchase Guide
How to distinguish the applicable scenarios of the two models?
| Comparison Dimensions | QX33K02HDM | QX35CK02SDM |
|---|---|---|
| Housing Size | Compact, space-saving | Standard, with ample internal space |
| Applicable Scenarios | For occasions with limited installation space | For standard actuator installation, with ample space |
| Wiring Capacity | Standard single-group switch wiring | Multiple groups of switch configurations, flexible wiring |
| Recommended Applications | Installation in wellhead control cabinets and instrument panel cabinets | For large valves and dual-channel signal output requirements |
Purchase Precautions
Confirm the explosion-proof grade: Select the corresponding certification grade according to the actual explosion-proof area on-site
Confirm the electrical interface: Confirm the thread specification (NPT or M20) to match the on-site cable connector
Confirm the switch type: Select a microswitch or proximity switch based on the load type
Confirm the material requirements: Choose an aluminum alloy or 316 stainless steel housing according to the corrosive environment
VII. Conclusion
In the era of Industry 4.0, which pursues efficiency, safety, and intelligence, the reliability of valve accessories directly determines the success or failure of the entire automation system. The STONEL QX33K02HDM and QX35CK02SDM position switches have become Option 1 - 2 for users in the process industry, thanks to their explosion-proof and robust structure, accurate feedback signals, flexible configuration options, and strong environmental adaptability.
For engineers and maintenance managers who are looking for a highly reliable valve position monitoring solution, choosing STONEL means choosing peace of mind. The QX33K02HDM is suitable for scenarios where compact installation is desired, while the QX35CK02SDM meets the needs of complex signal feedback. Whether you are planning an upgrade of automated valves or need to confirm the installation compatibility of a specific model with actuators (such as Rotork, Bettis, Siemens, etc.), feel free to consult a professional supplier to obtain genuine products from the original manufacturer and comprehensive technical support.
