Vane Mist Eliminator Blade Type Gas Liquid Separator for Scrubber Towers
Product Spotlights
DAIER Separation Vane Mist Eliminator uses specially designed blade profiles to separate liquid droplets from gas streams through inertial impaction. Compared with wire mesh pads, vane type mist eliminators are suitable for higher liquid loading applications with low pressure drop requirements. Blade spacing, material and configuration can be customized according to gas velocity, droplet size and equipment design.
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Application:
Chemical Engineering
Form:
Other
Structure Feature:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
10 days
Related Products
-
PP Plastic Mist Eliminator Corrosion Resistant Demister for Scrubber TowersNegotiableMOQ: 1 Set -
High Efficiency Mist Eliminator Fine Droplet Separator for Advanced Gas TreatmentNegotiableMOQ: 1 Set
-
Trough Liquid Distributor Tower Internals for Large Diameter Packed ColumnsNegotiableMOQ: 1 Piece
-
Structured Packing Support Grid Tower Internals for Distillation and Absorption ColumnsNegotiableMOQ: 1 Set
-
Structured Packing Support Grid Tower Internals for Distillation and Absorption ColumnsNegotiableMOQ: 1 Set
Application
Chemical Engineering
Form
Other
Structure Feature
Other
Transport Package
Export Standard Packing
Specification
Customized
Trademark
DAIER Separation
Origin
Pingxiang, Jiangxi, China
| Product Name | Vane Mist Eliminator |
| Alternative Name | Blade Mist Eliminator |
| Product Type | Mist Eliminator |
| Structure | Chevron Blade Pack |
| Material | PP / SS304 / SS316 / SS316L |
| Function | Gas Liquid Separation |
| Application | Scrubber / Separator |
| Droplet Removal | Inertial Separation |
| Pressure Drop | Low Pressure Drop Design |
| Installation | Vertical / Horizontal Flow |
| Customization | Blade Spacing / Frame / Size |
| Project Type | New / Replacement / Revamp |

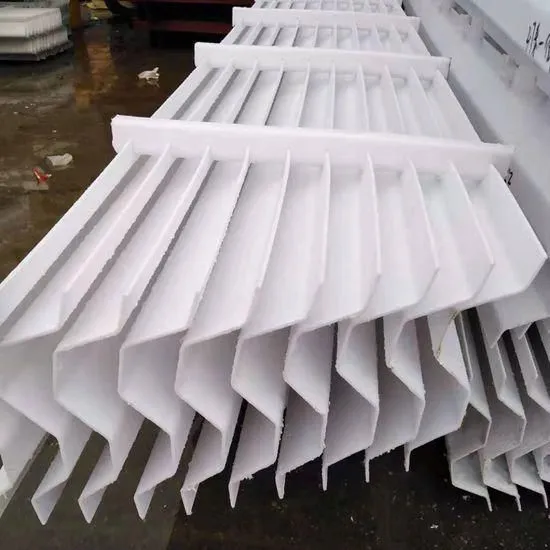

Vane Mist Eliminator for Scrubber and Separation Equipment
DAIER Separation Vane Mist Eliminator is designed for removing liquid droplets from gas streams where high liquid loading and low pressure drop are important.

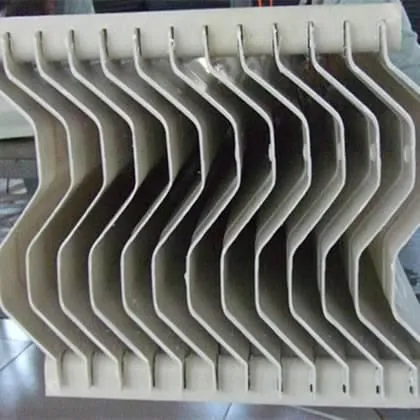

The specially formed blades create repeated changes in gas flow direction. Liquid droplets cannot follow the gas path due to inertia and impact on the blade surface, where they combine and drain away.
Typical Applications
Wet scrubbers
Gas washing towers
Flue gas treatment systems
Chemical absorption towers
Large gas flow separators
Horizontal and vertical separators
RFQ Information
Please provide:
Equipment diameter
Gas flow rate
Liquid loading
Droplet size requirement
Gas composition
Operating temperature
Pressure
Material requirement
Installation direction
Drawing if available
