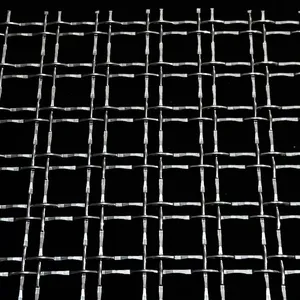

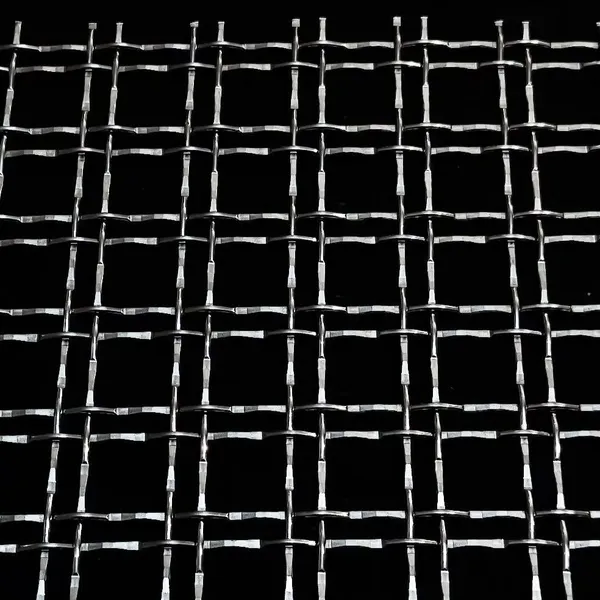

Help CenterEmbossed Screen Mesh 20-200 Mesh, 0.1mm-0.5mm Wire, 304 SS, High Tensile Strength
Product Spotlights
Related Products
-
Heavy Duty Embossed Screen, 4mm Opening, 2mm Wire, Carbon Steel, 1800mmx3600mm PanelNegotiableMOQ: 50 Cubic Centimeters -
Embossed Screen With 0.8mm Thickness, 1.2mm Perforation, 304 Stainless Steel, Anti-CorrosionNegotiableMOQ: 50 Cubic Centimeters
-
Embossed Screen for Oil Filtering, 0.5mm Opening, 316L Stainless Steel, 500mm Diameter DiscNegotiableMOQ: 50 Cubic Centimeters
-
Precision Embossed Screen, 0.3mm Hole, 0.15mm Wire, 316L Stainless Steel, 500x500mmNegotiableMOQ: 50 Cubic Centimeters
-
Embossed Screen for Vibrating Sifter, 2mm Mesh, 304 Stainless Steel, Food Grade, 1.2m x 2.4mNegotiableMOQ: 50 Cubic Centimeters
At Anping Xinye Metal Wire Mesh Products Co., Ltd, located in the heart of Hengshui, Hebei, China, we take pride in manufacturing premium Embossed Screen Mesh that meets the rigorous demands of industrial filtration and screening. Our product range covers 20 to 200 mesh with wire diameters from 0.1mm to 0.5mm, all crafted from high-quality 304 stainless steel. The embossed surface increases rigidity and improves flow characteristics, making it ideal for applications requiring precise separation and high durability.
This mesh is engineered for high tensile strength, ensuring long service life even under heavy loads and continuous vibration. The embossed pattern not only enhances structural integrity but also reduces blinding (clogging) compared to standard flat wire meshes. Whether you need it for mining, chemical processing, food & beverage filtration, or architectural decoration, our embossed screen mesh delivers consistent performance.
Key Features & Technical Specifications
- Material: 304 Stainless Steel – excellent corrosion resistance, suitable for acidic and alkaline environments.
- Mesh Range: 20 to 200 mesh – wide selection to meet various particle size requirements.
- Wire Diameter: 0.1mm–0.5mm – customizable for specific strength and open area needs.
- Embossed Surface: Increases rigidity, reduces stretching, and improves flow efficiency.
- High Tensile Strength: Withstands high pressure and mechanical stress without deformation.
- Uniform Openings: Precision weaving ensures consistent aperture size for accurate screening.
- Easy to Clean: Smooth embossed texture minimizes material buildup.
| Parameter | Specification |
|---|---|
| Mesh Count | 20–200 mesh |
| Wire Diameter | 0.1–0.5 mm |
| Material Grade | 304 Stainless Steel |
| Weave Pattern | Embossed (crimped) plain weave |
| Tensile Strength | High (≥ 800 N/mm² typical) |
| Open Area | 30%–65% (depending on mesh and wire) |
| Roll Width | 0.5m–2.0m (customizable) |
| Roll Length | 10m–30m (or as required) |
Advantages for Your Business
- Improved Filtration Efficiency: The embossed structure creates a slight undulation that prevents particles from passing through, leading to higher separation accuracy.
- Reduced Maintenance: High tensile strength and corrosion resistance mean longer replacement intervals, saving you time and money.
- Versatile Applications: Suitable for vibrating screens, trommel screens, centrifuges, and filter presses in industries such as mining, aggregates, chemicals, pharmaceuticals, and food processing.
- Customizable Options: We can adjust mesh count, wire diameter, and roll dimensions to match your exact specifications – contact us for a tailored solution.
- Durable Construction: 304 stainless steel offers excellent resistance to rust, oxidation, and most chemicals, ensuring reliable performance in harsh environments.
Our embossed screen mesh is manufactured using advanced weaving machinery and undergoes strict quality control to ensure consistent aperture size and uniform tension. Each roll is inspected before shipment to guarantee it meets your requirements.
Trust & Reliability from Anping Xinye
With years of experience in the wire mesh industry, Anping Xinye Metal Wire Mesh Products Co., Ltd has established a reputation for delivering high-quality products on time. Our factory in Hengshui, Hebei, is equipped with modern production lines and a skilled workforce dedicated to excellence. We have served customers across North America, Europe, Southeast Asia, and the Middle East, providing custom solutions for various filtration and screening needs.
Why choose us? We offer competitive pricing, rapid sample delivery, and professional after-sales support. Our team is ready to assist you with technical advice and product selection. Whether you need a small trial roll or a bulk order, we can fulfill your requirements with consistent quality.
Contact us today for a quote or to discuss your specific application. Let our embossed screen mesh improve your production efficiency and product quality.
Frequently Asked Questions (FAQ)
-
What is the difference between embossed screen mesh and standard plain weave mesh?
Embossed screen mesh has a crimped or indented surface that increases rigidity and reduces stretch compared to plain weave. It also provides better flow rate and prevents blinding in sticky materials. -
Can I use this mesh for high-temperature applications?
304 stainless steel can withstand temperatures up to 870°C (1598°F) in intermittent service and 925°C (1697°F) in continuous service. However, for very high-temperature environments, we recommend consulting our team for alternative materials like 316 stainless steel. -
What is the typical tolerance for mesh opening size?
Our mesh is manufactured to industry standards with a tolerance of ±5% for mesh count and ±0.02mm for wire diameter, ensuring consistent screening performance. -
Do you offer custom sizes or cut pieces?
Yes, we can provide custom roll widths, lengths, and even pre-cut panels. Please specify your requirements when placing an order. -
How does embossing affect the open area?
The embossing process slightly reduces the open area compared to a flat wire of the same diameter, but the increase in rigidity and anti-clogging properties often outweighs this trade-off. We can optimize the design for your specific needs. -
Is this mesh suitable for food contact applications?
304 stainless steel is generally considered safe for food contact. However, please confirm with your local regulations. Our mesh can be supplied with a food-grade surface finish upon request. -
What is the minimum order quantity (MOQ)?
We have a flexible MOQ – typically 1 roll for standard sizes. Custom specifications may require a higher MOQ. Contact us for details. -
How long does delivery usually take?
For standard products, delivery is within 7–15 working days after order confirmation. Custom orders may take 15–25 working days depending on complexity.
* All specifications are subject to change without notice. Please confirm with our sales team for the latest information.
