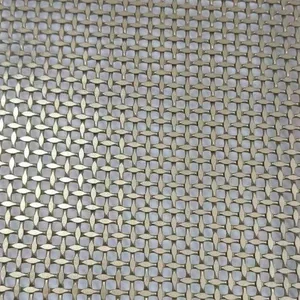

Help CenterEmbossed Screen for Oil Filtration, 0.5mm Opening, 316L Steel, 1 Year Warranty
Product Spotlights
Related Products
-
316L Stainless Steel Embossed Filter Screen, 0.3mm Mesh, 100cm x 50cm, Standard CompliantNegotiableMOQ: 50 Cubic Centimeters -
Embossed Screen With 1-Year Warranty, Technical Support, Free Sample, 0.5mm-5mm OptionsNegotiableMOQ: 50 Cubic Centimeters
-
Architectural Decorative Embossed Screen, 304 Steel, 1.5mm Thick, Custom Size PanelsNegotiableMOQ: 50 Cubic Centimeters
-
Embossed Screen Filter, 100 Mesh, 0.15mm Wire, 304 Stainless Steel, 1500mm Width, Acid and Alkali ResistantNegotiableMOQ: 50 Cubic Centimeters
-
Embossed Screen for Food Processing, 304 Stainless Steel, 0.2mm Mesh, Food Grade ContactNegotiableMOQ: 50 Cubic Centimeters
Welcome to Anping Xinye Metal Wire Mesh Products Co., Ltd, your trusted partner in precision filtration solutions. Based in Hengshui, Hebei, China, we specialize in manufacturing high-quality wire mesh products for industrial applications. Our Embossed Screen for Oil Filtration, 0.5mm Opening, 316L Steel is engineered to deliver exceptional performance in demanding environments. With a 1-year warranty and rigorous quality control, this screen offers reliable filtration with enhanced durability.
This product features a unique embossed surface that increases the screen's strength and prevents clogging, ensuring consistent flow rates even under high pressure. The 0.5mm opening size is carefully calibrated to trap fine particles while allowing efficient oil passage. Made from 316L stainless steel, it offers superior corrosion resistance against acidic oils, solvents, and high temperatures, making it ideal for both petroleum and synthetic oil filtration systems.
| Attribute | Specification |
| Material | 316L Stainless Steel (UNS S31603) |
| Opening Size | 0.5 mm (approx. 35 mesh) |
| Wire Diameter | 0.25 mm (customizable on request) |
| Screen Type | Embossed (raised pattern) |
| Width Range | 0.5 m – 2.5 m (custom) |
| Length Range | 10 m – 100 m (roll form) |
| Operating Temperature | Up to 400°C (752°F) |
| Warranty | 1 Year |
Key Features & Benefits:
- Embossed surface design – reduces particle adhesion and extends cleaning intervals, lowering maintenance costs.
- 0.5mm opening – provides precise filtration of particulates down to 500 microns, suitable for fine oil purification.
- 316L steel construction – resists pitting, crevice corrosion, and chloride stress cracking, even in marine or chemical environments.
- High mechanical strength – withstands pressure differentials up to 5 bar without deformation.
- Customizable dimensions – available in various widths, lengths, and wire diameters to fit your equipment.
- Easy to clean – smooth embossed surface allows backwashing or ultrasonic cleaning with minimal residue.
- Long service life – robust construction backed by a 1-year warranty against manufacturing defects.
Applications:
- Oil filtration in hydraulic systems, lubricating oil circuits, and fuel oil treatment.
- Pre-filtration for edible oil, waste oil recycling, and transformer oil purification.
- Chemical processing where corrosive fluids require stainless steel media.
- Pharmaceutical and food-grade oil filtration (upon request, with surface passivation).
At Anping Xinye Metal Wire Mesh Products Co., Ltd, we have been manufacturing wire mesh since 1998, with a production capacity of over 500,000 square meters per year. Our factory is equipped with advanced weaving looms and strict quality inspection procedures. Each roll of embossed screen is tested for opening size uniformity and tensile strength before shipment. We have supplied filtration screens to clients in Europe, North America, and Southeast Asia, consistently receiving positive feedback on performance and reliability.
We understand that consistent filtration is critical to your operations. That is why we offer flexible customization options – from wire diameter to edge finishing (plain, welded, or folded). Our technical team can assist in selecting the optimal mesh configuration for your specific oil viscosity and flow rate. Contact us today for a quote or sample; we are ready to deliver a solution that meets your exact requirements.
Frequently Asked Questions (FAQ):
- Q: What is the difference between embossed and plain woven screens? A: Embossed screens have a raised pattern that increases surface area and reduces blinding (clogging) compared to flat woven screens. This makes them especially suitable for viscous fluids like oil.
- Q: Can the opening size be made smaller than 0.5mm? A: Yes, we can customize opening sizes from 0.1mm to 2.0mm upon request. Please provide your target particle retention size.
- Q: Is this screen suitable for high-temperature oil filtration? A: Yes, 316L stainless steel can withstand continuous temperatures up to 400°C, making it suitable for most hot oil filtration processes.
- Q: How long does shipping take? A: For standard sizes, production takes 7–10 business days, plus shipping time. Custom orders may require 15–20 days.
- Q: Do you provide free samples? A: We offer small samples (A4 size) for quality evaluation. Shipping cost is covered by the buyer; sample is free.
- Q: What is the maximum width available? A: Our standard looms can produce widths up to 2.5 meters. Larger widths may be available by special order.
- Q: How do I clean the embossed screen? A: Backwashing with compressed air or solvent, or ultrasonic cleaning is recommended. Avoid using abrasive brushes that may damage the embossed pattern.
- Q: Does the warranty cover damage from improper use? A: The 1-year warranty covers manufacturing defects only. Damage from misuse, chemical attack, or physical abuse is not covered. Please consult our technical sheet for proper installation guidelines.
Invest in quality filtration with Anping Xinye. Our embossed screen is built to last, backed by decades of expertise and a commitment to customer satisfaction. Request a quote now and experience the difference of precision-engineered mesh products.
