Home > Construction & Decoration > Wire Mesh > Stainless Steel Wire Mesh > Hook-Banded Composite Screen Mesh for Oil Filtration 304 SS 100 Mesh 0.15mm Wire 1m Width

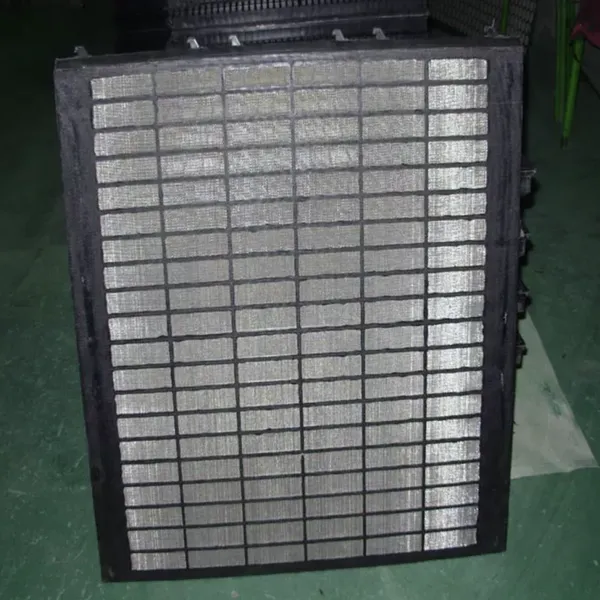

Hook-Banded Composite Screen Mesh for Oil Filtration 304 SS 100 Mesh 0.15mm Wire 1m Width

Hook-Banded Composite Screen Mesh for Oil Filtration 304 SS 100 Mesh 0.15mm Wire 1m Width thumbnail-3

Hook-Banded Composite Screen Mesh for Oil Filtration 304 SS 100 Mesh 0.15mm Wire 1m Width thumbnail-4

Hook-Banded Composite Screen Mesh for Oil Filtration 304 SS 100 Mesh 0.15mm Wire 1m Width thumbnail-5

Hook-Banded Composite Screen Mesh for Oil Filtration 304 SS 100 Mesh 0.15mm Wire 1m Width photo-1

Hook-Banded Composite Screen Mesh for Oil Filtration 304 SS 100 Mesh 0.15mm Wire 1m Width photo-2

Hook-Banded Composite Screen Mesh for Oil Filtration 304 SS 100 Mesh 0.15mm Wire 1m Width photo-3

Hook-Banded Composite Screen Mesh for Oil Filtration 304 SS 100 Mesh 0.15mm Wire 1m Width photo-4

Hook-Banded Composite Screen Mesh for Oil Filtration 304 SS 100 Mesh 0.15mm Wire 1m Width photo-5

Product Spotlights

Hook-banded composite 304 SS screen mesh (100 mesh, 0.15mm wire, 1m width) for oil filtration offers superior durability, precise particle retention, corrosion resistance, and easy installation. Customizable widths and lengths available. Trusted by global clients since 1998.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, 304 Stainless Steel

Application:

Other, Oil Filtration

Mesh Count:

100 Mesh

Contact Supplier Request Quote Chat Now

Anping County Boli Hardware Wiremesh Products Factory

2Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin shanghai qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, 304 Stainless Steel

Application Other, Oil Filtration

Mesh Count 100 Mesh

Wire Diameter 0.15mm

Width 1m (customizable)

Weave Type Hook-Banded Composite

Color Metallic Silver

Packaging Roll or Coil

Elevate Your Oil Filtration Efficiency with Our Premium Hook-Banded Composite Screen Mesh
As a trusted manufacturer since 1998, Anping County Boli Hardware Wiremesh Products Factory specializes in producing high-quality filtration solutions. Our Hook-Banded Composite Screen Mesh for Oil Filtration is engineered from 304 stainless steel, featuring a precise 100 mesh count and 0.15mm wire diameter, with a standard width of 1 meter. This product is designed to deliver exceptional performance in demanding oil filtration applications, ensuring long service life and reliable particle separation. With over two decades of expertise and an annual export value of US$5-10 million, we are your reliable partner for industrial filtration media.

Key Features & Technical Specifications

High-Quality Material: Made from 304 stainless steel, offering excellent corrosion resistance and durability in oil environments.
Precision Mesh: 100 mesh count with 0.15mm wire diameter ensures consistent filtration of particles down to ~150 microns (opening size approx. 0.149mm).
Hook-Banded Construction: Unique composite design provides superior strength and prevents screen distortion under pressure, enhancing filtration stability.
Standard Width: 1 meter width (customizable per request) suitable for various filter frames and equipment.
Easy Installation: Flexible yet sturdy mesh can be cut to size, making it adaptable for different filter housings.
Versatile Application: Ideal for crude oil, lubricating oil, hydraulic oil, and other petroleum-based fluid filtration.

Technical Parameters

Parameter	Specification
Material	304 Stainless Steel
Mesh Count	100 per inch
Wire Diameter	0.15mm (0.006 inch)
Opening Size	Approx. 149 microns
Width	1 meter (customizable)
Weave Type	Hook-Banded Composite
Maximum Temperature	Up to 400°C (depending on application)

Why Choose Our Hook-Banded Composite Screen Mesh?

Superior Durability: The hook-banded construction prevents edge fraying and maintains mesh integrity even under high flow rates and pressure differentials.
Enhanced Filtration Precision: Uniform mesh openings ensure consistent particle retention, reducing downtime for cleaning and replacement.
Cost-Effective Solution: Long service life and low maintenance requirements make this mesh an economical choice for continuous oil filtration processes.
Customizable Options: Available in different widths, lengths, and mesh counts upon request to meet specific filtration requirements.
Global Reach: Exported to North America, South America, Europe, Asia, Africa, and Oceania, our products are trusted by clients worldwide.

Trusted Quality & Reliable Supply

Anping County Boli Hardware Wiremesh Products Factory has been dedicated to wire mesh manufacturing since 1998. With an annual export value of US$5-10 million, we serve diverse industries including oil & gas, chemical, food processing, and water treatment. Our factory is located in Hengshui, Hebei, China, with convenient access to major ports (Tianjin, Qingdao, Shanghai, Foshan) for efficient global shipping. We maintain strict quality control throughout production, from raw material selection to final inspection, ensuring every roll of screen mesh meets your expectations.

Ready to optimize your oil filtration? Contact us today for a quote or free sample. Our experienced team is ready to assist with custom specifications and volume orders. With decades of expertise and a commitment to customer satisfaction, we are your ideal partner in filtration media.

Frequently Asked Questions (FAQ)

Q: What is the exact opening size of 100 mesh with 0.15mm wire?
A: The opening size is approximately 149 microns (0.149mm). The formula is (25.4mm / mesh count) - wire diameter. For 100 mesh with 0.15mm wire, opening = 0.254mm - 0.15mm = 0.104mm? Wait, correct calculation: 25.4/100 = 0.254mm, minus 0.15mm = 0.104mm? Actually, typical opening for 100 mesh with 0.15mm wire is about 104 microns. The exact value may vary slightly due to manufacturing tolerances. Please confirm with our technical team for precise specifications.
Q: Can this mesh be used for high-temperature oil filtration?
A: Yes, 304 stainless steel can withstand up to 400°C (752°F) in oxidizing environments. However, continuous exposure to high temperatures may reduce strength. For extreme conditions, we recommend consulting our engineers.
Q: Is the hook-banded edge available on both sides?
A: Typically, the hook band is applied on one or both edges depending on the application. We can customize the edge treatment to suit your filter frame design.
Q: What is the minimum order quantity (MOQ)?
A: For standard 1m width rolls, MOQ is 10 square meters. Smaller quantities are available for sample testing.
Q: How long does shipping take to North America?
A: Sea freight typically takes 20-40 days depending on the port. We ship from Tianjin, Qingdao, Shanghai, or Foshan. Express delivery (DHL, FedEx) is available for samples.
Q: Can I get a sample before bulk order?
A: Yes, we offer free samples (size A4 or 300mm x 300mm) for evaluation. Customer pays shipping cost.
Q: Is this mesh suitable for water filtration as well?
A: Yes, 304 stainless steel hook-banded mesh can be used for water filtration, but for highly corrosive or acidic fluids, we recommend 316L stainless steel.
Q: How do I clean the mesh after use?
A: Rinse with appropriate solvent or backwash with clean oil. Avoid using abrasive tools that may damage the mesh. Ultrasonic cleaning is also effective.
