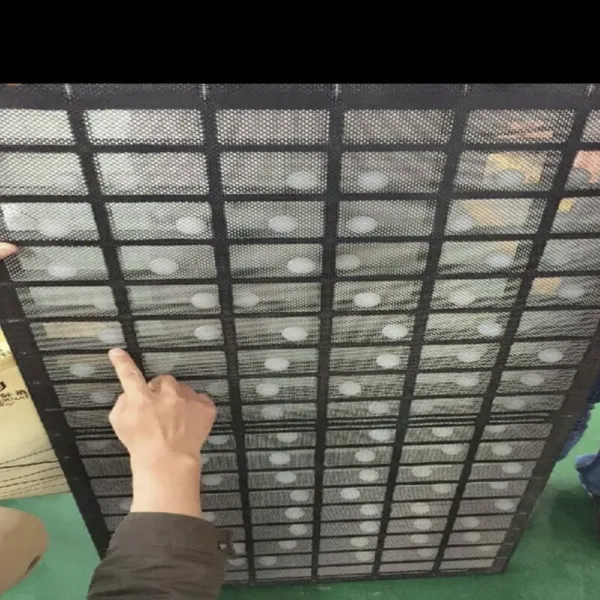

Help Center3-Panel Steel-Framed Drilling Mud Shaker Screen With 1050x700mm Frame
Product Spotlights
Related Products
-
1.5mm Wire Diameter 316L Stainless Steel Steel-Framed Drilling Mud Shaker ScreenNegotiableMOQ: 1 Piece -
1.2m x 1.0m Steel-framed Drilling Mud Shaker Screen Single Layer 50 Mesh API Standard CompliantNegotiableMOQ: 1 Piece
-
Steel-framed Drilling Mud Shaker Screen 20 Mesh Heavy Duty 3.0mm Wire DiameterNegotiableMOQ: 1 Piece
-
Steel-framed Drilling Mud Shaker Screen Provided With Technical Support and Free Replacement PartsNegotiableMOQ: 1 Piece
-
Steel-framed Drilling Mud Shaker Screen Used in Geothermal Well Drilling Mud Recycling SystemNegotiableMOQ: 1 Piece
Welcome to Anping County Boli Hardware Wiremesh Products Factory, a trusted manufacturer established in 1998 with over two decades of expertise in wire mesh and screen products. Our 3-Panel Steel-Framed Drilling Mud Shaker Screen with 1050x700mm Frame is engineered to deliver exceptional performance in solids control systems, ensuring efficient separation of drilling fluids and cuttings. As a factory with annual export value between US$5 million and US$10 million, we pride ourselves on providing reliable, cost-effective solutions for global oil and gas drilling operations. This screen combines robust steel construction with precision-woven mesh, offering you a durable and high-performance component for your shale shaker equipment.
Our steel-framed design uses a three-panel configuration that maximizes screening area while maintaining structural integrity under high-vibration conditions. The 1050x700mm frame size is compatible with many standard shaker models, and the screen is available in various mesh sizes to meet specific separation requirements. Whether you need to handle coarse or fine solids, this product delivers consistent performance, reducing downtime and improving overall drilling efficiency.
Key Features and Technical Specifications
- 3-Panel Design: Three separate panels allow for easy replacement of damaged sections, reducing maintenance costs and waste.
- Steel Frame Construction: Heavy-duty steel frame offers excellent rigidity and vibration resistance, ensuring long service life even in harsh environments.
- High-Quality Stainless Steel Mesh: Woven from premium stainless steel wire, the mesh provides corrosion resistance and precise aperture control.
- 1050x700mm Standard Size: Fits most major shaker brands, including Brandt, Derrick, and Swaco, with optional customization for non-standard frames.
- Customizable Mesh Openings: Available in API 20–325 mesh sizes, or as per your specific cut-point requirements.
- Enhanced Screening Efficiency: Optimized open area percentage allows higher fluid throughput without sacrificing separation quality.
- Easy Installation: Pre-drilled mounting holes and compatible hook strips (optional) simplify installation on existing shaker decks.
| Parameter | Value |
|---|---|
| Frame Material | Carbon steel (powder coated) or galvanized steel (optional) |
| Wire Mesh Material | AISI 304 or 316 stainless steel |
| Overall Dimensions | 1050mm x 700mm x 40mm (thickness) |
| Panel Quantity | 3 panels per screen |
| Mesh Range | API 20, 40, 60, 80, 100, 120, 140, 170, 200, 250, 325 |
| Weight (approx.) | 16 kg (varies by mesh type) |
| Applicable Shaker Types | Linear motion, elliptical motion, and balanced elliptical shakers |
The 3-Panel Steel-Framed Drilling Mud Shaker Screen is designed to provide superior separation of cuttings from drilling fluids, directly impacting your drilling fluid recycling efficiency and overall operational cost. The steel frame ensures that the screen stays flat and taut, preventing premature failure due to sagging or tearing. Each panel is individually tensioned to maintain consistent mesh openings, resulting in a more uniform cut point and better solids removal.
Our manufacturing process includes strict quality control checks at every stage—from wire drawing to weaving, frame welding, and final assembly. We use automated welding equipment to ensure consistent frame strength, and each screen is inspected for dimensional accuracy and mesh integrity before shipment. This attention to detail means you receive a product that performs reliably from the first run to the last.
Benefits to Your Drilling Operation
- Reduced downtime: The durable steel frame and high-quality mesh reduce the frequency of screen changes, keeping your shaker operational longer.
- Lower fluid loss: Precise mesh openings minimize the loss of valuable drilling fluid while effectively removing solids.
- Cost savings: The 3-panel design allows you to replace only the damaged panel instead of the entire screen, lowering replacement costs.
- Compatibility: Standard 1050x700mm size fits most popular shaker models, so you can easily integrate it into your existing equipment.
- Customizable: We offer mesh sizes, frame coatings, and mounting options to match your specific application requirements.
Trust in our experience as a manufacturer since 1998. With annual exports exceeding US$5 million and a global presence across North America, South America, Europe, Southeast Asia, Africa, Oceania, the Middle East, and Asia, we have shipped thousands of screens to satisfied customers worldwide. Our factory is located in Hengshui, Hebei—the wire mesh capital of China—giving us access to the finest raw materials and skilled workers. We ship from major ports including Tianjin, Qingdao, Shanghai, and Foshan, ensuring timely delivery to your site.
We are committed to providing high-quality products at competitive prices. If you have any questions about our 3-panel steel-framed shaker screen or need a custom solution, our technical team is ready to assist you. Contact us today to place an order or request a sample. Let us help you achieve better solids control and more efficient drilling operations.
Frequently Asked Questions
1. What is the typical lifespan of this shaker screen?
The lifespan depends on operating conditions such as vibration frequency, solids load, and fluid properties. Under normal drilling conditions, our screens typically last between 300 to 600 operating hours. Proper maintenance and periodic inspection can extend service life.
2. Can I use this screen on a Brandt or Derrick shaker?
Yes, the 1050x700mm frame size is a common standard that fits many Brandt, Derrick, Swaco, and other major shaker models. We also offer adapter hooks or strips for specific mounting systems. Please provide your shaker model when ordering.
3. Do you offer different mesh sizes for this screen?
Absolutely. We can supply meshes from API 20 up to API 325. The mesh selection depends on the desired cut point and the type of solids you need to remove. Contact our sales team to determine the optimal mesh for your application.
4. What is the advantage of a 3-panel design over a single-piece screen?
The 3-panel design allows for easier handling and replacement. If one panel gets damaged, you only need to replace that panel instead of the entire screen. This reduces waste and maintenance costs. Additionally, the panels are individually tensioned, ensuring consistent performance across the whole screen.
5. Are these screens corrosion-resistant?
Yes, the stainless steel mesh is highly resistant to corrosion from drilling fluids, including water-based and oil-based muds. The steel frame is coated with a corrosion-resistant powder coating or can be galvanized upon request for additional protection.
6. What is the minimum order quantity (MOQ)?
Our standard MOQ is 20 pieces for stock mesh sizes. For custom mesh or special coatings, the MOQ may be higher. We also accept trial orders for small quantities to evaluate the product.
7. How do you ensure the quality of the screens?
We have a dedicated quality control team that inspects every batch. Tests include dimensional checks, mesh opening verification, tensile strength testing, and vibration simulation. Each screen is individually inspected before packing.
8. How long does shipping take to North America?
Shipping time depends on the port of destination. From our main ports (Tianjin, Qingdao, Shanghai), sea freight to North America typically takes 25–35 days. Express air freight is available for urgent orders upon request.
