Help CenterPerforated Metal Mesh for Mining Sieving, 6mm Thick, 100x50mm Slot, Manganese Steel, Wear Resistant
Product Spotlights
Related Products
-
Perforated Metal Panels Factory Direct, Technical Support, Standard Compliant, 3-5 Days DeliveryNegotiableMOQ: 50 Cubic Centimeters -
316 Stainless Steel Perforated Metal Coil, 1.5mm Thickness, 8mm Hole, 5mm Pitch, Marine GradeNegotiableMOQ: 50 Cubic Centimeters
-
Micro Perforated Metal Screen, 0.5mm Thickness, 2mm Hole, 304 SS, for Precision FilteringNegotiableMOQ: 50 Cubic Centimeters
-
304 Stainless Steel Perforated Metal Sheet, 0.5mm-3mm Thickness, 10mm Hole Diameter, Round Hole PatternNegotiableMOQ: 50 Cubic Centimeters
-
Aluminum Perforated Metal Panel, 0.8mm Thickness, 6mm Hole, 45° Staggered Pattern, Lightweight for ConstructionNegotiableMOQ: 50 Cubic Centimeters
Anping Xinye Metal Wire Mesh Products Co., Ltd, based in Hengshui, Hebei, China, is proud to offer our premium Perforated Metal Mesh for Mining Sieving with a thickness of 6mm and 100x50mm slots. Manufactured from high-quality Manganese Steel, this mesh is engineered to withstand the harshest mining environments, delivering exceptional wear resistance and long service life. Our factory has specialized in wire mesh production for years, ensuring every sheet meets stringent quality standards for reliable performance in demanding screening applications.

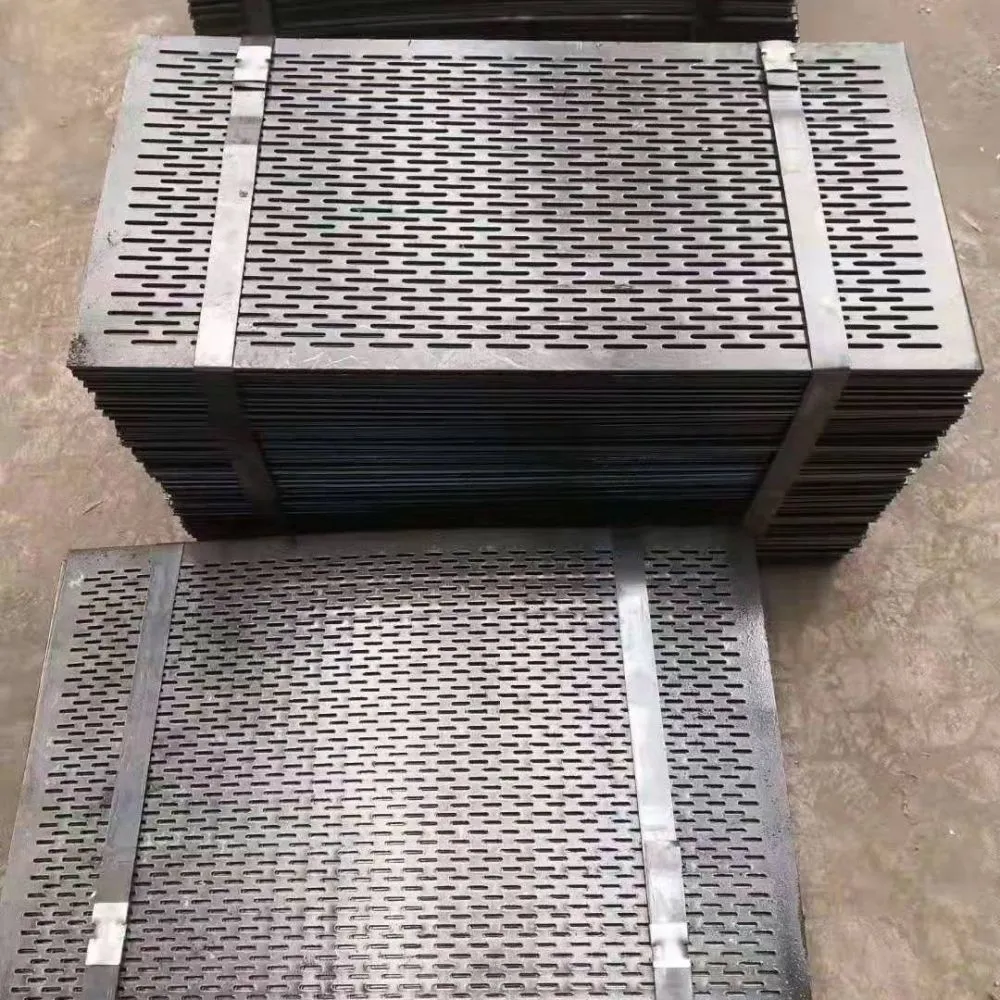

This perforated metal mesh is designed specifically for mining sieving operations, where durability and efficiency are paramount. The 6mm thick manganese steel plate is punched with precise 100x50mm rectangular slots, offering optimal material separation while minimizing clogging. Whether you are screening ores, aggregates, or recycled materials, this mesh provides consistent throughput and reduced downtime.
Key Features & Technical Specifications
- Material: Manganese Steel – known for its high impact strength and work-hardening ability, making it ideal for abrasive mining conditions.
- Thickness: 6mm – robust construction that resists deformation under heavy loads.
- Slot Configuration: 100mm x 50mm rectangular openings – optimized for efficient screening of medium to large particles.
- Wear Resistance: Significantly extends service life compared to ordinary carbon steel meshes.
- Customizable: Available in different sizes, slot shapes, and edge preparations upon request.
- Easy Installation: Can be cut, welded, or bolted to fit existing screening equipment.
| Parameter | Value |
| Material Grade | Manganese Steel (e.g., 13Mn, optional) |
| Thickness | 6 mm |
| Slot Size (L x W) | 100 mm x 50 mm |
| Open Area | Approx. 40-50% (depends on hole pattern) |
| Surface Finish | Natural mill finish, optional painting |
| Standard Sheet Size | Customizable (e.g., 2400x1200mm) |
Advantages for Your Mining Operations
- Reduced Maintenance: The wear-resistant manganese steel minimizes the need for frequent replacements, saving you time and labor costs.
- High Efficiency: The 100x50mm slot design provides excellent material flow, preventing blinding and ensuring consistent screening performance.
- Heavy-Duty Durability: With a 6mm thickness, the mesh withstands impact from large rocks and heavy ore loads without cracking or breaking.
- Versatility: Suitable for a variety of mining applications including vibrating screens, trommel screens, and static grizzlies.
- Cost-Effective: Longer lifespan and lower replacement frequency lead to a lower total cost of ownership.
Our factory in Hengshui, Hebei, China, has been a trusted manufacturer of metal wire mesh products for many years. We employ advanced punching and heat-treatment processes to ensure consistent quality and dimensional accuracy. Every batch of manganese steel mesh undergoes strict inspection to guarantee that it meets your specifications.
We understand that mining environments vary, which is why we offer customization options – from different slot shapes (square, round, hexagonal) to specific sheet dimensions and edge reinforcements. Our experienced team is ready to assist you in selecting the right configuration for your equipment.
Frequently Asked Questions (FAQ)
1. What is the typical lifespan of this manganese steel mesh?
The lifespan depends on the abrasiveness of the material being screened and operating conditions. In typical mining applications, it can last 2-3 times longer than standard carbon steel meshes. Regular inspection is recommended to maximize service life.
2. Can the mesh be customized to different slot sizes?
Yes, we offer customization. Slot sizes, shapes, and patterns can be adjusted to meet your specific screening requirements. Please contact us with your desired dimensions.
3. Is this mesh suitable for high-temperature environments?
Manganese steel retains good strength at elevated temperatures, but for extreme heat (above 400°C), we recommend consulting our technical team for alternative materials.
4. How is the mesh packaged for export?
We package the perforated sheets in bundles with wooden pallets, steel straps, and waterproof wrapping to prevent damage during transit. Custom packaging is also available.
5. Do you provide samples for testing?
Yes, we can provide small sample pieces for evaluation. Please contact our sales team to discuss sample availability and shipping costs.
6. Can the mesh be welded or bolted to existing screen frames?
Absolutely. The mesh can be cut, welded, or bolted easily. We also offer pre-fabricated screen panels with hook strips or flanges upon request.
7. What is the minimum order quantity (MOQ)?
Our MOQ is typically 10 sheets, but we can accommodate smaller orders for trial purposes. Please inquire for details.
8. How does manganese steel compare to other wear-resistant materials?
Manganese steel offers excellent work-hardening properties – it becomes harder under impact, making it ideal for high-abrasion applications. It is more cost-effective than some specialty alloys while providing superior toughness.
With years of experience in wire mesh manufacturing, Anping Xinye Metal Wire Mesh Products Co., Ltd is committed to delivering products that enhance your mining productivity. Our factory in Hengshui, Hebei, combines traditional craftsmanship with modern production techniques to ensure consistent quality. We invite you to contact us today for a quote or to discuss your specific screening needs. Choose our perforated metal mesh for a reliable, long-lasting solution that keeps your operations running smoothly.
