As a leading manufacturer from Hengshui Ruibin New Materials LLC (established 2019, factory size 1,000–3,000 sqm, annual export US$2.5M–US$5M, 101–200 employees), we proudly present our Heavy-Duty Fiberglass Cable Ladder — a robust, corrosion-resistant, and lightweight solution designed for large-scale infrastructure cable support. Our product is engineered to withstand extreme environmental conditions while providing reliable, long-term performance for industries such as power generation, petrochemical, transportation, and telecommunications. With ISO9001 and ISO9000 certifications, we ensure every ladder meets rigorous quality standards.

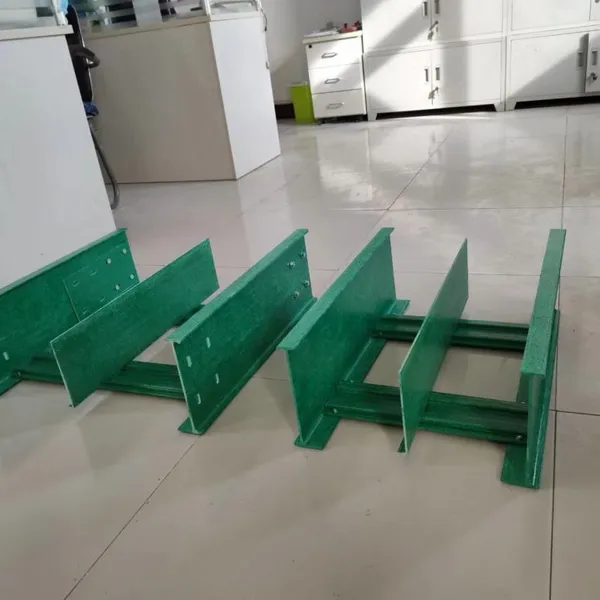

This cable ladder is manufactured using high-quality fiberglass reinforced plastic (FRP) through a pultrusion process, offering exceptional strength-to-weight ratio, superior electrical insulation, and excellent resistance to chemicals, moisture, and UV radiation. The heavy-duty design features reinforced side rails and rungs, ensuring safe support for heavy cable bundles in demanding applications like tunnels, power plants, offshore platforms, and industrial plants.
Key Features & Benefits
- Heavy Load Capacity: Engineered to support up to 150 kg/m (or higher upon request), suitable for large cable trays and high-density installations.
- Corrosion & Chemical Resistance: Ideal for harsh environments including coastal areas, chemical plants, and wastewater treatment facilities.
- Fire Retardant: Self-extinguishing material (Class B1) meets safety requirements for indoor and outdoor use.
- Lightweight & Easy Installation: Approximately 70% lighter than steel, reducing labor costs and structural load.
- Non-Conductive & Non-Magnetic: Provides electrical safety and prevents interference with sensitive equipment.
- UV Resistant: Special additives ensure long-term outdoor durability without degradation.
- Customizable Dimensions: Available in various widths (200–800 mm), lengths (3/4/6 m), and colors (yellow, orange, gray, or custom).
- Low Maintenance: No need for painting or galvanizing; resistant to rust and rot.
Technical Specifications
| Material | Fiberglass Reinforced Plastic (FRP) – polyurethane or vinyl ester resin |
| Standard Length | 3 m, 4 m, 6 m (custom lengths available) |
| Width Options | 200 mm, 300 mm, 400 mm, 600 mm, 800 mm (or custom) |
| Rung Height | 100 mm, 150 mm, 200 mm |
| Load Capacity | Up to 150 kg/m (tested per IEC 61537 standard) |
| Fire Rating | Class B1 (self-extinguishing) – optional V0 (upon request) |
| Operating Temperature | -40°C to +120°C (continuous) |
| Certification | ISO9001:2015, ISO9000 |
Our heavy-duty fiberglass cable ladder is designed to simplify cable management in large-scale infrastructure projects. The open ladder structure allows for easy cable installation, inspection, and future modifications. Its high strength-to-weight ratio reduces the need for heavy support structures, and the non-conductive nature eliminates the risk of electrical faults. Compared to traditional steel or aluminum ladders, our FRP solution offers superior durability in corrosive environments, with a service life exceeding 20 years under normal conditions.
Frequently Asked Questions (FAQ)
-
Q: What is the maximum load capacity of your cable ladder?
A: The standard load capacity is up to 150 kg/m. For higher loads, we can customize the design with reinforced rungs and side rails – please contact us with your specific requirements. -
Q: Can this product be used outdoors in direct sunlight?
A: Yes, our fiberglass cable ladder contains UV stabilizers that prevent degradation from prolonged sun exposure. It is suitable for both indoor and outdoor installations. -
Q: Is the cable ladder fire-resistant?
A: Yes, it meets Class B1 fire rating (self-extinguishing). For projects requiring higher fire safety, we can provide V0-rated material upon request. -
Q: How does the installation process compare to steel cable ladders?
A: Installation is easier and faster because FRP is about 70% lighter than steel. Standard mounting brackets and accessories are available. We can also provide custom cutting and drilling services. -
Q: What colors are available?
A: Standard colors are yellow, orange, and gray. Custom colors can be produced for large orders (minimum 500 meters). -
Q: Do you provide samples before mass production?
A: Yes, we offer free samples for quality evaluation. You only need to cover the shipping cost. Samples are usually 300 mm long. -
Q: What is the typical lead time and shipping ports?
A: Lead time is 15–30 days depending on quantity and customization. We ship from Port of Tianjin or Port of Qingdao. We have experience exporting to all major markets worldwide. -
Q: Is the product certified for international standards?
A: Our factory is ISO9001 and ISO9000 certified. The cable ladder is manufactured in accordance with IEC 61537 and can be tested to meet other standards if required.

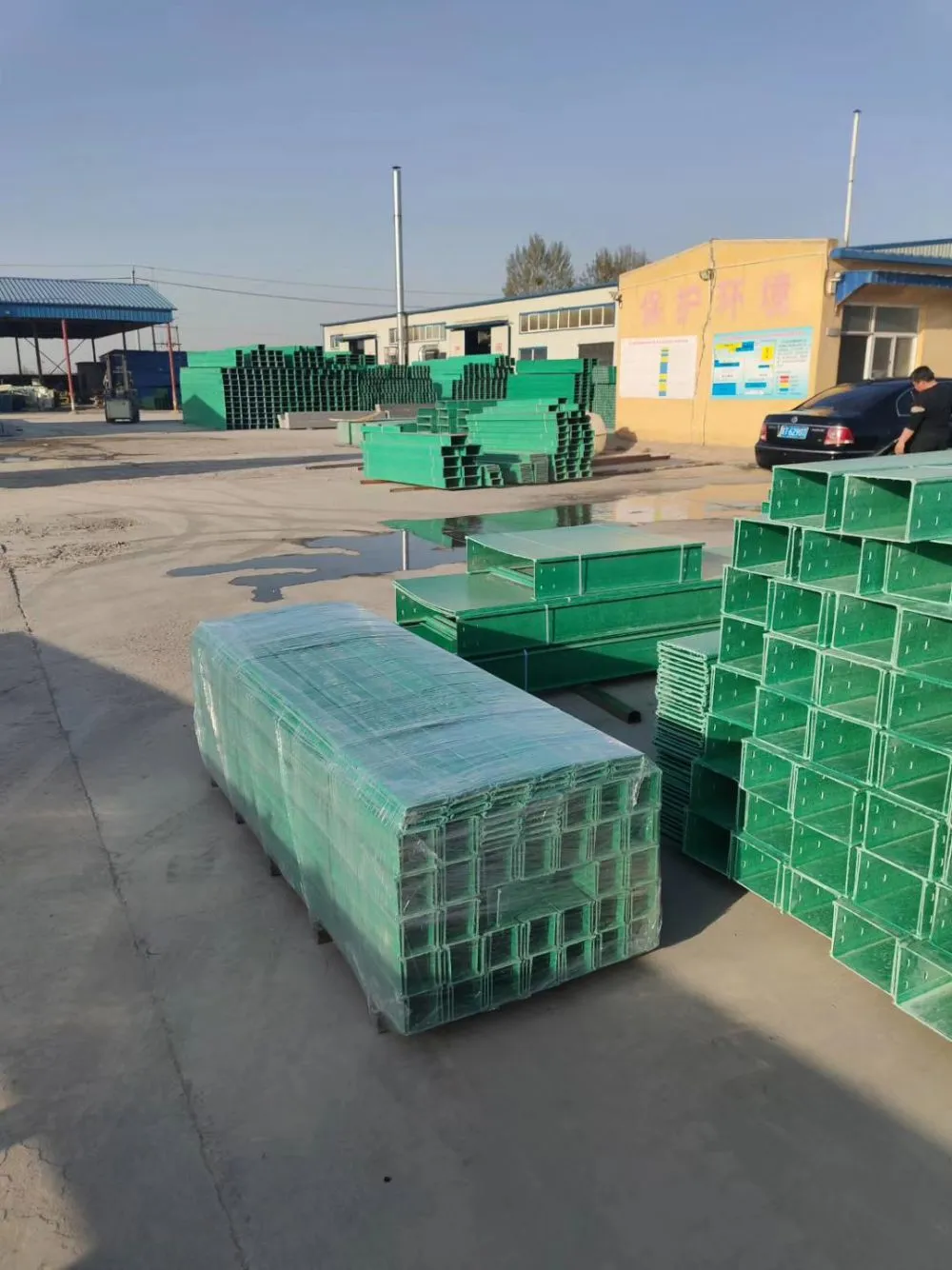

Since 2019, Hengshui Ruibin New Materials LLC has been a trusted manufacturer serving customers across North America, South America, Europe, Asia, Africa, and Oceania. With an annual export value of US$2.5M–US$5M and a dedicated team of 101–200 skilled employees, we ensure consistent quality, timely delivery, and competitive pricing. Our factory, spanning 1,000–3,000 square meters, is equipped with advanced pultrusion lines and testing facilities. We invite you to experience the reliability of our heavy-duty fiberglass cable ladder for your next infrastructure project. Contact us today for a quote or technical consultation.
