Product Overview

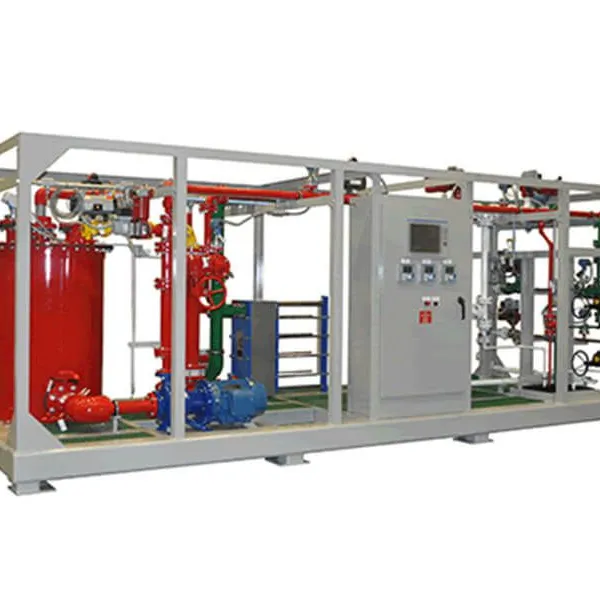

This electrolytic high concentration sodium hypochlorite generator is a skid-mounted on-site disinfection unit, designed to produce stable high-strength NaClO liquid directly from salt water without purchasing, transporting or storing bulk hazardous hypochlorite chemicals. The finished hypochlorite liquid typically reaches 8%–14% available chlorine, serving as reliable oxidant and biocide for industrial disinfection, bleaching, microorganism and biofilm suppression. The whole package includes electrolysis stack, automatic dosing and control assembly, brine preparation unit and waste gas absorption module, built for continuous stable operation under heavy-duty industrial conditions.
Technical Principle
The system adopts saturated brine electrolysis technology. Saturated salt solution is delivered into the membrane electrolytic cell. Under controlled DC power supply, electrochemical reaction occurs inside the cell: chloride ions are oxidized at the anode to generate chlorine, which then reacts with sodium hydroxide generated at the cathode to form high concentration sodium hypochlorite. Online sensors monitor liquid temperature, pH and available chlorine concentration in real time, adjusting brine feed rate and electrolysis current automatically to keep NaClO concentration steady and avoid excessive byproduct generation. Tail gas generated during electrolysis is captured and neutralized inside the absorption tower to meet emission standards.
Main Features
Skid integrated layout, compact footprint, easy field installation and commissioning
Closed electrolysis and tail gas neutralization design, low on-site chemical risk
Continuous online monitoring of available chlorine, auto-adjust electrolysis parameters
Support 24h unattended running, fault alarm and automatic shutdown protection
Simple brine feeding mode, only industrial salt and softened water as raw materials
Modular structure, convenient maintenance and quick replacement of core electrolysis components
Core Advantages
Compared with purchasing commercial high concentration sodium hypochlorite liquid, on-site generation cuts transportation cost and avoids concentration attenuation during storage. The closed circulation design lowers manual contact with corrosive chemical fluid, improving site safety. Intelligent control reduces manual intervention and stabilizes disinfection effect without frequent manual testing. The unit can match variable water flow and disinfection load, flexible for fluctuating working conditions. Long service life of electrolytic plates reduces long-run replacement expense for plant owners.
Core Components
Membrane electrolysis stack (titanium substrate with precious metal coating)
Brine dissolving & feeding system, soft water pretreatment assembly
DC stabilized power supply with current automatic regulation
Online ORP, pH and available chlorine monitoring sensors
Tail gas absorption & neutralization tower
PLC control cabinet, touch screen and safety interlock protection parts
Application Fields
Industrial wastewater disinfection, pathogen and organic pollutant oxidation treatment
Food and beverage factory workshop sanitation, CIP pipeline bleaching and sterilization
Mining underground water treatment, eliminating sulfate-reducing bacteria and slime
Industrial circulating cooling tower algae suppression, biofilm and Legionella control
Large-scale aquaculture water disinfection, reducing harmful pathogens
Sewage plant effluent disinfection, replacing bulk purchased hypochlorite dosing
