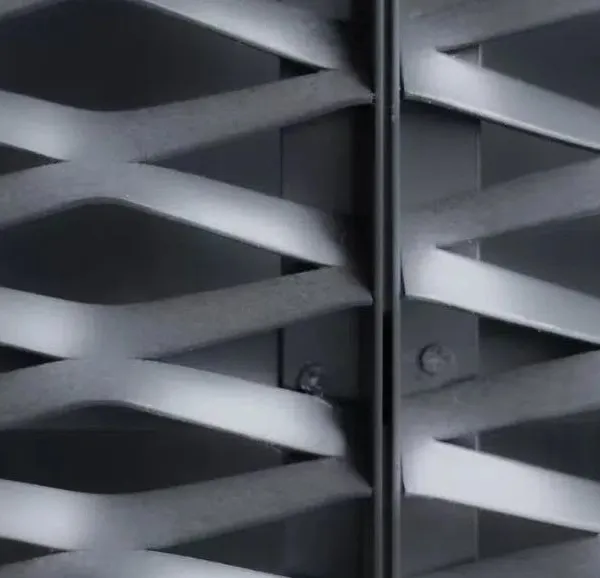

Help CenterGalvanized Expanded Metal, 2.0mm Strand Width, 12x6mm Diamond Mesh, 60% Open Area, 8x4ft Panel, for Industrial Use
Product Spotlights
Related Products
-
Carbon Steel Expanded Metal, 1.5mm Base, 3/4" x 1.5" Diamond, 4x10ft, Heavy Duty, 60% Open Area, Welded EdgesNegotiableMOQ: 50 Cubic Centimeters -
Expanded Metal Security Mesh for Building Facade, 304 Stainless, 3mm Thick, 4x8ft, Anti-Climb, DurableNegotiableMOQ: 50 Cubic Centimeters
-
Expanded Metal Filter Mesh for Industrial Filtration, 316L Stainless, 0.5mm Opening, 2x1m, High Strength, Corrosion ResistantNegotiableMOQ: 50 Cubic Centimeters
-
0.5mm Thick 304 Stainless Steel Expanded Metal Mesh, 1/2" Diamond Opening, 4x8ft SheetNegotiableMOQ: 50 Cubic Centimeters
-
Expanded Metal Mesh With Technical Support, 2-Year Warranty, 304 Stainless, 3mm Thick, 12x6mm Diamond, Custom Sizes AcceptedNegotiableMOQ: 50 Cubic Centimeters
Welcome to Anping Xinye Metal Wire Mesh Products Co., Ltd, your trusted manufacturer of high-quality expanded metal solutions. Based in Hengshui, Hebei, China, we specialize in producing durable and versatile galvanized expanded metal panels that meet the demands of industrial applications. Our Galvanized Expanded Metal, 2.0mm Strand Width, 12x6mm Diamond Mesh, 60% Open Area, 8x4ft Panel is engineered for strength, airflow, and visibility, making it an ideal choice for industrial flooring, walkways, machine guards, and filtration systems.
This product combines a robust galvanized coating with a precise diamond mesh pattern, offering excellent corrosion resistance and structural integrity. The 2.0mm strand width ensures a sturdy yet lightweight panel, while the 12x6mm diamond opening provides a balanced 60% open area for optimal ventilation and drainage. Each panel measures 8x4 feet (2440x1220mm), conforming to standard industrial sizing for easy installation and integration.
Whether you need to reinforce walkways, create safety barriers, or design custom filtration screens, our expanded metal delivers consistent performance. Let's explore the detailed specifications and benefits below.
Key Features & Technical Specifications
- Material: High-quality galvanized steel (Q195/Q235) with hot-dip galvanized surface treatment, ensuring long-lasting protection against rust and corrosion.
- Strand Width: 2.0mm – provides a balance between strength and flexibility, suitable for moderate load-bearing applications.
- Mesh Pattern: Diamond-shaped openings (12mm x 6mm) – delivers 60% open area for efficient airflow, light transmission, and liquid drainage.
- Panel Size: 8ft x 4ft (2440mm x 1220mm) – standard industrial dimensions, easily cuttable to custom sizes.
- Open Area: 60% – optimized for ventilation, visibility, and weight reduction without compromising structural integrity.
- Thickness (Strand): 2.0mm – actual strand thickness; the overall sheet thickness is approximately 2.0mm due to the expansion process.
- Weight: Approximately 8.5 kg per panel (varies slightly by batch) – lightweight for easy handling and installation.
- Applications: Industrial walkways, safety gratings, machine guards, security screens, filtration media, ventilation grilles, architectural cladding, and more.
| Parameter | Value |
|---|---|
| Strand Width | 2.0mm |
| Mesh Opening (L x W) | 12mm x 6mm |
| Open Area | 60% |
| Panel Dimensions | 8ft x 4ft (2440mm x 1220mm) |
| Surface Coating | Hot-dip galvanized (Zn coating) |
| Weight per Panel | ~8.5 kg |
| Load Capacity (typical) | Suitable for light-to-medium industrial loads (consult engineering for specific use) |
Advantages & Customer Benefits
Our galvanized expanded metal offers several advantages over traditional solid sheet or perforated metal:
- Cost-Effective: The expansion process uses less material than solid metal, reducing weight and cost while maintaining strength.
- Anti-Slip Surface: The diamond pattern provides natural traction, making it ideal for walkways and work platforms.
- Easy Installation: Lightweight panels can be cut, welded, or fastened with standard tools, saving labor time.
- Corrosion Resistance: The galvanized coating protects against moisture, chemicals, and outdoor environments, extending service life.
- Versatile Open Area: 60% open area allows efficient airflow, light passage, and liquid drainage, perfect for ventilation and filtration.
- Customizable: Panels can be cut to size, shaped, or further processed (e.g., bending, welding) to meet specific project requirements.
Frequently Asked Questions (FAQ)
-
Q: What is the difference between strand width and sheet thickness?
A: Strand width refers to the width of the metal strand after expansion. For this product, the strand width is 2.0mm, which is also the effective thickness of the expanded mesh. The overall sheet thickness is approximately the same as the strand width because the material is expanded from a solid sheet. -
Q: Can this expanded metal be used for outdoor applications?
A: Yes, the hot-dip galvanized coating provides excellent corrosion resistance, making it suitable for outdoor use, including fences, walkways, and security screens. However, prolonged exposure to harsh chemicals may require additional protection. -
Q: How do I cut the panel to a custom size?
A: The panel can be cut using standard metal cutting tools such as angle grinders, tin snips, or plasma cutters. We recommend wearing appropriate safety gear and cutting along the diamond pattern for clean edges. -
Q: What is the load-bearing capacity of this panel?
A: The load capacity depends on the support structure and application. As a general guideline, 2.0mm strand width expanded metal with 12x6mm mesh can withstand light-to-medium pedestrian traffic and light machinery. For heavy-duty loads, we recommend consulting our engineering team or selecting a thicker strand option. -
Q: Is the open area exactly 60%?
A: Yes, the 60% open area is a calculated value based on the diamond mesh dimensions. Actual open area may vary slightly (within ±2%) due to manufacturing tolerances. -
Q: Can I order a sample before purchasing in bulk?
A: Absolutely. We offer sample panels (subject to availability) for evaluation. Please contact our sales team to request a sample and discuss your specific needs. -
Q: What is the minimum order quantity (MOQ)?
A: Our MOQ for standard panels is 10 pieces. For custom sizes or special requirements, MOQ may vary. Contact us for details. -
Q: How long does delivery take?
A: For standard stocked panels, we typically ship within 7-10 working days. For custom orders, production lead time is 15-20 working days. Shipping time depends on destination and method.
At Anping Xinye Metal Wire Mesh Products Co., Ltd, we are committed to delivering reliable products backed by years of manufacturing experience. Based in Hengshui, Hebei – the wire mesh capital of China – we have served clients worldwide with consistent quality and competitive pricing. Our expanded metal panels undergo strict quality control checks, including dimensional accuracy, coating uniformity, and tensile strength tests. We have exported to over 30 countries, and our customer feedback confirms the durability and performance of our products.
Choose our Galvanized Expanded Metal, 2.0mm Strand Width, 12x6mm Diamond Mesh, 60% Open Area, 8x4ft Panel for your next industrial project. Whether you need a single panel or a bulk order, we are ready to support you with fast shipment, custom cutting options, and professional advice. Contact us today for a quote or to discuss your specific requirements.
