Help CenterKA030XP0 Thin Section Four Point Contact Ball Bearing With Size 3×3.5×0.25inch
Product Spotlights
2. radial, bidirectional‑axial and overturning‑moment loads
3. high rotary accuracy and low torque fluctuation
4. open‑type design with good heat dissipation, widely used in robot joints, opto‑electronic turntables, semiconductor equipment, medical machinery and aerospace systems。
Related Products
-
KA035XP0 Thin Section Four Point Contact Ball Bearing With Size 3.5×4×0.25inchNegotiableMOQ: 1 Combo -
KA040XP0 Thin Section Four Point Contact Ball Bearing With Size 4×4.5×0.25inchNegotiableMOQ: 1 Combo
-
KA042XP0 Thin Section Four Point Contact Ball Bearing With Size 4.25×4.75×0.25inchNegotiableMOQ: 1 Combo
-
KA045XP0 Thin Section Four Point Contact Ball Bearing With Size 4.5×5×0.25inchNegotiableMOQ: 1 Combo
-
KA047XP0 Thin Section Four Point Contact Ball Bearing With Size 4.75×5.25×0.25inchNegotiableMOQ: 1 Combo
KA Series Thin Section Ball Bearing Four Point Contact X-type
Product Overview:
KA‑X series is imperial‑standard Open‑type Constant Cross‑Section Four‑Point‑Contact Ball Bearing (Type‑X) from Kaydon Reali‑Slim portfolio, with fixed square cross‑section of 6.35mm (0.250inch), open‑type without seals. Adopting gothic‑arch raceway (Type‑X four‑point‑contact) geometry, one single bearing can accommodate radial load, bidirectional axial thrust and overturning‑moment simultaneously. It can directly replace two duplex angular‑contact bearings, reducing part count, saving axial installation envelope and simplifying mechanical layout.
Cross‑section dimension keeps constant regardless of bore‑size increase, realizing large‑bore, thin‑wall and lightweight construction. AR0 solid brass cage is standard; AG0 glass‑fiber reinforced nylon cage is available as special option. Compared with KAA‑X series, larger‑size rolling elements deliver improved load‑carrying and anti‑tilting capacity. Suitable for medium‑load precision rotary applications with combined loads and compact‑space constraints. Standard bore ranges from 2‑20 inches, widely applied in robot joints, opto‑electronic turntables, semiconductor equipment, medical machinery and aerospace systems.
Applications:
medium‑small robot joints
opto‑electronic tracking turntables
medium‑load radar rotary mechanisms
semiconductor inspection turntables
precision medical rotary equipment
medium‑load aerospace rotary assemblies
optical precision indexing mechanisms
precision test fixtures
automated rotary platforms.

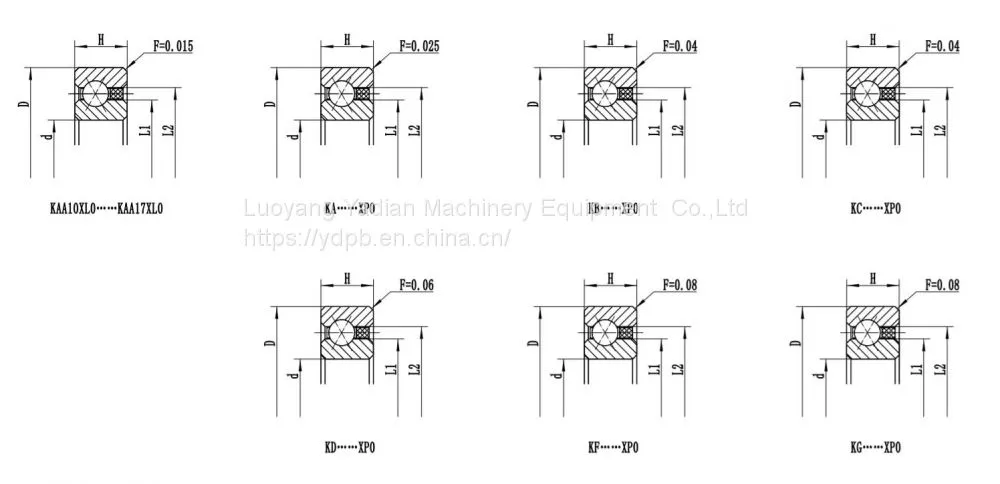

Parameter：
| Item No. | Dimension | Basic Cap | Unit | ||||
| ( inch / mm ) |
( N ) | weight | |||||
| d | D | Cor | Cr | Coa |
Ca | Kg | |
| KA020XP0 | 2.0 | 2.5 | 1650 | 1420 | 7600 | 3510 | 0.048 |
| 50.8 | 63.5 | ||||||
| KA025XP0 | 2.5 | 3.0 | 3690 | 1600 | 9290 | 4050 | 0.059 |
| 63.5 | 76.2 | ||||||
| KA030XP0 | 3.0 | 3.5 | 4400 | 1820 | 10980 | 4490 | 0.068 |
| 76.2 | 88.9 | ||||||
| KA035XP0 | 3.5 | 4.0 | 5070 | 2000 | 12670 | 4930 | 0.082 |
| 88.9 | 101.6 | ||||||
| KA040XP0 | 4.0 | 4.5 | 5730 | 2130 | 14310 | 5380 | 0.09 |
| 101.6 | 114.3 | ||||||
| KA042XP0 | 4.25 | 4.75 | 6090 | 2220 | 15160 | 5600 | 0.095 |
| 107.95 | 120.65 | ||||||
| KA045XP0 | 4.5 | 5.0 | 6400 | 2310 | 16000 | 5820 | 0.1 |
| 114.3 | 127.0 | ||||||
| KA047XP0 | 4.75 | 5.25 | 6760 | 2400 | 16850 | 6000 | 0.104 |
| 120.65 | 133.35 | ||||||
| KA050XP0 | 5.0 | 5.5 | 7070 | 2490 | 17690 | 6220 | 0.109 |
| 127.0 | 139.7 | ||||||
| KA055XP0 | 5.5 | 6.0 | 7780 | 2620 | 19380 | 6580 | 0.118 |
| 139.7 | 152.4 | ||||||
| KA060XP0 |
6.0 | 6.5 | 8450 | 2800 | 21070 | 6980 | 0.13 |
| 152.4 | 165.1 | ||||||
If you have need ,welcome to customize according to your drawings or samples.
