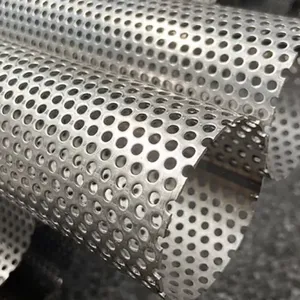

Help CenterSkeleton Core Filter Cartridge for Oil and Gas Filtration With High Dirt Holding Capacity
Product Spotlights
Related Products
-
Skeleton Core Filter Cartridge 1.5 Micron With 304 Stainless Steel Center Tube for Water FiltrationNegotiableMOQ: 1 Piece -
Polypropylene Skeleton Core Filter Cartridge Outer Diameter 60mm Length 250mm 5 Micron NominalNegotiableMOQ: 1 Piece
-
Stainless Steel Helically Perforated Tube Used in Acoustic Silencer Noise Reduction 304 GradeNegotiableMOQ: 1 Piece
-
ASME Standard Stainless Steel Helically Perforated Tube 220V Welded 5mm Hole 12mm GapNegotiableMOQ: 1 Piece
-
Stainless Steel Helically Perforated Tube 1 Year Warranty 304 Material With Mill Test CertificateNegotiableMOQ: 1 Piece
As a leading manufacturer based in Hengshui, Hebei, China, Anping County Boli Hardware Wiremesh Products Factory has been dedicated to producing high-quality filtration solutions since 1998. Our Skeleton Core Filter Cartridge for Oil and Gas Filtration with High Dirt Holding Capacity is designed to meet the rigorous demands of the oil and gas industry. With an annual export value of US$5–10 million, we serve global markets including North America, South America, Eastern Europe, Southeast Asia, and beyond. This product combines robust construction with exceptional filtration performance, ensuring reliable operation in harsh environments while maximizing dirt holding capacity for extended service life.
Our skeleton core design provides superior structural integrity, preventing collapse under high differential pressure. The cartridge is engineered with a deep pleat configuration that increases effective filtration area, allowing it to capture more contaminants before requiring replacement. This translates to fewer changeouts, reduced downtime, and lower operational costs for your facility. Whether used in upstream, midstream, or downstream applications, this cartridge delivers consistent filtration efficiency.
Key Features and Benefits
- High Dirt Holding Capacity: Deep pleat design and optimized media layering allow for up to 50% more dirt holding capacity compared to standard cartridges, reducing replacement frequency.
- Skeleton Core Reinforcement: Perforated stainless steel or polypropylene core provides excellent mechanical strength, preventing deformation even under high flow rates and pressure surges.
- Wide Chemical Compatibility: Available in multiple materials (PP, SS, PTFE) to suit various fluid types, including hydrocarbons, brine, and corrosive chemicals.
- Customizable Specifications: Length, outer diameter, micron rating, end cap types, and seal materials can be tailored to your specific equipment and process requirements.
- Low Pressure Drop: Optimized pleat geometry minimizes flow resistance, reducing energy consumption in your filtration system.
- Easy Installation: Standard end cap configurations (flat, open, spear) ensure compatibility with most housings in the oil and gas industry.
Technical Specifications
| Parameter | Details |
| Filtration Media | Polypropylene meltblown, glass fiber, stainless steel mesh, or PTFE membrane |
| Micron Ratings | 1, 5, 10, 20, 50, 100 μm (customizable) |
| Length Options | 10", 20", 30", 40", 50" (custom lengths available) |
| Outer Diameter | 2.5", 4.5", 6.0" (custom diameters up to 8") |
| Core Material | 304/316L stainless steel, polypropylene, or carbon steel (coated) |
| Maximum Operating Temperature | 80°C (PP media), 150°C (glass fiber), 200°C (stainless steel mesh) |
| Maximum Differential Pressure | 2.0 MPa (for reinforced core) |
| Seal Materials | Buna-N, EPDM, Viton, Silicone, PTFE encapsulated |
Applications in Oil and Gas Industry
- Upstream: Wellhead water injection, produced water filtration, sand control.
- Midstream: Pipeline natural gas filtration, crude oil conditioning, glycol dehydration.
- Downstream: Refinery catalyst protection, hydrotreating unit prefilters, amine system filtration.
- Other Fluids: Chemical injection, hydraulic oil, lubricating oil, and cooling water.
With over 25 years of manufacturing experience, Anping County Boli Hardware Wiremesh Products Factory has exported to more than 10 major markets globally, including North America, Europe, and Southeast Asia. Our annual export value of US$5–10 million reflects the trust and satisfaction of our worldwide customers. We ship from major Chinese ports such as Tianjin, Qingdao, Shanghai, and Foshan, ensuring timely delivery for your projects.
Every filter cartridge undergoes strict quality control, including pressure testing, burst strength testing, and filtration efficiency verification. Our team of experienced engineers can assist with custom designs to meet your specific process conditions. We are committed to providing cost-effective solutions without compromising on performance.
Choose Boli Wiremesh as your reliable partner for oil and gas filtration. Contact us today for a quote or sample request. Let our high dirt holding capacity skeleton core filter cartridges optimize your filtration system and reduce your total cost of ownership.
Frequently Asked Questions
-
What is the typical lifespan of the skeleton core filter cartridge?
Lifespan depends on operating conditions and contaminant load. However, with high dirt holding capacity, it often lasts 2–3 times longer than standard cartridges in similar applications. Please consult our technical team for specific estimates. -
Can this cartridge be used for high-temperature applications?
Yes, depending on the media and core material. For temperatures up to 200°C, we recommend stainless steel mesh media with a stainless steel core. For lower temperatures (≤80°C), polypropylene media is suitable. -
What end cap types are available?
We offer flat, open, spear, bayonet, and DOE (double open end) configurations. Custom end caps can be designed to match your housing. -
Is the product compatible with aggressive chemicals like H2S or amines?
Yes, we can provide PTFE membrane or stainless steel media with appropriate seals (Viton or PTFE) to resist chemical attack. Confirm your fluid composition for the best recommendation. -
Do you offer samples for testing before bulk order?
Yes, we provide free samples (shipping cost applies) for customers to evaluate performance in their own systems. Minimum order quantity may apply for custom designs. -
What is the lead time for custom orders?
Standard sizes ship within 15–20 days. Custom orders typically require 25–30 days depending on specification complexity. We can expedite for urgent needs. -
How do I choose the correct micron rating for my application?
Selection depends on the size of particles you need to remove. For general oil and gas filtration, 10–25 μm is common. For fine protection of sensitive equipment, 1–5 μm is recommended. Our engineers can help you determine the optimal rating. -
What packing method is used for export?
Cartridges are individually packed in polybags, then boxed in strong corrugated cartons, or packed in plywood pallets for sea freight. We ensure safe transportation to any destination.
