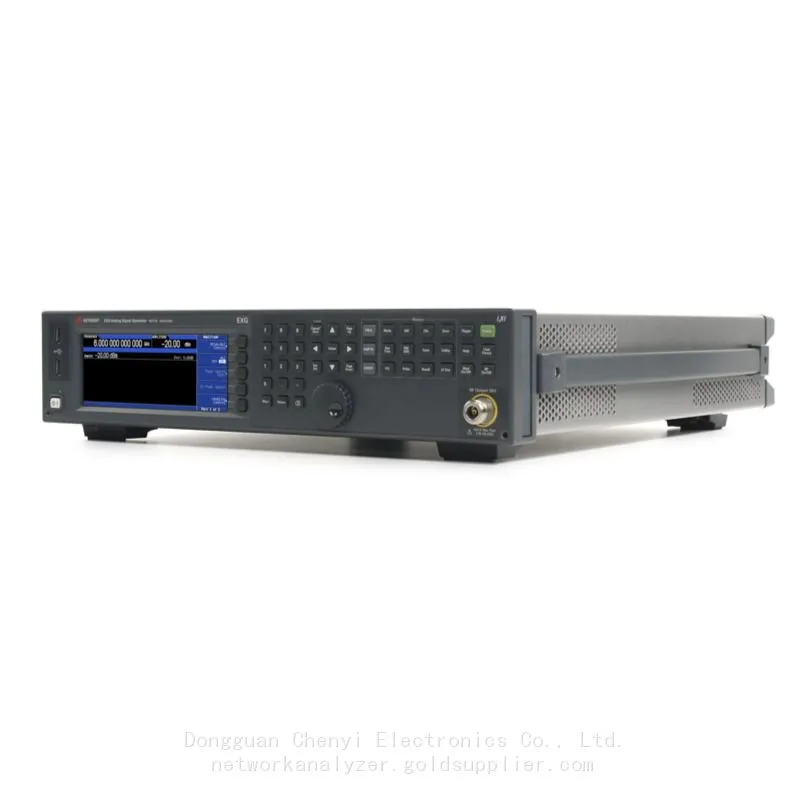

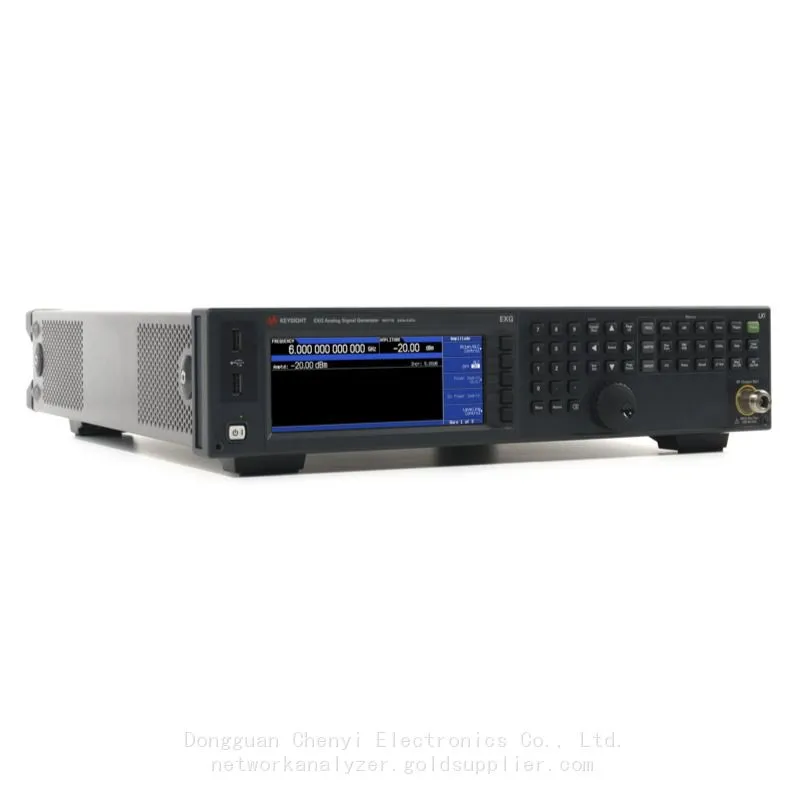

New‑Arrival N5171B Benchtop Signal Generator 0.01dB Amplitude Resolution Wide‑Range‑144~+21dBm Power Output
N5171B-Option 501： 9 kHz to 1 GHz
N5171B-Option 503： 9 kHz to 3 GHz
N5171B-Option 506： 9 kHz to 6 GHz
N5171B-Option 506+FRQ： 9 kHz to 7.2 GHz
N5171B 9 kHz to 3 GHz, and standard front panel connector configuration
Optimized for manufacturing with faster throughput and greater uptime at the right price
Highlights
Cost-Effective Signal Generator Optimized for Manufacturing Test
• Achieve faster throughput and greater uptime
• Perform basic parametric testing of components and functional verification of receivers with
industry-leading output power
• Thoroughly verify receiver performance by simulating complex analog modulation scenarios with
multi-function generator capability
• Minimize downtime and expenses with self-maintenance solutions and low-cost repairs
Maximize yield with outstanding hardware performance
• Confidently test components with an excellent level of accuracy and repeatability
• Compensate for test system losses with industry-leading output power
• Maximize throughput with the fast switching speed
• Shrink your test stand with two rack-unit height
• Get the performance and capabilities you need today and easily upgrade later
Definitions and Conditions
Specifications represent warranted performance of a calibrated instrument that has been stored for
a minimum of 2 hours within the operating temperature range of 0 to 55 °C, unless otherwise stated,
and after a 45 minute warm-up period. The specifications include measurement uncertainty. Data
represented in this document are specifications unless otherwise noted.
Typical (typ) describes additional product performance information. It is performance beyond
specifications that 80 percent of the units exhibit with a 90 percent confidence level at room
temperature (approximately 25 °C). Typical performance does not include measurement uncertainty.
Nominal (nom) values indicate the expect mean or average performance, or an attribute whose
performance is by design, such as the 50 ohm connector. This data is not warranted and is measured
at room temperature (approximately 25 °C).
Measured (meas) describes an attribute measured during the design phase for purposes of communicating
expected performance, such as amplitude drift vs. time. This data is not warranted and is measured at room temperature (approximately 25 °C).
Options
Frequency Range
N5171B-501： Frequency range, 9 kHz to 1 GHz
N5171B-503： Frequency range, 9 kHz to 3 GHz
N5171B-506： Frequency range, 9 kHz to 6 GHz
General Performance Features
N5171B-UNZ： Fast frequency switching
N5171B-1EA： High output power
N5171B-1ER： Flexible reference input (1-50 MHz)
N5171B-SD0： No internal non-volatile memory/solid state drive
N5171B-099： Expanded license key upgradability
Connector Configuration
N5171B-UNM： Standard front panel connector configuration
N5171B-1EM ： Move all connectors to rear panel
Analog Modulation
N5171B-UNT： AM, FM, phase modulation
N5171B-303 ： Multifunction generator
N5171B-UNW： Narrow pulse modulation
Additional Features
N5171B-006： Instrument security and removable memory card
Calibration Documentation
N5171B-UK6： Commercial calibration certificate with test data
N5171B-A6J： ANSI Z540-1-1994 Calibration
N5171B-AMG： Calibration + Uncertainties + Guardbanding (Accredited)
Accessories
N5171B-AXT： Hard transit case
N5171B-CVR： Front panel cover
Software with Subscription
N5180302B： Avionics VOR/ILS
N5180320B： Pulse train generator
