Hebei Speed Torque Transmission Technology Co., Ltd. proudly presents the Js Type Serpentine Spring Grid Flexible Coupling, a robust solution designed for demanding industrial machinery applications. With over 7 years of experience in power transmission components, our factory spanning 3,000-5,000 square meters produces couplings that deliver exceptional torque transmission while compensating for misalignment. Our ISO9001 certified quality management system ensures every coupling meets strict performance standards, making them trusted by clients across North America, Europe, and Asia.
Key Features & Technical Specifications

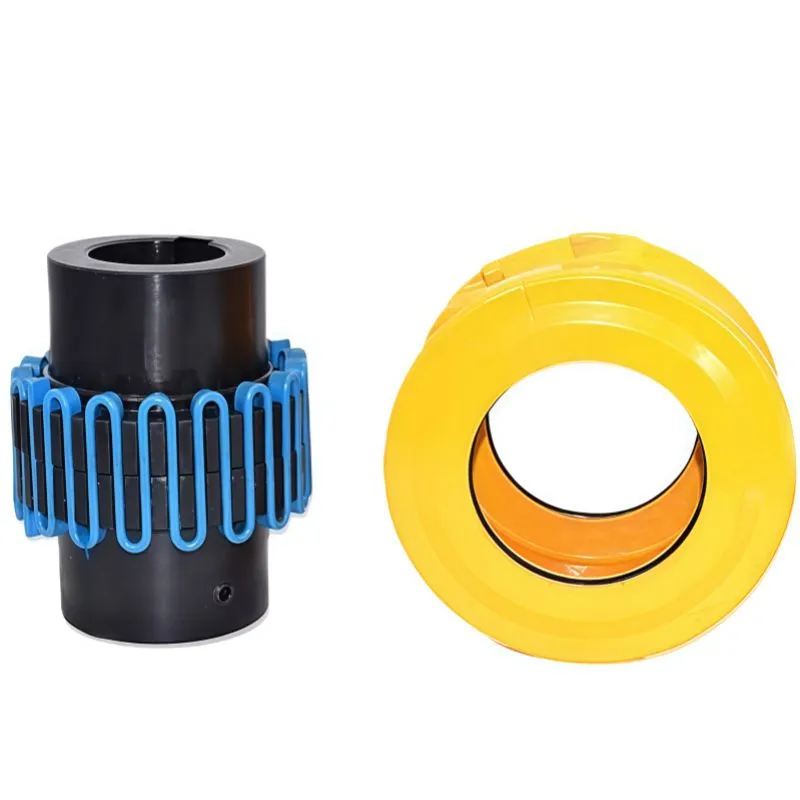

- Serpentine Spring Grid Design – Provides high torsional flexibility and dampens vibration, protecting connected equipment from shock loads.
- High Misalignment Capacity – Accommodates parallel, angular, and axial misalignment up to 0.5 mm, 1.5°, and 2 mm respectively (depending on size).
- Maintenance-Free Operation – Grid element is self-lubricating and requires no additional greasing under normal conditions.
- Easy Installation – Split hub design allows quick assembly without disassembling the connected equipment.
- Durable Construction – Made from high-strength alloy steel or optional stainless steel for corrosion resistance.
- Wide Torque Range – Available from 100 Nm to 5000 Nm, suitable for various industrial machinery.
- Customizable Bore Sizes – Standard bore diameters from 10 mm to 100 mm, with keyways and set screws as per customer requirements.
- High Speed Capability – Balanced for speeds up to 6000 RPM, ideal for pumps, compressors, and conveyors.
| Parameter | Value (Typical Range) |
|---|---|
| Nominal Torque (Tn) | 100 – 5000 Nm |
| Maximum Speed (nmax) | 3000 – 6000 RPM |
| Bore Diameter | 10 – 100 mm |
| Misalignment (Parallel) | 0.2 – 0.5 mm |
| Misalignment (Angular) | 0.5° – 1.5° |
| Axial Misalignment | 1 – 2 mm |
| Operating Temperature | -30°C to +100°C |
Advantages & Benefits for Your Machinery
The Js Type serpentine spring grid coupling is engineered to solve common industrial challenges. Its unique grid design absorbs shock loads and torsional vibrations, which extends the service life of both the coupling and the connected equipment. By compensating for misalignment, it reduces wear on bearings and seals, leading to lower maintenance costs. The split hub design simplifies installation and replacement, minimizing downtime. Additionally, the coupling operates quietly and efficiently, even under heavy loads.
Key benefits for your operations:
- Reduced downtime due to easy maintenance and installation.
- Increased equipment longevity through vibration damping.
- Cost-effective solution for high-torque applications.
- Compatible with various motor types and driven machinery.
Trustworthiness & Company Strength
Hebei Speed Torque Transmission Technology Co., Ltd. has been a reliable manufacturer since 2017, with an annual export value of US$5-10 million. Our products are shipped through major ports like Shanghai, Tianjin, and Qingdao, ensuring timely delivery worldwide. With a team of 101-200 employees and a factory size of 3,000-5,000 m², we maintain strict quality control under ISO9001 certification. We serve diverse markets including North America, Europe, Southeast Asia, and Africa, reflecting our global reach and customer satisfaction.
Why choose our Js Type coupling? Our commitment to precision engineering, customizable options, and competitive pricing makes us a preferred partner for industrial machinery manufacturers. We offer technical support and quick response times. Contact us today to discuss your specific requirements and receive a tailored solution.
Frequently Asked Questions (FAQ)
Q1: What is the maximum torque capacity of the Js Type coupling?
A: The torque capacity varies by size. Our standard range covers up to 5000 Nm. For higher torque requirements, we can provide custom designs upon request.
Q2: Can this coupling handle high-speed applications?
A: Yes, depending on the size and balancing grade, the coupling can operate at speeds up to 6000 RPM. For higher speeds, dynamic balancing is available as an option.
Q3: Is the coupling suitable for use in corrosive environments?
A: Yes, we offer stainless steel construction for the grid and hubs to resist corrosion. Please specify the environment when ordering.
Q4: How do I choose the correct coupling size for my application?
A: You need to consider torque, speed, shaft diameters, and misalignment. Our technical team can assist you in selecting the right size. Please provide your motor and driven equipment specifications.
Q5: Does the coupling require lubrication?
A: The grid element is designed to be self-lubricating under normal operating conditions. However, periodic inspection is recommended. For heavy-duty or high-speed applications, optional grease fittings are available.
Q6: What is the lead time for a typical order?
A: Standard sizes are in stock and can be shipped within 7-15 days. Customized orders may take 20-30 days depending on complexity. We can provide a precise timeline upon order confirmation.
Q7: Do you provide samples for testing?
A: Yes, we offer sample couplings for evaluation. Please contact our sales team to discuss sample availability and shipping costs.
Q8: What certifications does your company hold?
A: Our company is ISO9001 certified. We also follow strict quality control procedures. Additional certifications or testing can be arranged upon request.
