Home > Chemicals > Plastic & Polymer > Plastic Materials > PA66 G3300HSL NC010 30% Glass Fiber Reinforced Nylon, Heat Stabilized, 180 MPa Tensile Strength
PA66 G3300HSL NC010 30% Glass Fiber Reinforced Nylon, Heat Stabilized, 180 MPa Tensile Strength
Product Spotlights
PA66 G3300HSL NC010 offers 180 MPa tensile strength, 30% glass fiber reinforcement, and heat stabilization for superior performance in high-temperature and high-stress applications. Enhances part durability, reduces cycle times, and ensures dimensional stability. Ideal for automotive and industrial parts.
US$ 1.2 - 1.3
MOQ: 1 Kilogram
Key Specifications
Get Latest Price
Material:
Other, PA66 (Nylon 66)
Color:
Other, NC010 (Natural)
Grade:
G3300HSL NC010
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai,China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Dimensional Stability PA66 G3300HSL NC010 Mechanical Parts PA66 ResinUS$ 1.2 - 1.3MOQ: 1 Kilogram -
Ascend Vydyne R530H NAT Heat‑Stabilized Reinforced Polyamide 66 GranulesUS$ 1.2 - 1.3MOQ: 1 Kilogram
-
High Flow Self‑Lubricated Unfilled PA66 Resin Ascend Vydyne 21SPCUS$ 1.2 - 1.3MOQ: 1 Kilogram
-
General Purpose PA66 1300S Engineering Plastic for Industrial ComponentsUS$ 1.8 - 2MOQ: 1 Kilogram
-
Translucent Polyamide PA66 Raw Material 1300S for Nylon Resin ApplicationsUS$ 1.8 - 2MOQ: 1 Kilogram
Material
Other, PA66 (Nylon 66)
Color
Other, NC010 (Natural)
Grade
G3300HSL NC010
Glass Fiber Content
30%
Tensile Strength
180 MPa
Heat Stabilized
Yes
Density
1.36 g/cm³ (typical)
Melting Point
260°C (typical)
Application
Automotive, Industrial Parts
Packaging

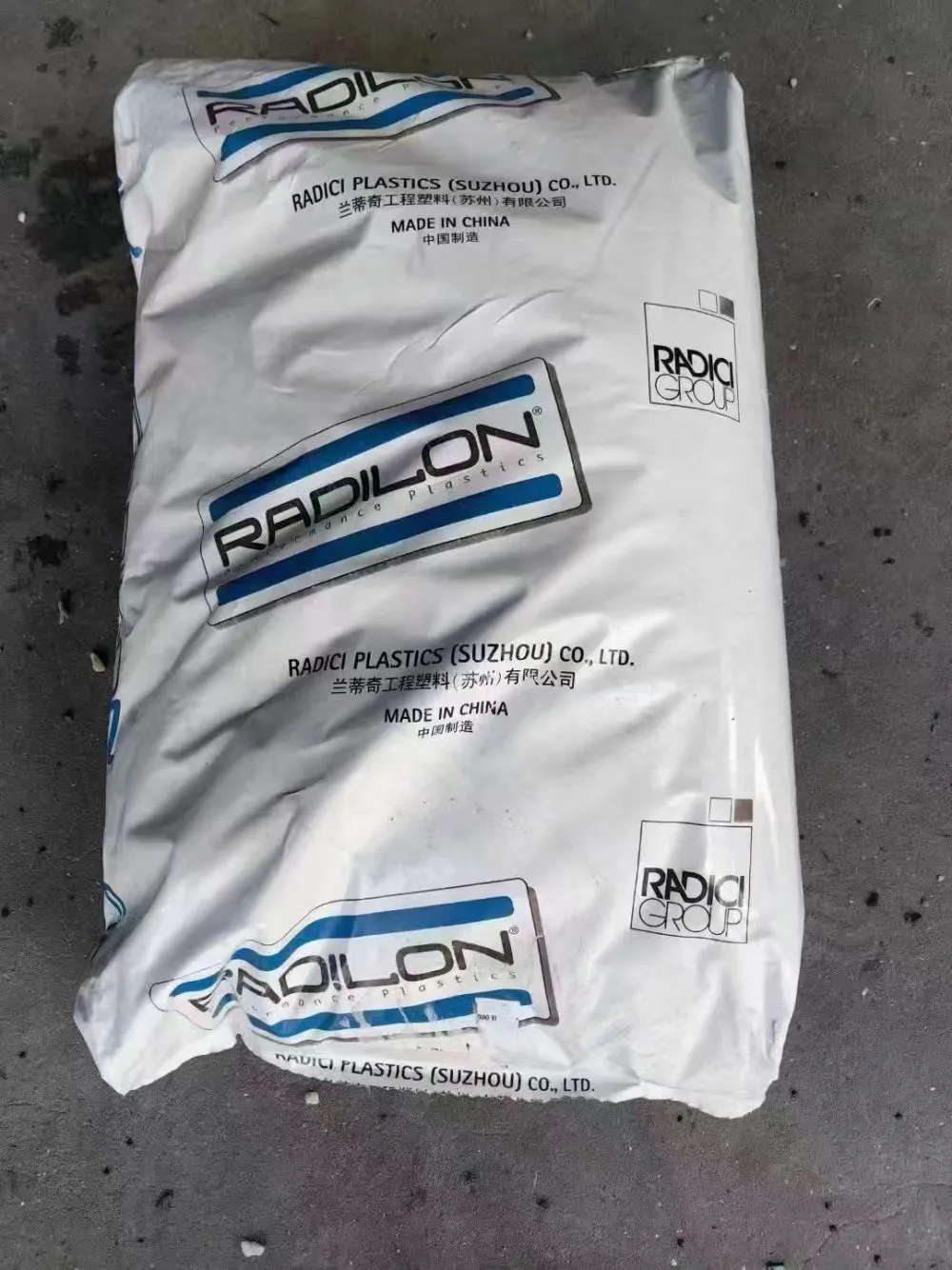

25 kg bags (customizable)
Shanghai Yunshan Plasticizing Co., Ltd. is proud to offer PA66 G3300HSL NC010, a high-performance 30% glass fiber reinforced nylon with exceptional heat stabilization. This engineering plastic is designed to deliver a remarkable 180 MPa tensile strength, making it an ideal choice for demanding applications in automotive, electrical, and industrial sectors. Our product combines superior mechanical properties with reliable thermal resistance, ensuring long-term durability in harsh environments.
Product Features & Technical Specifications:
- Enhanced Mechanical Strength: With a tensile strength of 180 MPa, this grade offers excellent load-bearing capacity, reducing the risk of deformation under stress.
- Heat Stabilization: Special additives ensure prolonged performance at elevated temperatures (up to 180°C continuous), preventing degradation and maintaining structural integrity.
- 30% Glass Fiber Reinforcement: The uniform fiber distribution improves stiffness, dimensional stability, and creep resistance compared to unreinforced PA66.
- Excellent Flowability: Optimized for injection molding, enabling complex geometries and thin walls without sacrificing strength.
- Chemical Resistance: Good resistance to oils, greases, and many solvents, making it suitable for under-hood automotive components.
- Low Moisture Absorption: Compared to standard PA66, this formulation minimizes dimensional changes due to humidity.
| Property | Value | Unit |
|---|---|---|
| Tensile Strength | 180 | MPa |
| Flexural Modulus | 8500 | MPa |
| Izod Impact (notched) | 8 | kJ/m² |
| Heat Deflection Temperature (1.8 MPa) | 245 | °C |
| Density | 1.36 | g/cm³ |
Customer Benefits: By using PA66 G3300HSL NC010, manufacturers can achieve longer product life cycles, reduced maintenance costs, and improved safety in high-temperature applications. Its outstanding flowability lowers injection molding cycle times, increasing production efficiency.
Trust & Reliability: As a reputable supplier based in Shanghai, China, Shanghai Yunshan Plasticizing Co., Ltd. has built a strong track record in delivering consistent quality materials. Our team provides technical support, samples for testing, and flexible packaging options to meet your specific requirements. Contact us today to discuss your project needs and experience the reliability of our PA66 glass fiber reinforced nylon.
Frequently Asked Questions (FAQ)
-
Q: What is the maximum continuous service temperature for this grade?
A: With heat stabilization, the material can withstand continuous use up to 180°C, with short-term peaks up to 200°C depending on the application. -
Q: Can PA66 G3300HSL NC010 be used for food contact?
A: This grade is not specifically designed for food contact. Please consult our technical team for alternative materials if required. -
Q: What is the recommended drying condition before molding?
A: We recommend drying at 80°C for 4-6 hours to achieve a moisture content below 0.2% for optimal processing. -
Q: Is this material available in colored versions?
A: The standard color is NC010 (natural). Custom color formulations are available upon request with minimum order quantities. -
Q: How does the tensile strength compare to standard PA66 without glass fiber?
A: Standard unfilled PA66 typically has a tensile strength around 80 MPa. Our 30% glass reinforced version offers 180 MPa, more than double the strength. -
Q: What are the typical applications for this product?
A: Common uses include automotive engine components, electrical connectors, power tool housings, and industrial gears where heat and mechanical stress are present. -
Q: Does this material offer UV resistance?
A: No, it is not inherently UV stabilized. For outdoor applications, we recommend adding UV stabilizers or using a protective coating. -
Q: Can I request a sample before bulk order?
A: Yes, we provide free samples for evaluation. Please contact our sales team with your shipping details.
