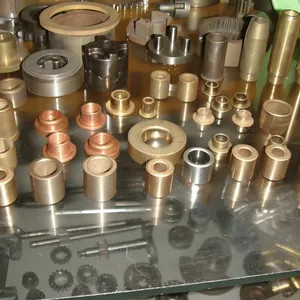

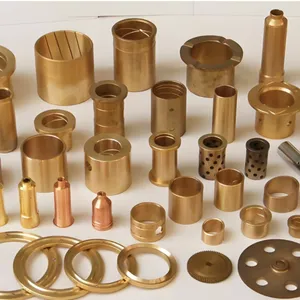

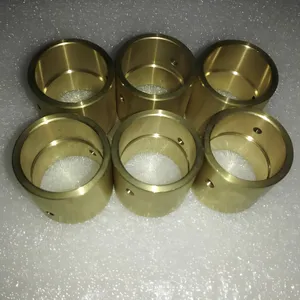

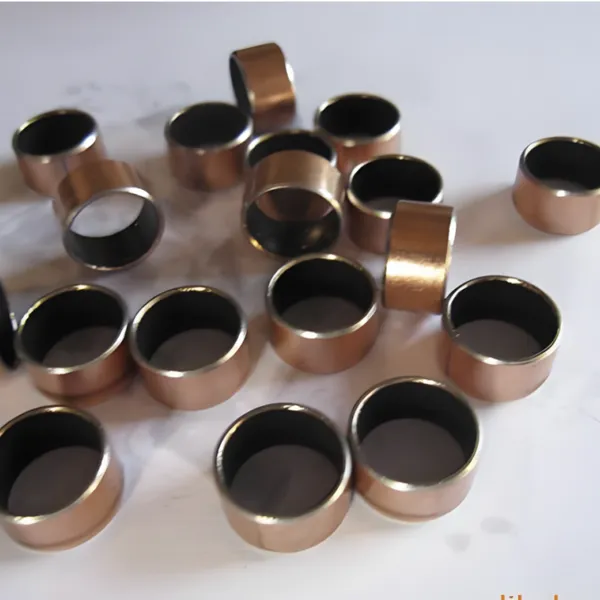

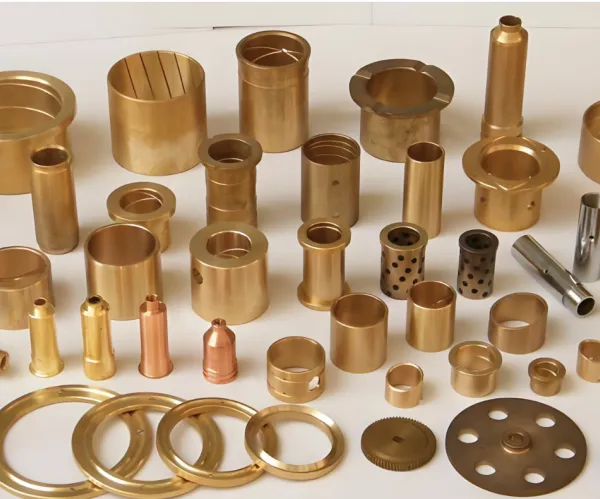

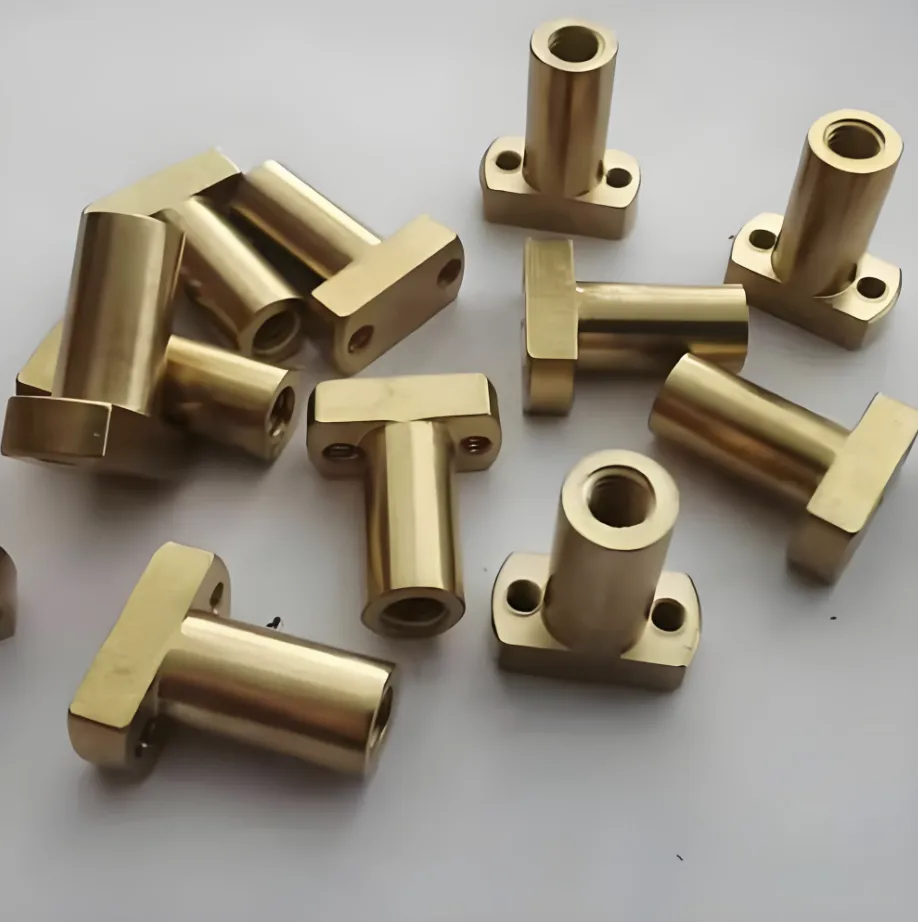

Copper Bushing for Hydraulic Cylinder Pivot Points, Wear-Resistant and Long Service Life
Product Spotlights
High-grade copper alloy bushings engineered for hydraulic cylinder pivot points, offering superior wear resistance, self-lubricating properties, and precision tolerances. Custom sizes available, backed by 20+ years of manufacturing experience and global export capability.
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
material:
High-Grade Copper Alloy (e.g., CuSn8, CuZn25Al5)
dimensions:
Customizable (ID: 10-200mm, OD: 15-250mm, Length: 20-300mm)
hardness:
HB 80-120 (typical range)
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin shanghai qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
C36000 Brass Copper Bushing With High Machinability and 0.02mm CylindricityNegotiableMOQ: 1 Piece -
Copper Bushing for Automotive Suspension System, Reduction of Friction and NoiseNegotiableMOQ: 1 Piece
-
Copper Bushing With 1-Year Warranty and Mill Test Report Provided for Each BatchNegotiableMOQ: 1 Piece
-
Oil Impregnated Copper Bushing With 20% Oil Content, Self-Lubricating for Low MaintenanceNegotiableMOQ: 1 Piece
-
Tin-Plated Copper Bushing With 8μm Coating Thickness and Corrosion ResistanceNegotiableMOQ: 1 Piece
material
High-Grade Copper Alloy (e.g., CuSn8, CuZn25Al5)
dimensions
Customizable (ID: 10-200mm, OD: 15-250mm, Length: 20-300mm)
hardness
HB 80-120 (typical range)
application
Hydraulic cylinder pivot points, construction machinery, mining equipment
surface finish
Ra 0.8-1.6 μm
tolerance
ISO h7/h8 (customizable)
packaging
Pallet, carton, or as per customer request
lead time
15-30 working days depending on quantity
Anping County Boli Hardware Wiremesh Products Factory (established 1998) specializes in precision-engineered metal components. Our Copper Bushing for Hydraulic Cylinder Pivot Points is designed to withstand extreme loads and repetitive motion, delivering exceptional wear resistance and extended service life. Manufactured from high-grade copper alloys, these bushings reduce friction, prevent galling, and maintain dimensional stability even under harsh operating conditions.
We understand that hydraulic cylinder pivot points are critical to the reliability of heavy machinery. Our bushings are machined to tight tolerances, ensuring a perfect fit with pivot pins and housings. The self-lubricating properties of copper alloys minimize maintenance intervals and downtime. Whether you need standard sizes or custom dimensions, we offer flexible solutions to meet your specific requirements.
Backed by over two decades of manufacturing experience, each bushing undergoes rigorous quality checks. Our factory in Hengshui, Hebei, China, utilizes advanced CNC lathes and inspection equipment to guarantee consistent quality. With an annual export value of US$5 million – US$10 million and shipments to major global markets, we have earned the trust of clients worldwide.
Key Features & Technical Specifications
- Material Excellence: Made from premium copper alloys (e.g., CuSn8, CuZn25Al5) offering high strength, corrosion resistance, and excellent thermal conductivity.
- Wear Resistance: The hard, dense microstructure reduces wear rate by up to 30% compared to standard bronze bushings, extending service life.
- Low Friction Coefficient: Self-lubricating properties minimize the need for external grease, ideal for applications with limited maintenance access.
- Precision Machining: Tolerances as tight as ISO h7/h8 ensure minimal clearance and reduced vibration, protecting pivot pins and housing.
- Customizable Dimensions: We offer inner diameters from 10 mm to 200 mm, outer diameters from 15 mm to 250 mm, and lengths from 20 mm to 300 mm. Non-standard sizes are available upon request.
- Consistent Quality: Each bushing is inspected for hardness, dimensional accuracy, and surface finish (Ra 0.8–1.6 μm).
| Parameter | Typical Value | Notes |
|---|---|---|
| Material Composition | CuSn8 (8% Tin) or CuZn25Al5 | Other alloys available on request |
| Hardness (HB) | 80–120 | Adjustable via heat treatment |
| Tensile Strength (MPa) | ≥ 250 | Varies with alloy |
| Operating Temperature | -40°C to +200°C | Continuous use |
| Surface Finish | Ra 0.8–1.6 μm | Smoother finish optional |
| Tolerance Standard | ISO h7/h8 | Custom tolerances available |
Benefits for Your Application
- Reduced Downtime: The wear-resistant nature means fewer replacements, keeping your hydraulic cylinders operational longer.
- Lower Maintenance Costs: Self-lubricating properties cut grease consumption and labor for manual lubrication.
- Enhanced Equipment Life: By absorbing shocks and preventing metal-to-metal contact, the bushing protects pivot pins and cylinder bores.
- Versatile Compatibility: Suitable for excavators, loaders, cranes, agricultural machinery, and any hydraulic system with pivot joints.
- Global Logistics: We ship from Tianjin, Qingdao, Shanghai, and Foshan ports, ensuring fast delivery to major markets worldwide.
Frequently Asked Questions (FAQ)
-
Q: What copper alloys do you use for hydraulic cylinder bushings?
A: We primarily use CuSn8 (tin bronze) and CuZn25Al5 (high-strength brass). Both offer excellent wear resistance and load capacity. Other alloys like CuPb10Sn10 can be supplied upon request. -
Q: Can you provide custom sizes?
A: Yes. We can manufacture bushings with any dimensions within our capability range. Please provide your drawings or detailed specifications for a quotation. -
Q: Do these bushings require lubrication?
A: While they have self-lubricating properties, for heavy-duty applications we recommend initial lubrication. The copper alloy microstructure retains oil, reducing relubrication frequency. -
Q: What is the typical lead time?
A: For standard sizes, lead time is 15–20 working days. Custom orders typically take 20–30 working days, depending on complexity and quantity. -
Q: How do you ensure quality consistency?
A: We follow a strict QC process: incoming material inspection, in-process dimensional checks, hardness testing, and final surface finish verification. Each batch is traceable. -
Q: What is the minimum order quantity (MOQ)?
A: MOQ is 100 pieces for standard sizes. For custom sizes, MOQ may be lower, but please contact us to discuss. -
Q: Can you provide samples for testing?
A: Yes, sample orders are welcome. We charge a nominal fee which is refundable on bulk orders. -
Q: Which markets do you export to?
A: We export to North America, South America, Europe, Southeast Asia, Africa, Oceania, the Middle East, and other regions. Our factory has served clients worldwide since 1998.
Choose Anping County Boli Hardware Wiremesh Products Factory for reliable, long-lasting copper bushings. With over 20 years of manufacturing expertise, an annual export value of US$5–10 million, and a commitment to quality, we are your trusted partner for hydraulic cylinder components. Contact us today for a quote or to discuss your custom requirements.
