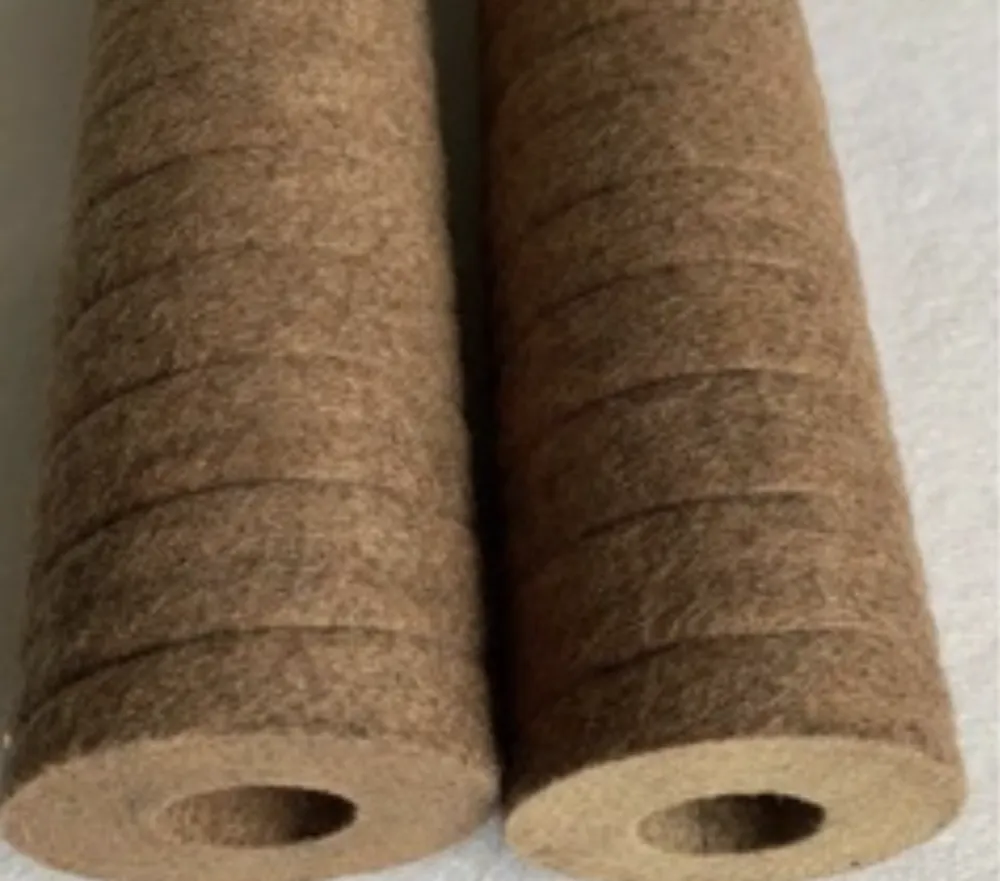

Anping County Boli Hardware Wiremesh Products Factory, established in 1998, is a professional manufacturer with over 20 years of experience in filtration solutions. Our Phenolic Resin Fiber Filter Cartridge is specifically engineered for industrial water filtration in chemical processing plants, offering superior resistance to aggressive chemicals and high temperatures. This cartridge combines advanced phenolic resin technology with high-strength fiber media, ensuring reliable performance and extended service life. Trusted by clients across North America, South America, Europe, and Asia, our products are exported to global markets with annual export value exceeding US$5 million.
The Phenolic Resin Fiber Filter Cartridge is designed to remove particulate contaminants, suspended solids, and organic impurities from process water, cooling water, and wastewater streams in chemical plants. Its unique construction provides excellent depth filtration, high dirt-holding capacity, and low pressure drop, making it an ideal choice for demanding applications. Below we detail the key features, technical specifications, and benefits.
Key Features & Benefits
- Chemical Resistance: Phenolic resin matrix withstands strong acids, alkalis, and organic solvents, ensuring stable operation in harsh chemical environments.
- High Temperature Tolerance: Operates continuously up to 80°C (176°F), suitable for hot process streams.
- Deep Filtration Structure: Fibrous matrix captures particles throughout the depth, not just on the surface, maximizing dirt holding capacity.
- High Flow Rates: Optimized fiber geometry minimizes pressure drop while maintaining filtration efficiency.
- Long Service Life: Robust construction reduces replacement frequency, lowering operational costs.
- Easy Installation: Standard industry dimensions (10-40 inch length, 2.5-4.5 inch OD) fit most filter housings.
- Customizable Options: Available with various micron ratings (1-100 μm), end cap configurations (double open, flat gasket, 222/226 o-ring), and core materials (stainless steel or polypropylene) upon request.
Technical Specifications
| Parameter | Value |
|---|---|
| Filtration Media | Phenolic Resin-Impregnated Fiber |
| Filtration Rating | 1, 5, 10, 20, 50, 100 μm |
| Length | 10, 20, 30, 40 inches (custom lengths available) |
| Outer Diameter | 2.5, 3.0, 4.5 inches |
| Maximum Operating Temperature | 80°C (176°F) |
| Maximum Operating Pressure | 0.6 MPa (87 psi) at 25°C |
| Core Material | Stainless Steel 304/316, Polypropylene |
| End Cap Configurations | Double Open, Flat Gasket, 222/226 O-Ring |
Our Phenolic Resin Fiber Filter Cartridge is manufactured under strict quality control, ensuring consistent pore structure and reliable performance. Each cartridge undergoes pressure integrity testing and dimensional inspection before shipment. The materials are selected to meet industry standards for chemical compatibility and mechanical strength, providing peace of mind for critical filtration applications.
Applications in Chemical Processing
- Process water filtration in chemical reactors and heat exchangers
- Cooling tower and boiler water treatment
- Wastewater treatment prior to discharge or reuse
- Pre-filtration for reverse osmosis and deionization systems
- Solvent and chemical solution purification
- Protection of pipelines, pumps, and valves from particulate damage
Compared to standard polypropylene or melt-blown cartridges, the phenolic resin fiber version offers superior compatibility with strong acids, bases, and organic solvents, making it the preferred choice for chemical processing plants where aggressive fluids are handled. Its high dirt-holding capacity reduces the frequency of cartridge change-outs, resulting in lower maintenance costs and less downtime.
Why choose Anping County Boli Hardware Wiremesh Products Factory? As a manufacturer with over two decades of expertise, we have supplied filtration products to more than 20 countries and regions worldwide. Our annual export value of US$5–10 million demonstrates our capability to deliver consistent quality on a large scale. We ship from major ports including Tianjin, Qingdao, Shanghai, and Foshan, ensuring timely delivery. Our experienced team provides technical support and customization services to meet specific customer requirements.
We are committed to continuous improvement and customer satisfaction. Every batch of filter cartridges is traceable, and we offer samples for testing before bulk orders. Whether you need a standard size or a custom design, our factory can produce according to your specifications.
Frequently Asked Questions (FAQ)
Q1: What is the recommended replacement frequency for this filter cartridge?
A: Replacement frequency depends on the feed water quality and operating conditions. Typically, the cartridge can last from 3 to 6 months in moderate chemical environments. Regular monitoring of pressure differential is recommended.
Q2: Can this cartridge be used for high-temperature applications above 80°C?
A: The maximum continuous operating temperature is 80°C. For higher temperatures, please consult our technical team for alternative solutions.
Q3: Does the cartridge contain any binders or adhesives that could leach into the fluid?
A: No, the phenolic resin is fully cured and inert. The cartridge is manufactured without soluble binders, ensuring no leaching into the process fluid.
Q4: What end cap options are available?
A: We offer double open end, flat gasket (DOE), 222 O-ring, and 226 O-ring configurations. Custom end caps are also available upon request.
Q5: How should I store the cartridges?
A: Store in a cool, dry place away from direct sunlight and extreme temperatures. Keep in original packaging to prevent contamination.
Q6: Can I get a sample to test before placing a bulk order?
A: Yes, we provide samples at a nominal cost. Contact our sales team to arrange a sample with your desired specifications.
Q7: What is the typical lead time for production?
A: For standard sizes, lead time is 7–15 days after order confirmation. Custom orders may require 15–25 days.
Q8: Do you provide certificates of analysis for each batch?
A: Yes, we can provide a batch-specific certificate of analysis upon request, including micron rating, pressure drop, and integrity test results.
Contact us today to discuss your filtration requirements. With our proven track record, competitive pricing, and reliable quality, the Phenolic Resin Fiber Filter Cartridge is the smart choice for your chemical processing water filtration needs. We look forward to becoming your trusted partner.
