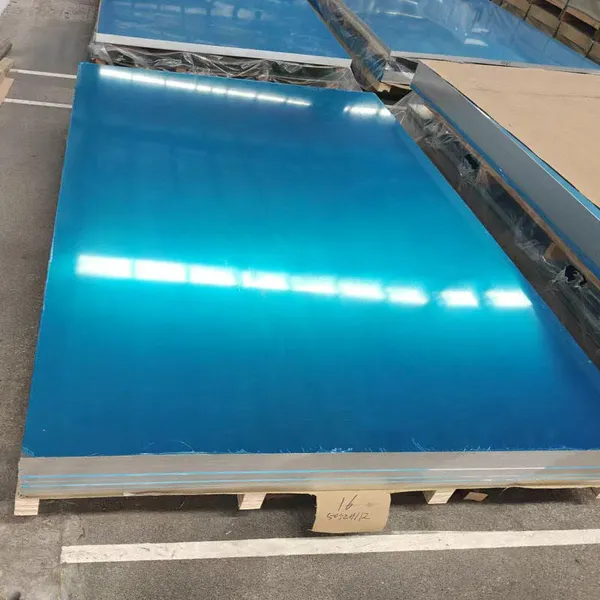

Help CenterAluminum Plate 1050 O for Heat Exchanger Fin Stock 0.2mm Thick
Product Spotlights
Related Products
-
6061 T6 Aluminum Plate 0.125 Inch Thickness 48 x 96 Inch Custom SizeNegotiableMOQ: 1 Ton -
3003 Aluminum Coil H14 0.8mm Thickness 1200mm Width With Mill FinishNegotiableMOQ: 1 Ton
-
1050 Aluminum Coil 0.4mm With Mill Test Report and 1 Year Warranty SupportNegotiableMOQ: 1 Ton
-
3004 Aluminum Coil 0.7mm for Automotive Body Panels and Heat Exchanger UseNegotiableMOQ: 1 Ton
-
7075 T6 Aluminum Coil 1.0mm Thickness 1000mm Width Aerospace Grade MaterialNegotiableMOQ: 1 Ton
Welcome to Hemaokang Steel (Shandong) Co., Ltd. – your reliable partner in high-quality aluminum products. Our Aluminum Plate 1050 O for Heat Exchanger Fin Stock 0.2mm Thick is engineered to meet the exacting demands of thermal management systems. Manufactured with precision and backed by our ISO9001 quality management system, this product delivers exceptional performance, consistency, and durability for your heat exchanger fin applications.
With an annual export value exceeding US$50 million and a team of 51–100 skilled professionals, we serve global markets including North America, South America, Europe, Asia, and Oceania. Our commitment to excellence ensures that every coil of aluminum plate meets strict dimensional tolerances and surface quality standards. The 1050 O alloy provides excellent formability and thermal conductivity, making it the ideal choice for manufacturing heat exchanger fins where weight reduction and heat transfer efficiency are critical.
This product is specifically designed for the fin stock industry. The 0.2mm thickness offers a perfect balance between strength and flexibility, allowing for complex fin geometries without cracking. Whether you are producing automotive radiators, HVAC coils, or industrial heat exchangers, our aluminum plate delivers consistent performance batch after batch.
Key Features & Technical Specifications
- Alloy & Temper: 1050 O (annealed) – offers superior ductility and corrosion resistance, ideal for deep drawing and bending.
- Thickness: 0.2mm ±0.01mm – tight tolerance ensures uniform fin thickness and consistent heat transfer.
- Width: Customizable from 100mm to 2000mm, with or without slitting edges.
- Surface Quality: Mill finish, free of scratches, oil stains, and oxides. Optional coated or embossed finishes available upon request.
- Mechanical Properties: Tensile strength 70–100 MPa, yield strength 20–40 MPa, elongation ≥25% – guaranteeing excellent formability.
- Thermal Conductivity: ~220 W/m·K – high thermal conductivity maximizes heat exchange efficiency.
- Packaging: Standard export seaworthy wooden pallets or custom packaging to prevent damage during transit.
| Parameter | Value |
| Alloy | 1050 |
| Temper | O (Annealed) |
| Thickness (mm) | 0.2 ±0.01 |
| Width (mm) | Custom (100–2000) |
| Length (mm) | Custom (2000–6000) |
| Tensile Strength (MPa) | 70–100 |
| Elongation (%) | ≥25 |
| Thermal Conductivity (W/m·K) | ~220 |
| Surface Finish | Mill Finish |
Advantages for Your Business
- Enhanced Formability: The O temper allows deep drawing and intricate fin patterns without cracking, reducing scrap rates and production costs.
- Consistent Thickness: Our precision rolling process ensures uniform thickness across the entire coil, critical for maintaining consistent thermal performance.
- Corrosion Resistance: 1050 alloy offers excellent resistance to atmospheric corrosion, prolonging the lifespan of heat exchangers.
- Lightweight: Aluminum’s low density reduces overall weight of the heat exchanger, ideal for automotive and aerospace applications.
- Customizable Dimensions: We offer slitting, cutting, and custom widths to match your specific tooling requirements.
- Reliable Supply Chain: With an annual export value of US$50–100 million and a professional team, we ensure timely delivery and consistent quality.
Trust & Assurance
Hemaokang Steel (Shandong) Co., Ltd. is a newly established (2025) but highly capable manufacturer backed by decades of industry experience from our founding team. We have already achieved ISO9001 certification, ensuring that every product is manufactured under strict quality control procedures. Our main markets span across North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, and many other regions, serving clients who demand top-tier materials for critical applications.
We are confident that our Aluminum Plate 1050 O for Heat Exchanger Fin Stock 0.2mm Thick will exceed your expectations in terms of formability, consistency, and thermal performance. Contact us today to request a sample, place a trial order, or discuss your custom requirements. Let us be your trusted partner in aluminum solutions.
Frequently Asked Questions
-
Q: What is the typical tolerance for the 0.2mm thickness?
A: Our standard tolerance is ±0.01mm. For tighter requirements, we can customize upon request. -
Q: Can you provide the aluminum plate in coil form instead of sheets?
A: Yes, we supply both coils and sheets. Coils are commonly used for continuous fin stamping processes. -
Q: What surface finish is available?
A: Standard is mill finish. We also offer coated, anodized, or embossed surfaces as optional treatments. -
Q: What is the minimum order quantity (MOQ)?
A: MOQ is typically 1 ton for standard sizes. For custom dimensions, please contact our sales team. -
Q: How is the product packaged for export?
A: We use wooden pallets with protective wrapping, edge protectors, and steel strapping to ensure safe transportation. -
Q: Can you provide a material test certificate?
A: Yes, we supply mill test certificates (MTC) with each shipment, confirming chemical composition and mechanical properties. -
Q: What is the lead time for production?
A: For standard sizes, lead time is 15–20 days after order confirmation. Custom orders may take 25–30 days. -
Q: Is the product suitable for use in HVAC systems?
A: Absolutely. The 1050 O alloy is widely used in HVAC fin stock due to its excellent thermal conductivity and formability.
