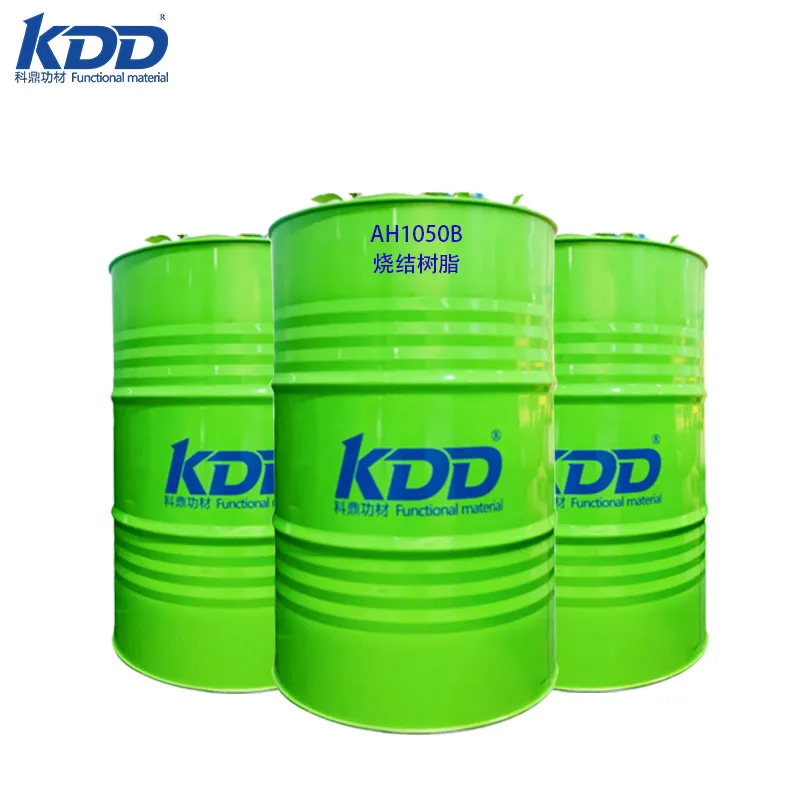

Help CenterKDD Resin AH1050B Acrylic Resin Applied to Screen Printing, High-temperature Tempered Glass, Sintered Ink for Household Appliances
Product Spotlights
Used for 600-800 degree sintering ink system No residue after low ash sintering .
Related Products
-
KDD Resin J9105 Water-Based Functional Resin Gravure Printing Water-based Ink Universal Resin Can Grind Color Ink as a WholeNegotiableMOQ: 1000 Kilograms -
KDD Resin AH1050A Water-soluble Acrylic Resin Special Resin for Electronic Paste Sintering Ink Surface of Glass Ceramic SubstrateNegotiableMOQ: 1000 Kilograms
-
KDDresin MX2502 Water-soluble Acrylic Resin Wood Sealing Primer Special Resin Anti Tannic Acid Anti Swelling ReinforcementNegotiableMOQ: 1000 Tons
-
KDD Resin MR1806W Water-soluble Acrylic Resin Water-based Glass Coating Special Glass Coating With Good Boiling Resistance Water-based ResinNegotiableMOQ: 1000 Tons
-
KDD Resin MR1729B Water-soluble Acrylic Resin Used for Adhesive Resin in Self-adhesive Adhesive System Temporary AdhesiveNegotiableMOQ: 1000 Kilograms
Functional resin for water-based high-temperature sintering connectors. High thixotropy and adhesion, suitable for high-temperature sintering inks with high load-bearing systems.
Paired with AH1050B, the rheological properties, load-bearing capacity, dryness, and other properties of the formula system can be more flexibly adjusted. The data provided on this data page are only typical numerical values and not technical indicators of the product.
Solid content: (± 2%) 50
Appearance: yellowish transparent to microemulsion liquid
Solvent: Alcoholic ether
Viscosity: (cps/25 ℃) 3000~6000
Product Features
Suitable for high load bearing, high powder to oil ratio high-temperature sintering ink
• Good adhesion
Good wetting and dispersibility
• Excellent color display performance
• Tactile and anti sinking properties
• Low odor
• No residue or trace left during roasting
Application Direction
Water based high-temperature tempered glass sintering ink
• Electronic paste
Thick film paste
Ceramic slurry
solubility
Soluble in solvents such as water, alcohols, and ethers, please test the stability of the resin in the solvent and the effect of the solvent on its properties before use. Reference formula
Reference formula for high-temperature sintering ink blending oil:
AH1050A：28
AH1050B：12
Diethylene glycol butyl ether: 40
Diethylene glycol methyl ether: 19.4
Dispersant: 0.5
Defoamer: 0.1
Total: 100.0
Reference formula for high-temperature sintering ink:
Ink blending oil: 11-18
Glaze material: 89~82
