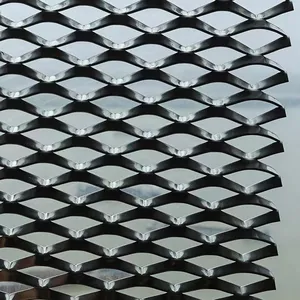

Help CenterExpanded Metal Mesh for Security Fencing, 2mm Steel, 12x24mm Opening, 1.8m Height, Galvanized, Outdoor Use
Product Spotlights
Related Products
-
Expanded Metal Panel With 2-Year Warranty, Mill Test Certificate Included, 304 Stainless Steel, 1.2mm, Precision CutNegotiableMOQ: 50 Cubic Centimeters -
Galvanized Expanded Metal Sheet, 2mm Wire Diameter, 4x8ft Size, 60% Open Area, ISO Compliant, Heavy DutyNegotiableMOQ: 50 Cubic Centimeters
-
Carbon Steel Expanded Metal, 3mm Thickness, 25x50mm Diamond, 1.2m x 2.4m, Standard Compliant, 1 Year WarrantyNegotiableMOQ: 50 Cubic Centimeters
-
304 Stainless Steel Expanded Metal Mesh, 0.5mm Thickness, 10x20mm Diamond Opening, 1.5m Width, Standard CompliantNegotiableMOQ: 50 Cubic Centimeters
-
304 Stainless Steel Expanded Metal, 0.8mm Thick, 6x12mm Opening, 1m x 2m, Mill Test Report, Anti-CorrosionNegotiableMOQ: 50 Cubic Centimeters
At Anping Xinye Metal Wire Mesh Products Co., Ltd, we are dedicated to providing high-quality fencing solutions for demanding outdoor environments. Our 2mm Expanded Metal Mesh for Security Fencing is engineered to deliver robust perimeter protection with a 12x24mm diamond opening pattern and a standard 1.8m height. This galvanized steel mesh is specifically designed to withstand harsh weather conditions while offering clear visibility and reliable deterrence for industrial, commercial, and public facilities. With years of experience in metal mesh manufacturing, we ensure each panel meets strict quality standards for strength and durability.
Below we break down the key features, technical specifications, and benefits that make this expanded metal mesh a top choice for security fencing.
Key Features & Advantages
- Heavy-Duty 2mm Steel Construction – The 2mm thick base material provides excellent rigidity and resistance to cutting or climbing, ideal for high-security perimeters.
- 12x24mm Diamond Opening – This specific opening size balances security with visibility, making it difficult to climb or pass objects through while allowing airflow and light.
- 1.8m Standard Height – A practical height for most fencing applications, offering a solid barrier without being overly imposing.
- Hot-Dip Galvanized Finish – The entire mesh is galvanized after expansion to create a corrosion-resistant coating that lasts for years in outdoor use, even in coastal or humid areas.
- Easy Installation & Customization – Panels can be cut, welded, or attached to posts using standard hardware. Custom sizes and finishes (e.g., PVC coating) are available upon request.
- Low Maintenance – The galvanized surface requires minimal upkeep – no painting or sealing needed, saving time and cost over the product lifespan.
- Versatile Applications – Suitable for security fencing around schools, parks, warehouses, construction sites, power stations, and private property.
Technical Specifications
| Material | Low carbon steel (Q195/Q235) |
| Thickness (strand) | 2mm (±0.1mm) |
| Opening size (long way) | 24mm |
| Opening size (short way) | 12mm |
| Panel height | 1.8m (standard, customizable) |
| Panel width | 2.0m / 2.5m (or as required) |
| Surface treatment | Hot-dip galvanized (≥80µm) |
| Tensile strength | ≥ 370 MPa (approximate) |
| Weight per square meter | Approx. 3.5 kg (varies with exact dimensions) |
Why Choose Our Expanded Metal Mesh for Security?
Security fencing requires a material that is both physically strong and resistant to environmental degradation. Our expanded metal mesh delivers on both fronts:
- No Welds or Joints – The expanded process creates a single-piece sheet without weak points, making it much harder to break compared to welded mesh.
- Anti-Climb Design – The diamond pattern with 12mm short dimension prevents footholds, increasing security against intruders.
- Visibility & Ventilation – Unlike solid panels, the mesh allows natural light and airflow, which is beneficial for areas like car parks or sports fields.
- Long Service Life – The galvanized coating provides excellent corrosion resistance – typical lifespan in normal outdoor conditions is 15–20 years with minimal maintenance.
- Cost-Effective – Compared to solid steel panels or welded mesh, expanded metal offers a good balance of strength and material efficiency, reducing overall project cost.
Trusted Manufacturer – Anping Xinye
Located in Anping, Hebei, China – the world’s wire mesh capital – Anping Xinye Metal Wire Mesh Products Co., Ltd has been a reliable supplier of metal mesh products for over a decade. We utilize advanced production lines and strict quality control procedures to ensure each panel meets precise specifications. Our factory covers an area of 15,000 square meters and employs experienced technicians who oversee every step from raw material selection to final packaging. With an annual production capacity of over 500,000 square meters of expanded metal mesh, we can fulfill both small and large-scale orders with consistent quality. We have exported to more than 30 countries across Europe, Southeast Asia, the Middle East, and the Americas. Our commitment to customer satisfaction is reflected in our responsive service and willingness to customize dimensions, coatings, and packing to suit your project requirements. When you choose Anping Xinye, you choose a partner dedicated to delivering durable, high-performance fencing solutions.
Frequently Asked Questions (FAQ)
-
Q: Is this expanded metal mesh suitable for high-security prisons?
A: While our 2mm mesh with 12x24mm opening provides a strong barrier, high-security facilities often require thicker materials (e.g., 3mm or 4mm) or additional reinforcement. We can customize thickness and opening size to meet specific security levels. Please contact us for a tailored solution. -
Q: Can I get the mesh in a different height or width?
A: Yes, we offer custom sizes. The 1.8m height is standard, but we can produce panels from 1.0m up to 2.5m, and widths from 1.0m to 3.0m, depending on the material thickness. Custom orders have a minimum quantity requirement. -
Q: How long does the galvanizing last?
A: The hot-dip galvanized coating typically provides 15–20 years of protection in normal outdoor environments. In extremely corrosive conditions (e.g., coastal areas with salt spray), an additional PVC coating can be applied to extend lifespan. -
Q: Is the mesh easy to install on existing posts?
A: Yes, the panels can be attached to steel or concrete posts using clamps, brackets, or welding. We can also supply matching posts and accessories. Installation instructions are provided upon request. -
Q: What is the weight of a standard 1.8m x 2.0m panel?
A: A typical panel of 2mm thickness, 1.8m x 2.0m, weighs approximately 12.6 kg. Exact weight may vary slightly due to manufacturing tolerances. -
Q: Do you provide samples before bulk order?
A: Yes, we offer free samples (A4 size) for quality evaluation. The buyer only needs to cover shipping costs. Bulk orders can be shipped within 15–25 working days after sample approval and deposit. -
Q: Can this mesh be used for animal enclosures or garden fencing?
A: Absolutely. The 12x24mm opening is small enough to prevent small animals from passing through, while the galvanized finish is safe for livestock. It is also popular for decorative garden fencing that requires durability. -
Q: What payment terms do you accept?
A: We accept T/T (bank transfer), L/C, and Western Union for international orders. For first-time cooperation, a 30% deposit and 70% balance before shipment is typically required. Long-term contracts can be negotiated.
Ready to secure your property with high-quality expanded metal mesh? Contact Anping Xinye today for a quote or to discuss your project needs. We are committed to providing excellent products and service.
