Product Spotlights

Ceramic Cross Partition Ring with cross-shaped internal partition designed for enhanced surface area and mass transfer efficiency in packed towers. Available in 50mm, 80mm, 100mm, 120mm, and 150mm sizes. Alumina-silica composition with Al2O3 content 17-23 percent, SiO2+Al2O3 greater than 92 percent. Acid resistance greater than 99.6 percent per ASTM C279. Alkali resistance greater than 85 percent. Maximum operating temperature 1200 degrees
Negotiable MOQ: 1 Cubic Meter (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Application:
Other
Purity:
Other
Particle Size:
Other, 120mm
Contact Supplier Request Quote Chat Now
Pingxiang Daier Separation Tech Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Application Other
Purity Other
Particle Size Other, 120mm
Specific Surface Area Other, 120 m²/m³
Transport Package Plastic Bag, Jumbo Bag, Carton Box
Specification 50/80/100/120/150mm
Origin Pingxiang, Jiangxi, China

Ceramic Cross Partition Ring — Overview

Ceramic Cross Partition Ring is a random tower packing developed from the Raschig ring geometry. The internal cross-shaped partition divides the cylinder into four chambers, increasing specific surface area while maintaining high void fraction and low pressure drop. This design improves gas-liquid contact and mass transfer efficiency in packed columns.

Manufactured by Pingxiang Daier Separation Tech Co., Ltd. in Pingxiang, Jiangxi, China. Taiwan-invested facility with ISO 9001:2015 certification.

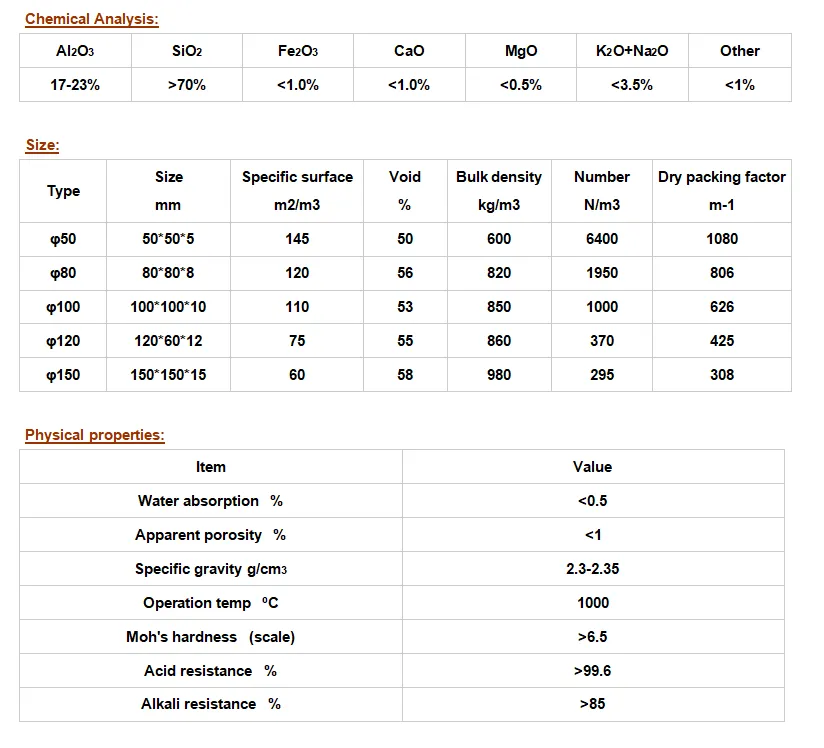

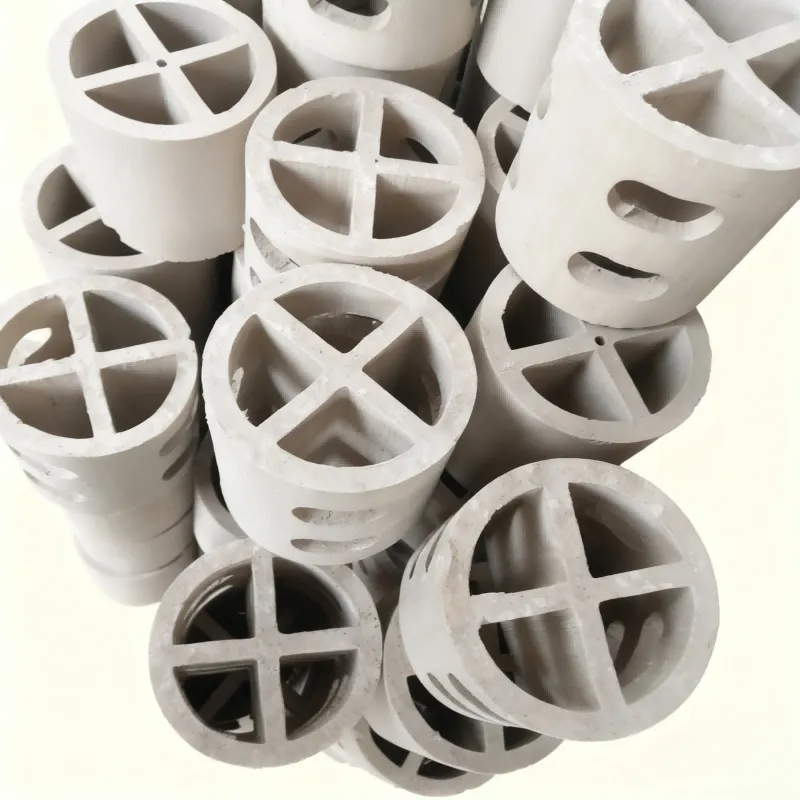

daier-ceramic-cross-partition-ring-bulk-stacked-application.png.pngdaier Ceramic cross Ring Specifications.png

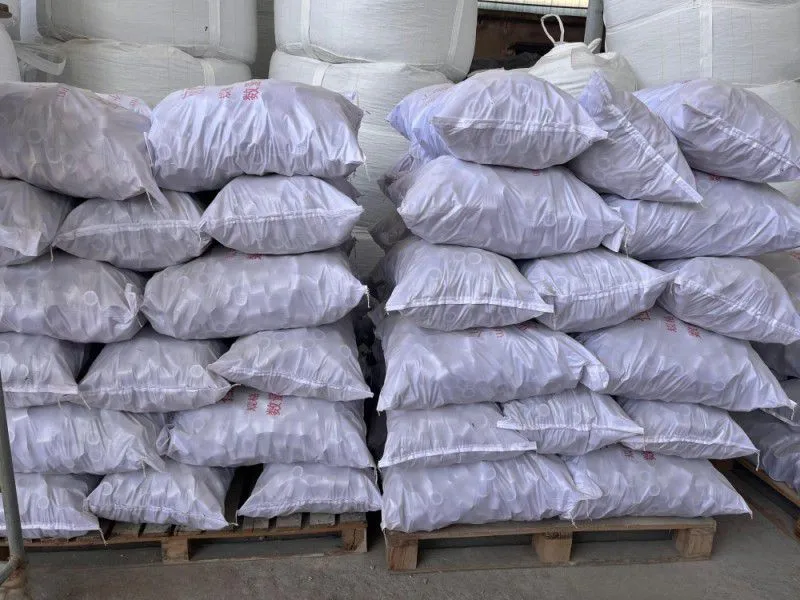

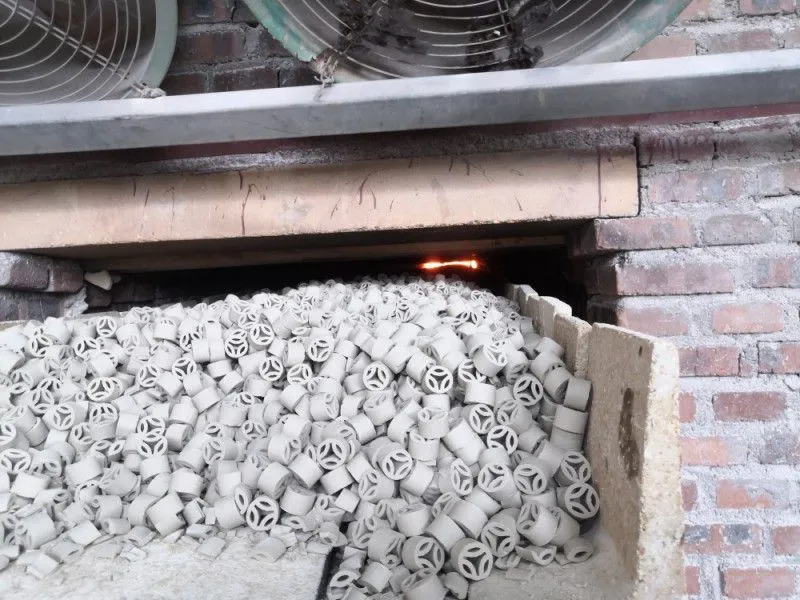

6 daier chemical packing (38).jpg.webp1daier chemical packing (46).jpg.webp

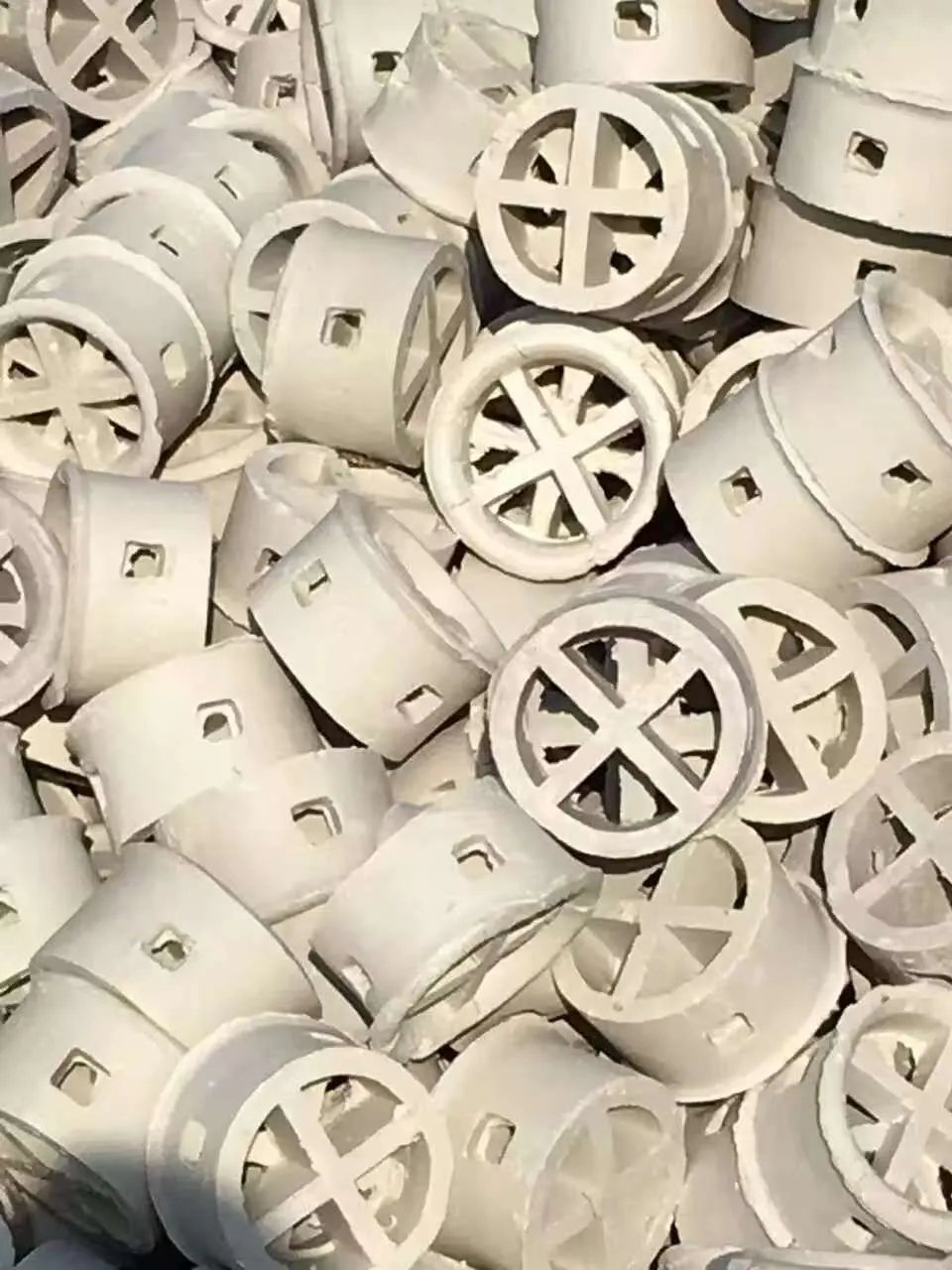

daier-ceramic-structured-packing-warehouse-storage (18).jpg.webpdaier-metal-structured-packing-high-efficiency-mass-transfer (1).png

Contact Engineering Support

For sizing recommendations, HETP calculations, or pressure drop estimates based on your specific process conditions, contact Pingxiang Daier Separation Tech Co., Ltd. engineering team with your tower diameter, packing height, gas and liquid loads, and operating temperature.

Pingxiang Daier Separation Tech Co., Ltd.
Pingxiang, Jiangxi, China
Email: nina@pxdaier.com

Product Tags: ceramic cross partition ring , ceramic random tower packing , acid resistant ceramic packing
