Anping Xinye Metal Wire Mesh Products Co., Ltd, located in Hengshui, Hebei, China, is a professional manufacturer with over 20 years of experience in wire mesh production. Our 201, 304, 316 Stainless Steel Welded Woven Filter Wire Mesh is engineered for high-performance industrial filtration, combining the strength of welded construction with the precision of woven patterns. This mesh offers excellent corrosion resistance, mechanical stability, and consistent filtration efficiency, making it an ideal choice for demanding environments such as petrochemical, pharmaceutical, food processing, and water treatment industries.
Our product is manufactured using advanced automatic welding machines and strict quality control processes to ensure uniform openings and reliable performance. Available in three stainless steel grades—201, 304, and 316—each offers distinct advantages: 201 provides cost-effective resilience, 304 offers standard corrosion resistance, and 316 delivers superior protection against chlorides and acids. The welded woven structure ensures that the mesh retains its shape under high pressure and temperature, preventing deformation and extending service life.
Key Features & Technical Specifications
- Corrosion Resistance: Grade 316 offers excellent resistance to saltwater and acidic environments; grade 304 suitable for general industrial use; grade 201 for dry or less corrosive conditions.
- High Strength: Welded joints provide extra tensile strength, preventing the mesh from unraveling under mechanical stress.

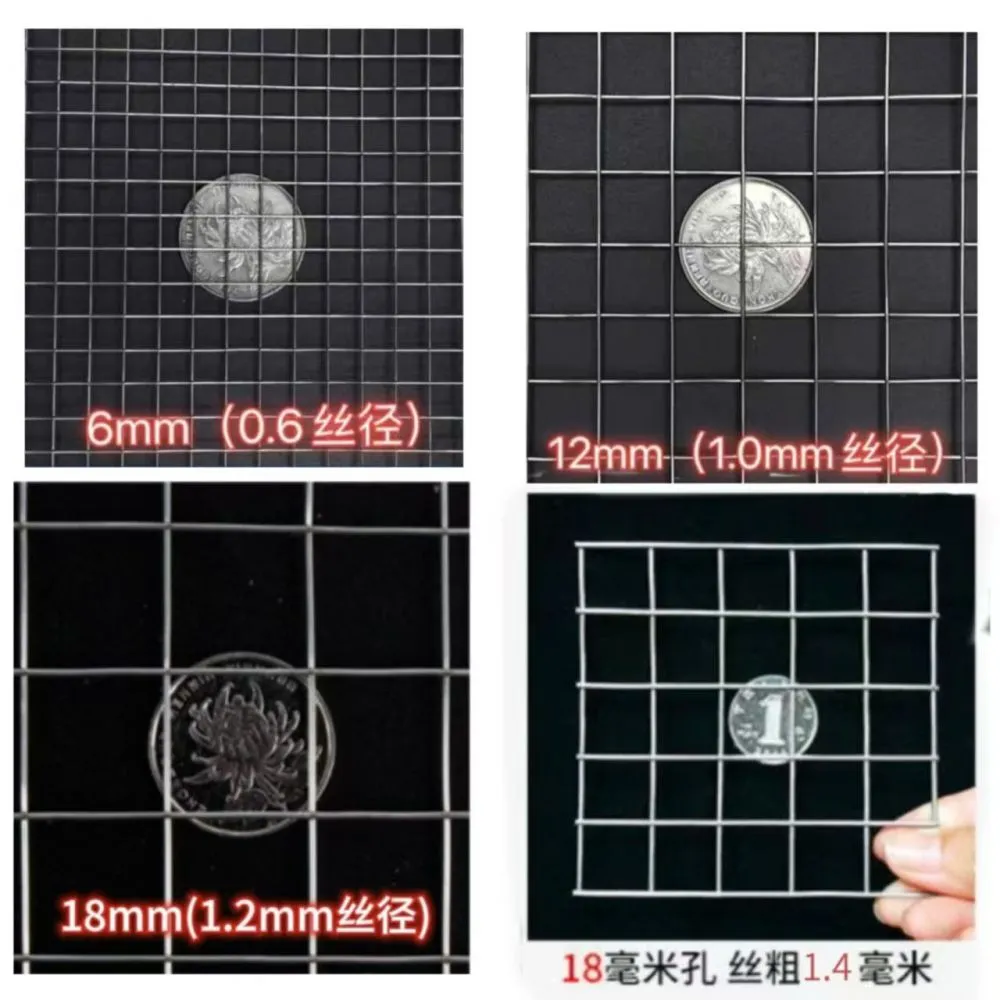

- Consistent Filtration: Precision weaving ensures uniform aperture sizes, ranging from 0.1mm to 10mm, achieving reliable particle separation.
- Temperature Tolerance: Can withstand operating temperatures up to 800°C (for 304/316), suitable for hot gas or liquid filtration.
- Easy Cleaning & Maintenance: Smooth surface allows backwashing, ultrasonic cleaning, or chemical cleaning without damage.
- Customizable Dimensions: Available in rolls, sheets, or cut-to-size panels; edges can be selvedged, welded, or trimmed per request.
- Surface Treatments: Optional galvanized or PVC coating for additional protection in harsh environments.
Technical Specifications (Typical)
| Parameter | Available Range | Standard Tolerance |
|---|---|---|
| Mesh Count (per inch) | 2 - 200 mesh | ±5% |
| Wire Diameter | 0.1mm - 5.0mm | ±0.02mm |
| Opening Size | 0.025mm - 12.7mm | ±0.05mm |
| Roll Width | 0.5m - 2.5m | Customizable |
| Maximum Operating Temperature | Up to 800°C (304/316) | Dependent on environment |
Advantages & Customer Benefits
- Durability: The welded woven structure resists distortion and fatigue, ensuring long-term performance even in high-vibration systems.
- Versatility: Suitable for both liquid and gas filtration, as well as sifting, sorting, and sieving applications.
- Cost-Efficiency: Grade 201 offers a budget-friendly option without sacrificing basic strength; grade 316 provides premium protection for critical processes.
- Enhanced Flow Rate: The open area percentage can be customized to optimize flow while maintaining filtration precision.
- Compliance with Standards: Manufactured in accordance with international quality norms (e.g., GB/T 5330, ASTM E2016), ensuring consistency.
- Packaging Excellence: Each roll is securely packed with moisture-proof materials to prevent damage during transit.
At Anping Xinye, we have a dedicated team of engineers who can assist with custom mesh designs for specific filtration requirements. Our factory covers an area of 20,000 square meters and is equipped with 50 advanced welding looms, capable of producing 500,000 square meters of mesh per month. We have supplied products to clients in over 30 countries, including Germany, the United States, and Japan. With a strong emphasis on quality control, we conduct thorough inspections for every batch, including tensile tests, aperture measurement, and corrosion resistance checks.
Ready to optimize your filtration system? Contact us today for a quote or sample! Our professional sales team will respond within 24 hours. We offer free samples for qualified inquiries and can provide customized solutions to meet your specific needs.
Frequently Asked Questions (FAQ)
-
Q: What is the difference between 201, 304, and 316 stainless steel mesh?
A: 201 is a cost-effective grade with moderate corrosion resistance, suitable for dry environments. 304 offers good general corrosion resistance, ideal for most industrial applications. 316 contains molybdenum, providing superior resistance to chlorides and acids, making it suitable for marine or chemical processing. -
Q: Can you produce custom mesh sizes?
A: Yes, we can customize mesh count, wire diameter, and sheet dimensions according to your specifications. Minimum order quantity may apply for custom sizes, but we are flexible. -
Q: How is the mesh packaged for export?
A: We pack the mesh in heavy-duty plastic film, then in woven bags or wooden crates, depending on the size. Rolls are secured with straps to prevent unwinding. We also offer anti-rust paper for long-distance shipping. -
Q: What is the lead time for orders?
A: For standard sizes, lead time is 5-7 working days. For custom orders, it is typically 10-15 working days, depending on complexity and quantity. -
Q: Do you provide samples?
A: Yes, we offer free samples for standard sizes (up to 200x200mm) with the customer covering shipping costs. For customized samples, there may be a small fee, refundable upon bulk order. -
Q: Can the mesh be used for food processing?
A: Yes, our 304 and 316 stainless steel meshes are food-grade and can be used for food filtration, such as in juice, beer, or oil industries. Grade 201 is not recommended for direct food contact. -
Q: How do I clean the mesh?
A: The mesh can be cleaned by backwashing, ultrasonic cleaning, or using mild chemical cleaners. Avoid abrasive tools that may damage the surface. For heavy fouling, soak in a suitable solvent. -
Q: What is the maximum width you can produce?
A: Our standard maximum width is 2.5 meters. For wider widths, we can offer seamed or joined panels, but please consult our technical team for feasibility.
All information provided is based on our manufacturing capabilities. Actual performance may vary depending on application conditions. For specific requirements, please contact us for detailed technical support.
