Home > Electrical & Electronics > Electronic Tube & Transistor > Laser Diode > 1550.12nm ITU Grid Channel 34 DWDM DFB Butterfly Laser, 10mW or 20mW Analog CATV Laser Diode With TEC, Monitor PD & FC/APC Pigtail

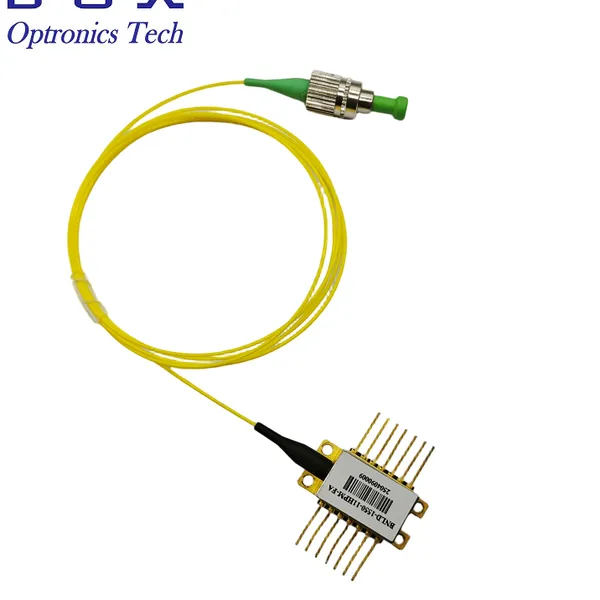

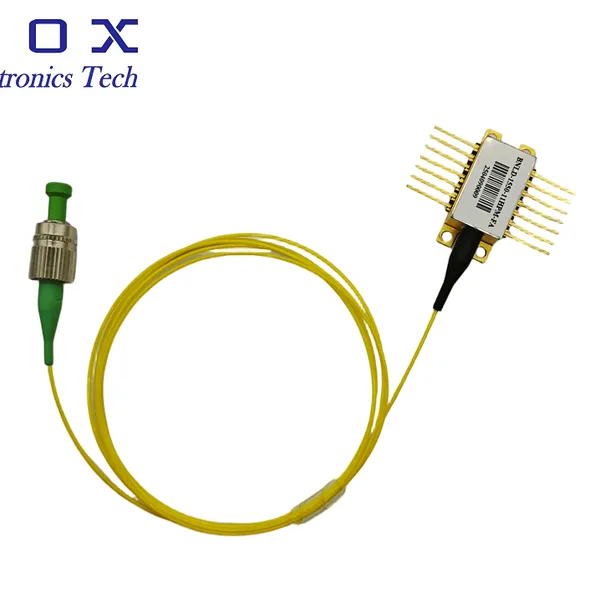

1550.12nm ITU Grid Channel 34 DWDM DFB Butterfly Laser, 10mW or 20mW Analog CATV Laser Diode With TEC, Monitor PD & FC/APC Pigtail
Product Spotlights
Box Optronics, a professional optoelectronic component manufacturer and supplier, offers the 1550.12nm DWDM DFB Laser (ITU Grid Channel 34), a high-performance analog laser designed for CATV broadcast networks and fiber-constrained optical communication systems. Featuring advanced analog chip design, standard ITU grid wavelength, 10mW or 20mW optical output power, and an integrated optical isolator.
With integrated TEC, thermistor, and monitor photodiode.
With integrated TEC, thermistor, and monitor photodiode.
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
