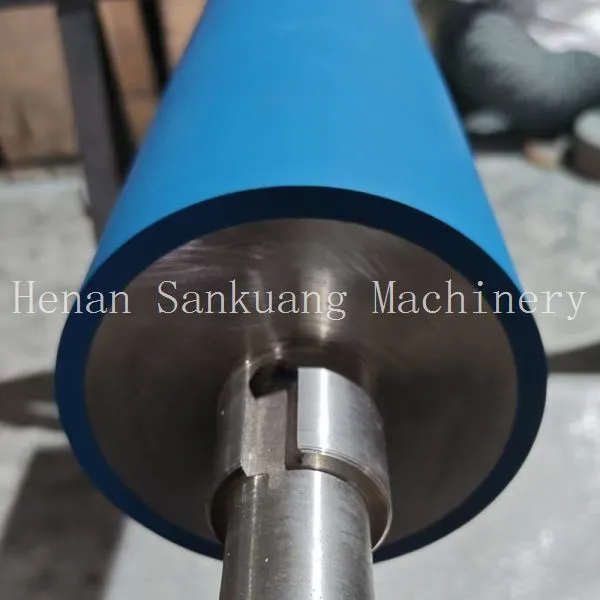

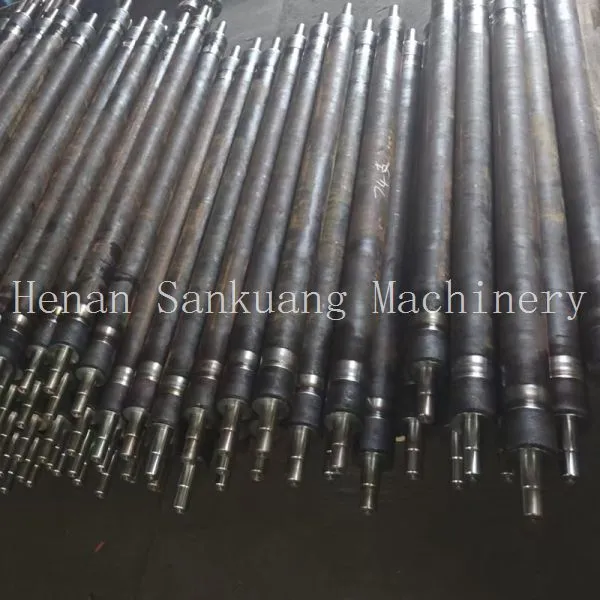

Help CenterRegister Roller Used in Packaging Machinery, High Precision Shaft, DIN Standard
Product Spotlights
Related Products
-
Automatic Register Roller With PLC Control, Servo Motor Driven, Rubber Coated SurfaceNegotiableMOQ: 1 Piece -
Rubber Coated Deflection Roller With 40Cr Steel Shaft, 80 Shore A, Length 2000mm MaxNegotiableMOQ: 1 Piece
-
Free Technical Support for Register Roller, Custom Shaft Length, 24/7 After-Sale ServiceNegotiableMOQ: 1 Piece
-
Customizable Deflection Roller Assembly, Rubber Coated Shaft, CNC Machined, 0.01mm AccuracyNegotiableMOQ: 1 Piece
-
1-Year Warranty Deflection Roller, Rubber Coated Shaft, Mill Test Report IncludedNegotiableMOQ: 1 Piece
Henan San Kuang Machinery Technology Co., Ltd. has been a trusted manufacturer of precision components since 2014. Our Register Roller Used in Packaging Machinery, High Precision Shaft, DIN Standard is engineered to deliver exceptional accuracy and durability for demanding packaging applications. With a factory spanning 10,000–30,000 square meters and an annual export value exceeding US$2.5 million, we produce rollers that meet international standards and exceed customer expectations. This roller is designed to ensure perfect registration in packaging lines, reducing waste and improving productivity.
Key Features & Technical Specifications
- High Precision Shaft: Manufactured with CNC machines to achieve runout tolerance ≤ 0.005 mm, ensuring consistent alignment and minimal vibration.
- DIN Standard Compliance: Manufactured according to DIN 6885, DIN 5480, and other relevant German standards, guaranteeing interchangeability and reliability.
- Durable Material Options: Available in high-grade alloy steel, stainless steel (304/316), or customized materials to suit corrosive environments or food-grade applications.
- Surface Treatments: Hard chrome plating (up to 50 µm thickness) provides excellent wear resistance and low friction. Optional coatings like ceramic or Teflon are available for special requirements.
- Heat Treatment: Induction hardening or carburizing to achieve surface hardness HRC 58–62, extending service life under heavy loads.
- Customizable Dimensions: Diameter from 20 mm to 200 mm, length up to 3000 mm, with keyways, flats, or threaded ends as per your drawings.
- Balancing: Dynamic balancing (G2.5 or better) to minimize vibration at high rotational speeds.
| Parameter | Value |
|---|---|
| Diameter Tolerance | h6 to h7 (ISO) or as per DIN |
| Roundness | ≤ 0.002 mm |
| Straightness | ≤ 0.01 mm/m |
| Surface Roughness | Ra ≤ 0.4 µm (after polishing) |
| Hardness (core) | HRC 30–35 |
| Operating Temperature | -20°C to +150°C (standard) |
Benefits for Your Packaging Line
- Improved Registration Accuracy: The ultra-precise shaft minimizes runout, ensuring that printed patterns or labels align perfectly on packages.
- Reduced Downtime: Robust construction and heat-treated surfaces resist wear, allowing continuous operation with minimal maintenance.
- Compatibility: Designed to fit standard packaging machinery frames and bearing housings, easy to retrofit or replace existing rollers.
- Versatility: Suitable for various packaging types including film, paper, cardboard, and flexible materials.
- Long Service Life: High-quality materials and coatings protect against corrosion and abrasion, lowering total cost of ownership.
Our rollers undergo rigorous quality control at every stage: raw material inspection, in-process dimensional checks, and final testing with CMM (coordinate measuring machine). Each roller is supplied with a test report upon request.
Why Choose Henan San Kuang Machinery?
With over a decade of experience, we have built a strong reputation in the global market. Our factory is certified with multiple management system standards including ISO9001, ISO14000, OHSAS18001, HACCP, SA8000, and others (more than 15 certifications), reflecting our commitment to quality, environment, and social responsibility. We export to North America, South America, Europe, Southeast Asia, Africa, and Oceania, with annual export value between US$2.5 million and US$5 million. Our team of 51–100 skilled employees ensures that every roller meets your exact specifications. We ship from major ports including Shanghai, Lianyungang, Qingdao, and Tianjin, with flexible delivery terms.
We understand that packaging machinery requires precision components that perform reliably under high-speed conditions. Our register roller is designed to meet those demands. Contact us today to discuss your custom requirements or request a quotation. We are confident that our product quality and service will exceed your expectations and help your packaging line achieve higher efficiency.
Frequently Asked Questions
-
Q: What is the typical lead time for a custom register roller?
A: Lead time depends on complexity and quantity. Standard sizes may ship within 10–15 working days; custom orders typically require 20–30 working days. We can expedite for urgent projects upon request. -
Q: Can you produce rollers with non-standard diameters or lengths?
A: Yes, we specialize in custom dimensions. Please provide your drawing or specifications, and we will produce exactly to your requirements. -
Q: Is the roller balanced? What balance grade is available?
A: Dynamic balancing is standard. We can achieve balance grade G2.5 or better as per ISO 1940. For high-speed applications, G1.0 is available upon request. -
Q: Do you offer surface coatings other than chrome plating?
A: Yes, we offer coatings such as ceramic (for wear resistance), Teflon (for non-stick), and electroless nickel (for corrosion resistance). Please inquire about your specific needs. -
Q: What is the maximum operating speed for this roller?
A: The maximum speed depends on diameter, length, and balancing. Typically, our rollers can operate safely up to 3000 RPM with proper balancing. Contact our engineers for speed recommendations. -
Q: How do you ensure the DIN standard is met?
A: We use certified gauges and follow strict manufacturing procedures aligned with DIN specifications. Each roller is inspected for dimensional accuracy, surface finish, and hardness, with reports provided. -
Q: Can you provide samples for testing before bulk order?
A: Yes, sample orders are welcome. We can produce a prototype for your evaluation. Sample cost and shipping are negotiable. -
Q: What payment terms do you accept?
A: We accept T/T, L/C, and other common trade terms. For long-term cooperation, flexible payment options can be discussed.
