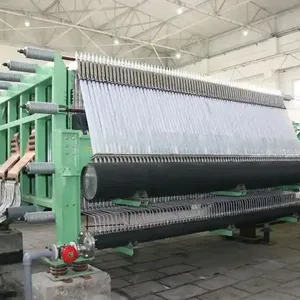

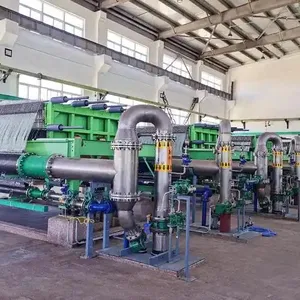

Help CenterIon‑Exchange Membrane Chlor‑Alkali System for Caustic Soda Production
Related Products
-
Chlor‑Alkali Hydrochloric Acid Synthesis System for Industrial ManufacturingUS$ 200000 - 2000000MOQ: 1 Set -
Chlorine-alkali Plant EPCUS$ 100000 - 2000000MOQ: 1 Set
-
99% Alkali Tablets EPC ProjectUS$ 100000 - 2000000MOQ: 1 Set
-
33% Hydrochloric Acid Equipment ManufacturerUS$ 100000 - 2000000MOQ: 1 Set
-
Liquid Chlorine EquipmentUS$ 100000 - 2000000MOQ: 1 Set
Features&Advantages
25 years of experience
Low power consumption and high cost-effectiveness
Full PLC automatic control
Customized design according to customer requirements

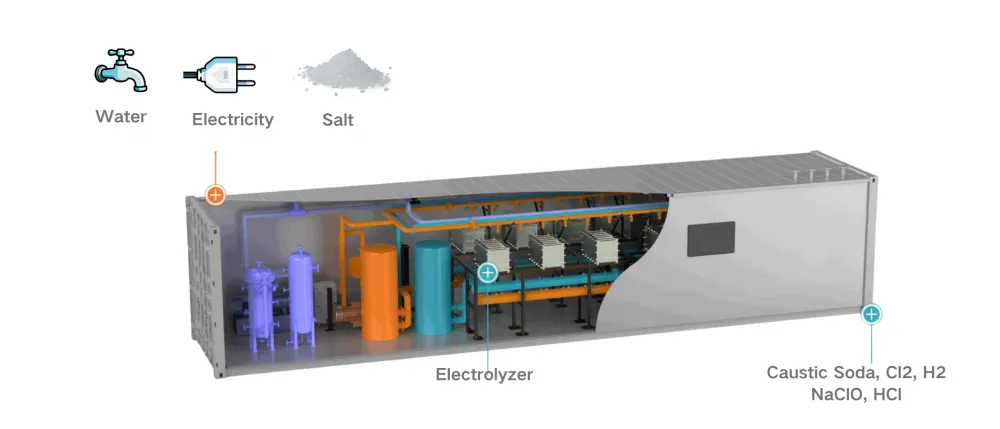

Skid-mounted design
Salt purity requirement >89% to reduce salt investment
Product Overview
This product adopts ion-exchange membrane electrolysis technology to stably produce NaOH with a concentration of 30%-32%. According to the required output, the NaOH obtained from salt water electrolysis will be passed through an evaporator to obtain caustic soda of different concentrations (32%, 50%, 60%, 99%). The evaporator is made of N02201 pure nickel heat exchange tube + nickel-steel composite plate cylinder. The whole system adopts skid-mounted design and is equipped with a full PLC automatic control system. The concentration of the obtained caustic soda can be customized according to user needs.

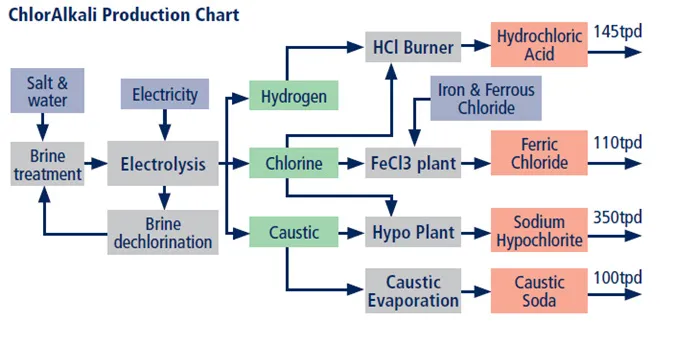

System Process Flow
1. Brine Preparation Unit
Industrial refined salt enters the salt saturator and mixes with water to form saturated brine.
2. Multi-stage Filtration and Purification System
The brine goes through multi-stage filtration and purification to remove impurities in the water.

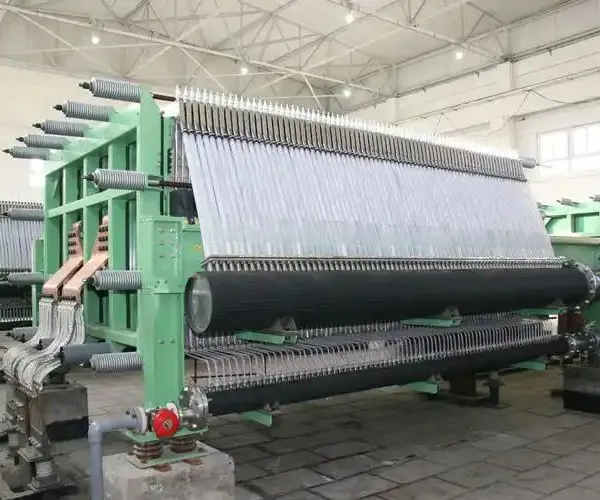

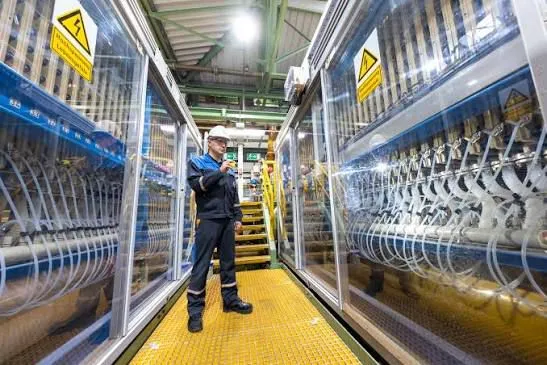

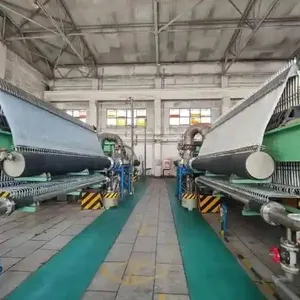

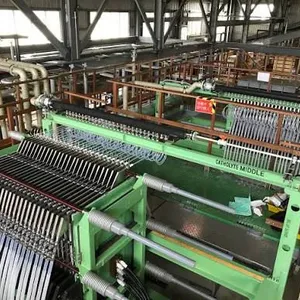

3. Core Reaction in Ion-exchange Membrane Electrolyzer
After purification and filtration, the brine enters the ion-exchange membrane electrolyzer and then flows into the anode chamber. There is an ion-exchange membrane in the anode chamber that allows sodium ions to enter the cathode chamber while blocking chloride ions. Chloride ions are electrolyzed in the anode chamber to generate chlorine gas. Sodium ions and water are electrolyzed in the cathode chamber to generate sodium hydroxide and hydrogen. At the same time, the chloride ions in the anode chamber also react with the residual sodium ions to generate sodium chloride, which can be recycled after dechlorination and denitration.
4. NaOH Solution Entering Open Pan or Evaporator
We provide customized services according to the caustic soda concentration required by customers. The evaporator made of N02201 pure nickel heat exchange tube + nickel-steel composite plate cylinder delivers higher production capacity. If users need caustic soda flakes, a flaker is required to produce the flake product.
5. Pickling System for Electrolyzer Pickling
The electrolyzer is pickled with hydrochloric acid at a concentration of 8% to remove calcium and magnesium ion precipitates generated during the reaction, prevent scaling, and extend the service life of the electrolyzer.
6. Ventilation System
A fan is used to dilute the hydrogen generated from the reaction before venting it out to ensure safety.
Technical Indicators
Raw materials |
water, salt, electricity |
Products |
hydrogen, sodiumhydroxide, chlorine |
Adjustable concentration |
32%-99% caustic soda |
Salt consumption |
2kg/CL2.kg |
Power consumption |
2.5kWh/CL2.kg |
Application Scenarios

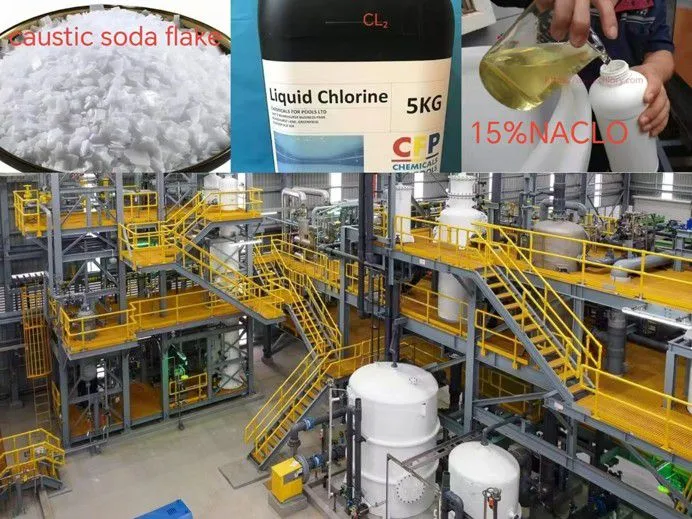

This ion-exchange membrane chlor-alkali process is widely used in industries including papermaking, industrial water treatment, chemical processing, textile printing and dyeing.
Company Advantages
Boasting 25 years of professional industry experience in production and supply, BLUEWAV factory delivers premium, cost-effective chemical products with reliable quality. Worldwide exported to more than 50 countries, including Italy, USA, Saudi, Africa and other countries, and some foreign companies are our agents locally. Equipped with fully automatic production systems and scientific modular production line design, we achieve stable output, high efficiency and low energy consumption while strictly complying with industrial standards. Different from ordinary manufacturers, BLUEWAV provides flexible customized services tailored to diverse customer needs on product specifications, packaging and solutions. With direct factory pricing and optimized production processes, we help clients cut procurement costs and obtain high-quality, stable chemical supplies with comprehensive professional support.
