Features&Advantages
1. Low power consumption
2. More cost effective
3. 25 years experience
4. PLC Automatic and Skid mounted design
5. Electrolyzer service life >5 years guaranty
6. PPE/CTE/MESH all available
7. Offshore skid design experience

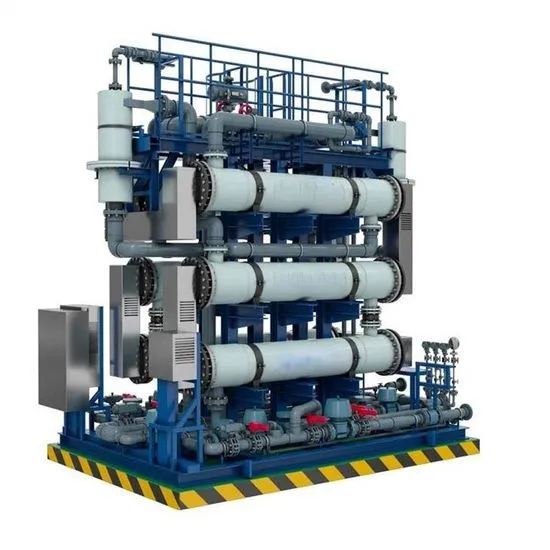

Product Overview

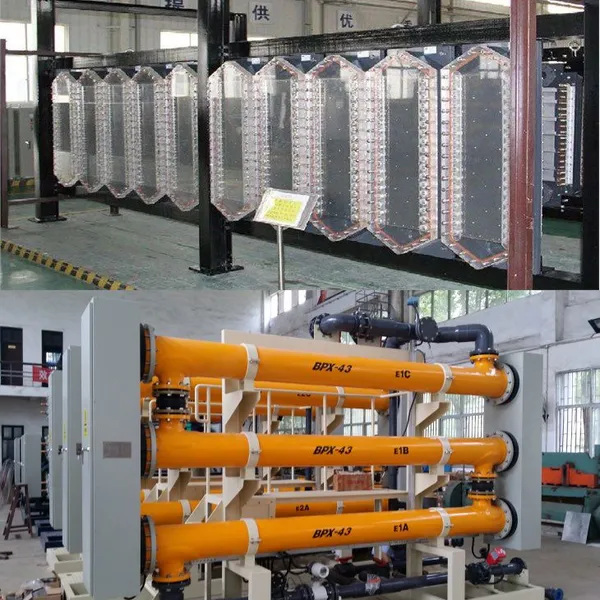

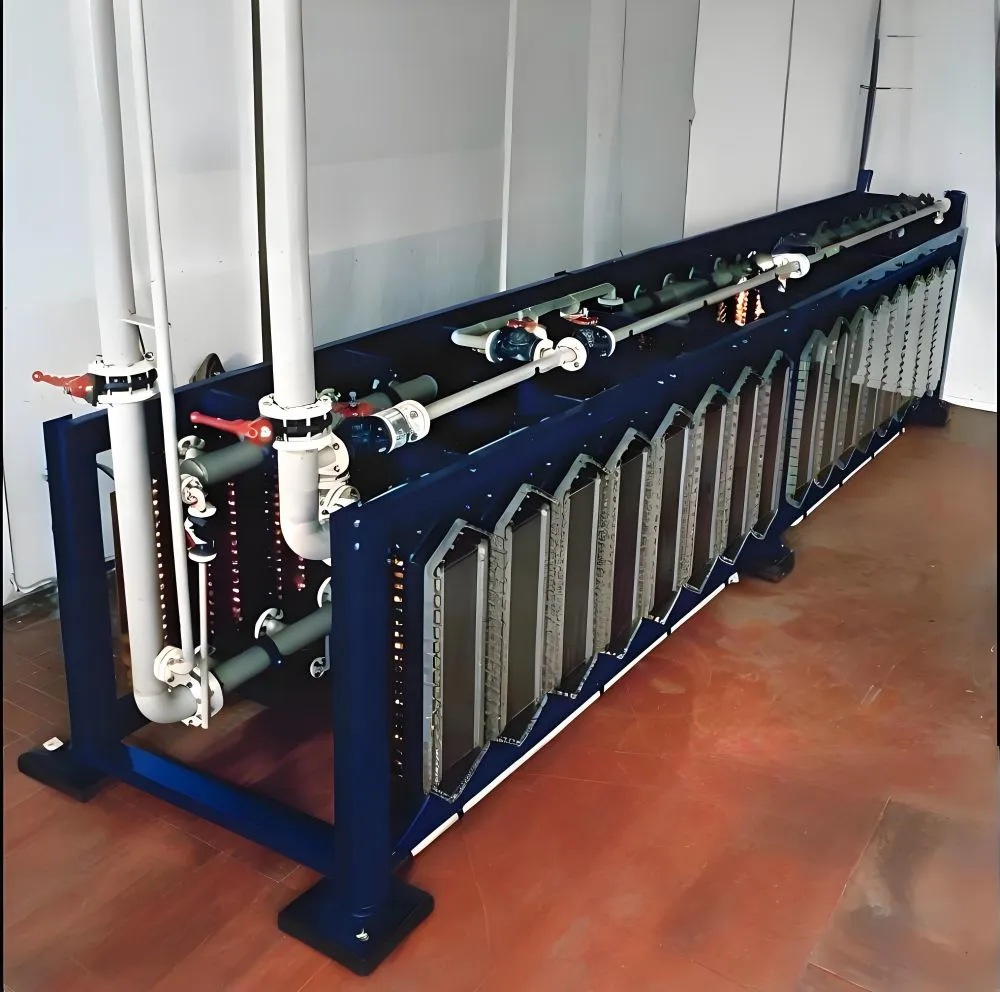

Different from traditional sodium hypochlorite generators that adopt prepared brine, this equipment directly electrolyzes natural seawater. We can provide three types of seawater electrolyzers including MESH, CTE and PPE. The whole system is equipped with a full PLC automatic control system, stably producing sodium hypochlorite solution with available chlorine concentration of 0.1%-0.2%. The entire system adopts skid-mounted design and complies with marine environmental standards.

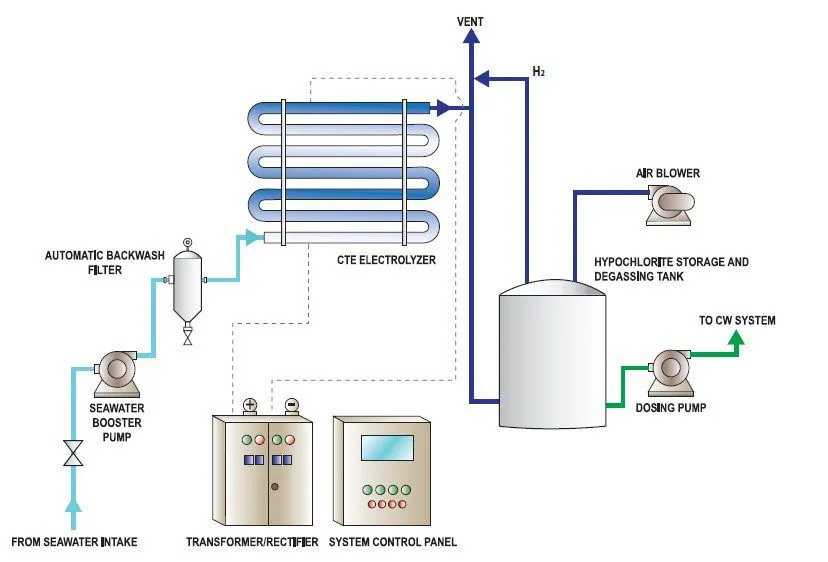

System Process Flow
1. Booster pump+ Filtration
Seawater is extracted, pressurized and stabilized, and then passed through a multi-stage precision filter. This effectively removes algae, sediment, suspended solids, and organic impurities, thereby protecting the core electrolysis components.
2. Core Reactions in the Electrolyzer
After filtration, the seawater enters the electrolyzer. A transformer and rectifier supply the DC voltage and current required for the electrolysis process, which electrolyzes water and chloride ions to produce sodium hypochlorite and hydrogen gas.
3. Automatic Liquid Storage and Hydrogen Degassing Metering
The electrolyzed raw sodium hypochlorite is stored in a sealed, corrosion-resistant tank for stabilization, while the by-product hydrogen gas is collected, diluted, and safely vented.
4. Metering Dosing System
Shock dosing pump and continuous dosing pump are both available according to end user requirement.
5. Automatic Acid Washing and Descaling
The acid washing system uses 8% hydrochloric acid to descale the calcium and magnesium precipitates formed during the reaction, thereby extending the service life of the electrolyzer.
Technical Specifications
Raw Materials |
Seawater and Electricity |
Products |
Sodium Hypochlorite Solution and Hydrogen |
Tech |
Electrolyzed Seawater Chlorination System |
Adjustable Concentration |
0.02%-0.2% |
Salt Consumption |
2kg/CL2.kg |
Power Consumption |
4KWh/CL2.kg |
Model List
Model |
BSE-1 |
BSE-20 |
BSE-50 |
BSE-70 |
BSE-90 |
BSE-130 |
BSE-220 |
Production of available chlorine |
1KG/H |
20KG/H |
50KG/H |
70KG/H |
90KG/H |
130KG/H |
220KG/H |
Concentration of available chlorine |
1-2G/L |
1-2G/L |
1-2G/L |
1-2G/L |
1-2G/L |
1-2G/L |
1-2G/L |
Current efficiency |
>80% |
>80% |
>80% |
>80% |
>80% |
>80% |
>80% |
DC consumption (kwh.kg.Cl₂) |
|||||||
Brine consumption (kg/kg.Cl₂) |
— |
— |
— |
— |
— |
— |
— |
Cathode lifetime(year) |
≥5 |
≥5 |
≥5 |
≥5 |
≥5 |
≥5 |
≥5 |
External size(mm) |
1325*560*1340 |
3800*950*1730 |
4300*1200*2800 |
4800*2250*2800 |
5100*2400*2900 |
5200*2600*3200 |
6500*1835*4723 |
Area of chlorine production room |
27m² |
216m² |
270m² |
297m² |
330m² |
388m² |
518m² |
Application Scenarios
This seawater electrolysis sodium hypochlorite generator is specially developed for marine and coastal water disinfection conditions. It is widely applied in offshore drilling platforms, coastal nuclear power plants, marine engineering equipment, port water areas and coastal industrial circulating water systems.
Company Advantages
Boasting 25 years of professional industry experience in production and supply, ZLN factory delivers premium,cost-effective chemical products with reliable quality. Worldwide exported to more than 50 countries, including Italy, USA, Saudi, Africa and other countries and some foreign companies are our agents locally. Equipped with fully automatic production systems and scientific modular production line design, we achieve stable output, high efficiency and low energy consumption while strictly complying with industrial standards. Different from ordinary manufacturers, ZLN provides flexible customized services tailored to diverse customer needs on product specifications, packaging and solutions. With direct factory pricing and optimized production processes, we help clients cut procurement costs and obtain high-quality, stable chemical supplies with comprehensive professional support.
