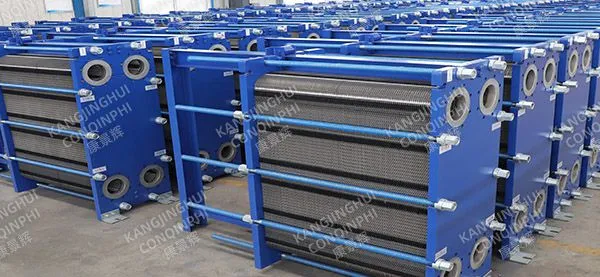

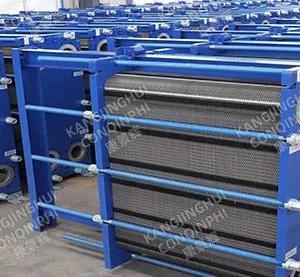

Help CenterGasketed Plate Heat Exchanger With NBR Gaskets, 304 Stainless Steel, 10 Bar Pressure, 1.5m² Heat Transfer Area
Product Spotlights
Related Products
-
M10 Gasketed Plate Heat Exchanger, 304 Stainless Steel Plates, 20 Bar Working Pressure, 0.5mm Plate ThicknessUS$ 730 - 9860MOQ: 1 Combo -
Gasketed Plate Heat Exchanger Factory Direct, Mill Test Report Included, 316L Plates, 20 Bar, CustomizableUS$ 730 - 9860MOQ: 1 Combo
-
Gasketed Plate Heat Exchanger for HVAC Systems, 304 Stainless Steel, 10 Bar, 180°C, Flanged ConnectionsUS$ 730 - 9860MOQ: 1 Combo
-
Gasketed Plate Heat Exchanger for Dairy Processing, 316L Stainless Steel, Sanitary Design, 15 Bar, 150°CUS$ 730 - 9860MOQ: 1 Combo
-
Compact Gasketed Plate Heat Exchanger, 0.2mm Plate Gap, 304 Stainless Steel, 15 Bar, 120°CUS$ 730 - 9860MOQ: 1 Combo
As a leading manufacturer from Qingdao Conqinphi Environmental Technology Group Co., Ltd., we are proud to present our Gasketed Plate Heat Exchanger with NBR Gaskets, 304 Stainless Steel, 10 Bar Pressure, 1.5m² Heat Transfer Area. This compact yet robust heat exchanger is engineered to deliver high thermal efficiency, easy maintenance, and long service life for diverse industrial applications. Built with premium 304 stainless steel plates and durable NBR gaskets, it ensures reliable performance under pressures up to 10 bar, making it an ideal choice for heating, cooling, and heat recovery processes. With a heat transfer area of 1.5m², this unit offers a cost-effective solution for small to medium-scale thermal management needs.
Key Features & Technical Specifications
- High-Quality Materials: Plates made of 304 stainless steel (AISI 304) provide excellent corrosion resistance and durability, suitable for water, oils, and mild chemicals.
- NBR Gaskets: Nitrile rubber gaskets offer good resistance to oils, fats, and moderate temperatures (up to 120°C), ensuring a tight seal and easy replacement.
- Rated Pressure: Designed for a maximum working pressure of 10 bar, meeting the requirements of many industrial loops.
- Heat Transfer Area: 1.5m² effective area delivers efficient heat exchange in a compact footprint, ideal for space-constrained installations.
- Modular Design: The gasketed plate construction allows for easy disassembly, cleaning, and capacity expansion by adding or removing plates.
- Versatile Connections: Available with threaded or flanged connections to suit your piping system (customizable upon request).
- Low Pressure Drop: Optimized plate pattern minimizes pressure drop while maintaining high turbulence for enhanced heat transfer.
| Parameter | Value |
| Plate Material | 304 Stainless Steel |
| Gasket Material | NBR (Nitrile) |
| Max Working Pressure | 10 Bar |
| Heat Transfer Area | 1.5 m² |
| Max Operating Temperature (NBR) | 120°C (150°C with reinforced gaskets optional) |
| Plate Thickness | 0.5 mm (standard) |
| Connection Size | 1" to 2" (customizable) |
Benefits for Your Business
- Energy Savings: High heat transfer coefficient (up to 6000 W/m²·K) reduces energy consumption and operating costs.
- Easy Maintenance: Gasketed design allows quick access to plates for cleaning or replacement, minimizing downtime.
- Compact Footprint: Occupies minimal floor space compared to shell-and-tube exchangers with similar capacity.
- Scalability: Add or remove plates to adjust the heat transfer area as your process demands change.
- Wide Application: Suitable for HVAC, food processing, chemical, pharmaceutical, dairy, and marine industries.
- Cost-Effective: Lower initial investment and maintenance costs compared to brazed or welded plate heat exchangers.
Trust & Reliability
Qingdao Conqinphi Environmental Technology Group Co., Ltd., established in 2015, operates a state-of-the-art factory spanning 10,000–30,000 square meters. With over 200 skilled employees and an annual export value reaching US$10–50 million, we have supplied our heat exchangers to markets across North America, Europe, Asia, Africa, and Oceania. Our commitment to quality is reflected in our certifications including ISO9001, ISO14000, and OHSAS18001, ensuring that every unit meets rigorous international standards. We offer comprehensive after-sales support, including technical documentation, spare parts, and on-site assistance if needed.
Frequently Asked Questions (FAQ)
1. What fluids can be used with this heat exchanger?
This unit is compatible with water, water-glycol mixtures, oils, and many mild chemicals. For aggressive media, we recommend upgrading to 316L stainless steel or EPDM gaskets.
2. How do I clean the plates?
The gasketed design allows easy disassembly. Plates can be cleaned using a soft brush and mild detergent, or by chemical cleaning in place (CIP) if the system is arranged accordingly.
3. Can I increase the heat transfer area later?
Yes, the frame is designed to accommodate additional plates. Contact our technical sales team to confirm the maximum number of plates for your specific model.
4. What is the maximum temperature for NBR gaskets?
NBR gaskets can withstand continuous operating temperatures up to 120°C. For higher temperatures (up to 150°C), we offer optional high-temperature NBR or EPDM gaskets.
5. Is this heat exchanger suitable for potable water?
Yes, 304 stainless steel is food-grade and safe for potable water applications. We also provide HACCP-compliant models upon request.
6. How long does delivery take?
Standard lead time is 2–4 weeks, depending on order quantity and customization. Expedited shipping is available for urgent orders.
7. Do you provide a warranty?
We offer a 12-month warranty against manufacturing defects. Extended warranty options are available upon request.
8. Can I get a sample before ordering in bulk?
Yes, we provide samples for evaluation. Please contact us to discuss the sample policy and shipping costs.
Our Gasketed Plate Heat Exchanger is a reliable, efficient, and flexible solution for your heat transfer needs. Contact us today to request a quote or discuss your specific requirements. With our experienced team and global logistics network, we are ready to support your project from start to finish.
