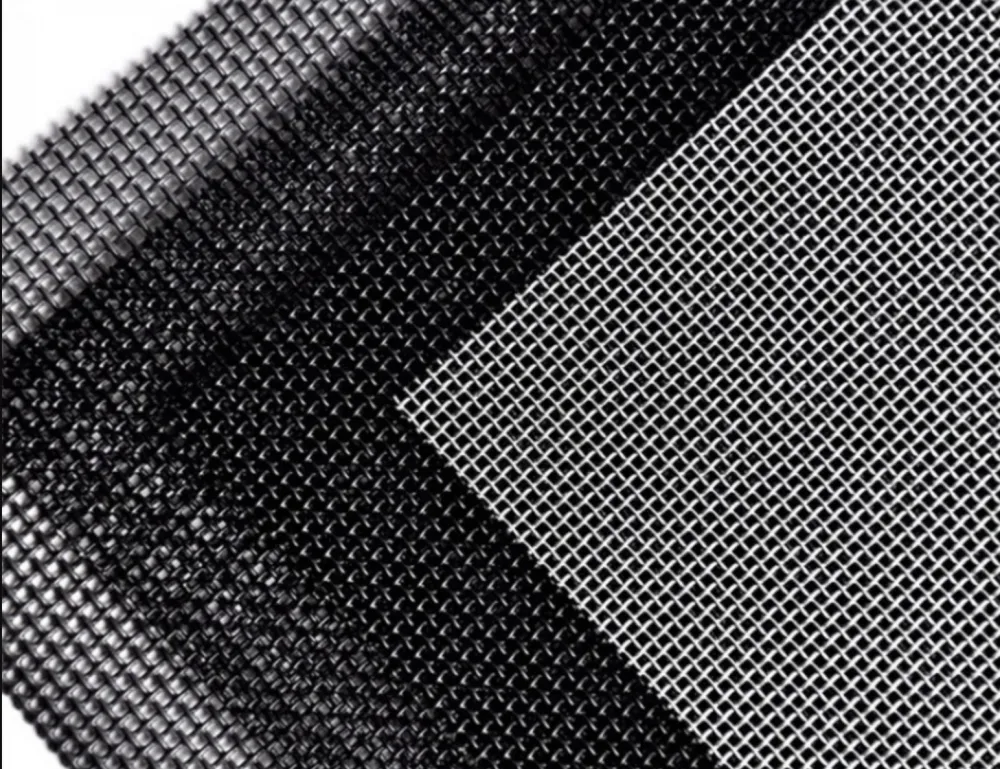

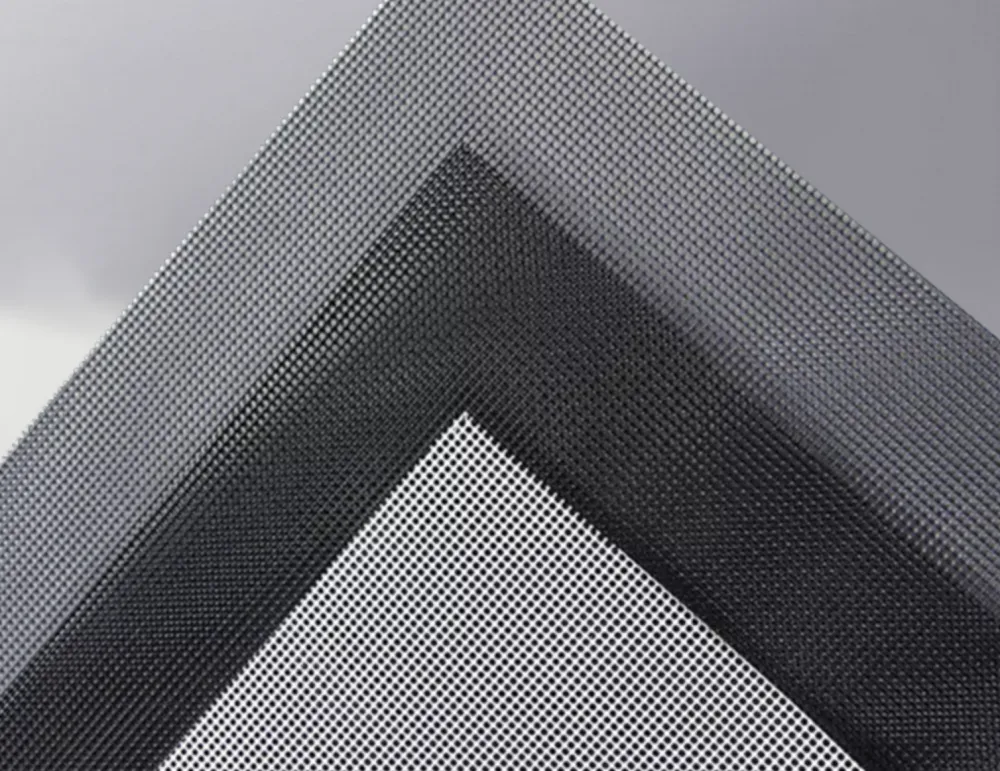

Help CenterHigh-Transparency Window Screen Mesh, 304 SS, 20x20 Mesh, 0.2mm Wire, Corrosion Resistant
Product Spotlights
Related Products
-
High-Transparency Mesh for Commercial Ventilation Systems, 20x20 Weave, UV Resistant, DurableNegotiableMOQ: 1 Square Meter -
Fiberglass High-Transparency Insect Screen Mesh, 18x14 Weave, UV Stabilized, 1.2m WidthNegotiableMOQ: 1 Square Meter
-
High-Transparency Window Screen Mesh, ISO 9001 Compliant, 18x16 Mesh, 30m Roll, Factory DirectNegotiableMOQ: 1 Square Meter
-
Aluminum Alloy High-Transparency Mesh, 0.5mm Aperture, 1.5m x 30m Roll, for VentilationNegotiableMOQ: 1 Square Meter
-
1-Year Warranty High-Transparency Window Screen Mesh, 304 Stainless Steel, Mill Test ReportNegotiableMOQ: 1 Square Meter
As a leading manufacturer with over 25 years of experience, Anping County Boli Hardware Wiremesh Products Factory is proud to introduce our High-Transparency Window Screen Mesh made from premium 304 stainless steel. This 20x20 mesh with 0.2mm wire diameter offers exceptional clarity, superior corrosion resistance, and long-lasting durability—ideal for both residential and commercial window screening. With an annual export value of US$5-10 million and a global shipping network covering North America, South America, Europe, Asia, Africa, and Oceania, we ensure reliable supply and consistent quality.
Key Features and Technical Specifications
- High Transparency: The 20x20 mesh count and 0.2mm wire diameter provide a very open area, allowing maximum airflow and natural light while keeping insects and debris out.
- Premium 304 SS Material: Made from AISI 304 stainless steel, offering excellent resistance to rust, corrosion, and weathering—even in coastal or humid environments.
- Precision Weave: Plain weave construction ensures uniform mesh openings and consistent strength across the entire roll.
- Corrosion Resistant: The 304 stainless steel composition guarantees long service life without degradation, making it suitable for outdoor and industrial applications.
- Customizable Dimensions: Available in various widths and lengths (custom sizes upon request); can be cut to fit standard window frames or specialized openings.
- Easy Installation: Flexible yet sturdy mesh can be easily trimmed, stapled, or attached using standard screen frames and tools.
| Parameter | Specification |
|---|---|
| Material | 304 Stainless Steel |
| Mesh Count | 20x20 per inch |
| Wire Diameter | 0.2mm (0.008 inch) |
| Open Area | Approximately 69% |
| Weave Pattern | Plain Weave |
| Standard Width | 1m, 1.2m, 1.5m (customizable) |
| Roll Length | 30m, 50m, or custom |
Benefits for Your Applications
This high-transparency window screen mesh is designed to meet the demands of modern architecture and pest control. Its fine yet strong structure provides an unobtrusive view while effectively blocking mosquitoes, flies, and other small insects. The 304 stainless steel construction ensures that the screen will not rust, corrode, or degrade under UV exposure, making it a low-maintenance solution for windows, doors, air vents, and greenhouse enclosures. Additionally, the mesh is easy to clean—simply rinse with water or wipe with a damp cloth.
For B2B buyers, this mesh offers consistent quality and competitive pricing. Our factory in Hengshui, Hebei, China, has been producing wire mesh since 1998, and we export to over 10 global regions. With annual export value of US$5-10 million, we have the capacity to handle large-volume orders and tight deadlines. We ship from Tianjin, Qingdao, Shanghai, and Foshan ports, ensuring timely delivery to your doorstep.
Frequently Asked Questions (FAQ)
-
Q: What is the difference between 304 and 316 stainless steel for window screens?
A: 304 stainless steel offers excellent corrosion resistance for most environments, including coastal areas. 316 provides higher resistance to chlorides and saltwater, but our 304 mesh is sufficient for standard window screening and is more cost-effective. -
Q: Can this mesh be used for pet screens or doors?
A: Yes, the 20x20 mesh with 0.2mm wire is strong enough for standard door screens and pet-friendly applications, but for heavy-duty pet doors, a thicker wire mesh (e.g., 0.3mm) might be recommended. -
Q: Is the mesh easy to cut and install?
A: Absolutely. The plain weave stainless steel mesh can be cut with standard scissors or tin snips. It fits into aluminum or wood screen frames using spline rollers and spline cord. -
Q: What is the typical lead time for bulk orders?
A: For standard sizes, lead time is 10-15 days after deposit. Custom sizes may require 15-20 days. We work with efficient logistics to ensure fast shipping. -
Q: Do you offer samples before bulk purchase?
A: Yes, we provide free samples (A4 size or 1m x 1m) for quality evaluation. The buyer only needs to cover shipping cost. -
Q: How does the mesh perform in extreme weather conditions?
A: 304 stainless steel is highly durable and can withstand temperature fluctuations, rain, snow, and UV radiation without warping or corroding. It is suitable for both indoor and outdoor use. -
Q: Can I get custom mesh sizes for unusual window shapes?
A: Yes, we can manufacture custom widths and lengths up to 2m wide. Please provide your dimensions for a quotation. -
Q: What is the packaging method for export?
A: Each roll is wrapped in water-resistant paper, then packed in a sturdy polyweave bag or wooden pallet to prevent damage during transit. Custom packaging is also available.
With a track record of reliability since 1998, Anping County Boli Hardware Wiremesh Products Factory is your trusted partner for high-quality wire mesh products. Our 304 stainless steel window screen mesh combines high transparency, corrosion resistance, and easy installation—backed by decades of manufacturing expertise and a global supply chain. Contact us today for a quote or to request samples. We look forward to serving your business needs.
