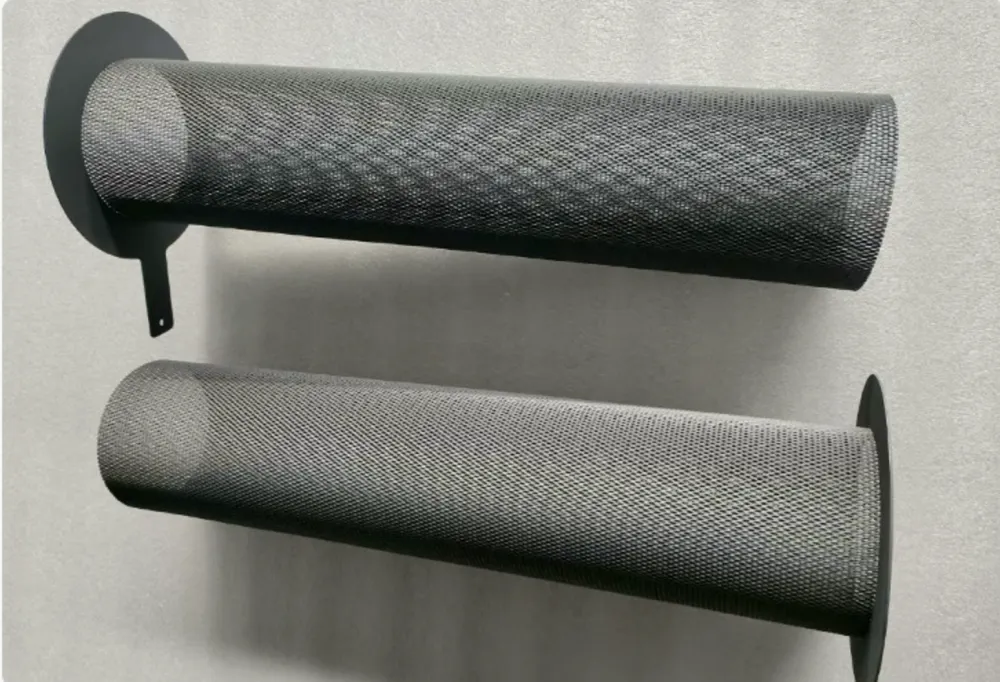

Precision Machined Ruthenium Iridium Oxide Anode Mesh Cylinder, ±0.1mm Tolerance, 200mm OD

Precision Machined Ruthenium Iridium Oxide Anode Mesh Cylinder, ±0.1mm Tolerance, 200mm OD thumbnail-3

Precision Machined Ruthenium Iridium Oxide Anode Mesh Cylinder, ±0.1mm Tolerance, 200mm OD thumbnail-4

Precision Machined Ruthenium Iridium Oxide Anode Mesh Cylinder, ±0.1mm Tolerance, 200mm OD thumbnail-5

Precision Machined Ruthenium Iridium Oxide Anode Mesh Cylinder, ±0.1mm Tolerance, 200mm OD photo-1

Precision Machined Ruthenium Iridium Oxide Anode Mesh Cylinder, ±0.1mm Tolerance, 200mm OD photo-2

Precision Machined Ruthenium Iridium Oxide Anode Mesh Cylinder, ±0.1mm Tolerance, 200mm OD photo-3

Precision Machined Ruthenium Iridium Oxide Anode Mesh Cylinder, ±0.1mm Tolerance, 200mm OD photo-4

Precision Machined Ruthenium Iridium Oxide Anode Mesh Cylinder, ±0.1mm Tolerance, 200mm OD photo-5

Product Spotlights

High-precision ±0.1mm machined ruthenium iridium oxide anode mesh cylinder (200mm OD) with durable MMO coating on titanium substrate. Offers low overpotential, excellent corrosion resistance, and long service life for electrolysis, electroplating, and water treatment. Customizable dimensions, factory-direct pricing, and 25+ years of manufacturing expertise ensure reliable performance and cost savings.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Titanium substrate with Ru-Ir oxide coating

Outer Diameter:

200mm

Tolerance:

±0.1mm

Contact Supplier Request Quote Chat Now

Anping County Boli Hardware Wiremesh Products Factory

2Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin shanghai qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Titanium substrate with Ru-Ir oxide coating

Outer Diameter 200mm

Tolerance ±0.1mm

Shape Cylindrical mesh

Coating Ruthenium Iridium Oxide (MMO)

Application Electrolysis, cathodic protection, electroplating

Machining Process CNC precision machining

Surface Treatment Sandblasted, acid etched

Customization Available upon request

Packaging Export wooden case

As a professional manufacturer since 1998, Anping County Boli Hardware Wiremesh Products Factory is proud to present our Precision Machined Ruthenium Iridium Oxide Anode Mesh Cylinder with an outer diameter of 200mm and a tight tolerance of ±0.1mm. Combining decades of wire mesh expertise with advanced electrochemical coating technology, we deliver anodes that provide exceptional corrosion resistance, long service life, and stable performance in harsh environments. Our annual export value of US$5-10 million to global markets including North America, Europe, and Southeast Asia reflects the trust placed in our quality and reliability.

This anode mesh cylinder is engineered for demanding electrochemical processes such as electrolysis, electroplating, water treatment, and cathodic protection. The ruthenium iridium oxide (MMO) coating ensures low overpotential, high catalytic activity, and excellent durability under high current densities. The precision-machined ±0.1mm tolerance guarantees consistent dimensions, easy installation, and optimal electrical contact. Whether you need a standard 200mm OD model or a custom size, our factory offers flexible solutions tailored to your specifications.

Key Features & Technical Specifications

High Precision Machining: CNC lathe cutting ensures dimensional accuracy of ±0.1mm, enabling seamless integration into existing systems.
Superior Coating Technology: Ruthenium iridium oxide mixed metal oxide layer provides excellent electrocatalytic properties and prolongs anode life.
Robust Mesh Structure: Expanded or woven titanium mesh substrate offers high surface area, efficient gas release, and structural integrity.
Corrosion Resistance: Withstands acidic, alkaline, and chloride environments, suitable for use in seawater, brine, and chemical solutions.
Customizable Dimensions: Available in various diameters, lengths, and mesh patterns; contact us for tailored solutions.
Cost-Effective Performance: Lower energy consumption compared to traditional anodes due to reduced overpotential, saving operational costs.

Parameter	Value
Outer Diameter	200mm (customizable)
Tolerance	±0.1mm
Coating Type	Ruthenium Iridium Oxide (MMO)
Substrate Material	Grade 1 or Grade 2 Titanium
Coating Thickness	10-20 μm (adjustable)
Current Density	Up to 5000 A/m²
Operating Temperature	-20°C to 80°C
Application	Electrolysis, electroplating, water treatment, cathodic protection

Customer Benefits: By choosing our precision-machined anode mesh cylinder, you gain a reliable component that reduces downtime, improves current efficiency, and delivers consistent results. The ±0.1mm tolerance eliminates the need for field adjustments, saving installation time. The robust MMO coating withstands aggressive conditions, reducing replacement frequency. Our factory-direct pricing and flexible customization options make it an economical choice for both small-scale laboratories and large industrial operations.

Trusted by Global Customers

With over 25 years of manufacturing experience, Anping County Boli Hardware Wiremesh Products Factory has established a strong reputation in the wire mesh and anode industry. Our annual export value of US$5-10 million and shipments from major ports (Tianjin, Qingdao, Shanghai, Foshan) demonstrate our ability to serve international clients efficiently. We serve diverse markets across North America, South America, Europe, Asia, Africa, and Oceania, providing reliable anodes for electroplating lines, chlor-alkali plants, and seawater desalination projects. Every anode undergoes rigorous quality control, including dimensional inspection, coating uniformity tests, and electrochemical performance verification. We are confident in delivering products that meet your expectations. Contact us today to discuss your requirements or request a quote – we look forward to supporting your electrochemical applications.

Frequently Asked Questions

Q: What is the base material of this anode mesh cylinder?
A: The substrate is Grade 1 or Grade 2 titanium, which offers excellent corrosion resistance and mechanical strength. The ruthenium iridium oxide coating is applied to the titanium surface using thermal decomposition technology.
Q: Can I order a different outer diameter or length?
A: Absolutely. We offer customization services for diameter, length, mesh pattern, and even coating composition. Please provide your specifications, and our engineering team will tailor the product accordingly.
Q: How long is the typical lifespan of this anode?
A: Lifespan depends on operating conditions such as current density, electrolyte composition, and temperature. In typical chlor-alkali or electroplating environments, the anode can last 3-5 years or more. We can provide a lifespan estimate based on your specific parameters.
Q: What is the maximum current density this anode can handle?
A: Our standard design supports up to 5000 A/m² under normal conditions. For higher current densities, we recommend adjusting the coating thickness or mesh geometry. Consult with our technical team for your specific needs.
Q: Does the ±0.1mm tolerance apply to all dimensions?
A: The ±0.1mm tolerance applies to the outer diameter and other critical dimensions as specified. Non-critical dimensions may have slightly larger tolerances. We can provide a detailed dimensional drawing upon request.
Q: What type of packaging do you use for export?
A: We pack the anodes in robust wooden cases with foam padding to prevent damage during transit. Each cylinder is individually wrapped and protected. We also offer custom packaging for large orders.
Q: Do you provide sample for testing before bulk order?
A: Yes, we offer sample orders. The sample cost is reasonable, and we can deduct it from the final order if you place a bulk quantity. Lead time for samples is typically 7-10 working days.
Q: What is the minimum order quantity (MOQ)?
A: For standard sizes, the MOQ is 10 pieces. For customized products, the MOQ may vary based on complexity. Please contact our sales team for a detailed quotation.
