As a leading manufacturer backed by Anping County Boli Hardware Wiremesh Products Factory (established in 1998), we specialize in producing high-quality Stainless Steel Mesh Filter Discs for food processing applications. Our 304 material, 0.5mm mesh filter discs are engineered to deliver precise filtration, durability, and compliance with food safety standards. With an annual export value of US$5-10 million and a global reach spanning North America, Europe, Southeast Asia, and beyond, our products are trusted by food processors worldwide for their consistent performance and long service life.

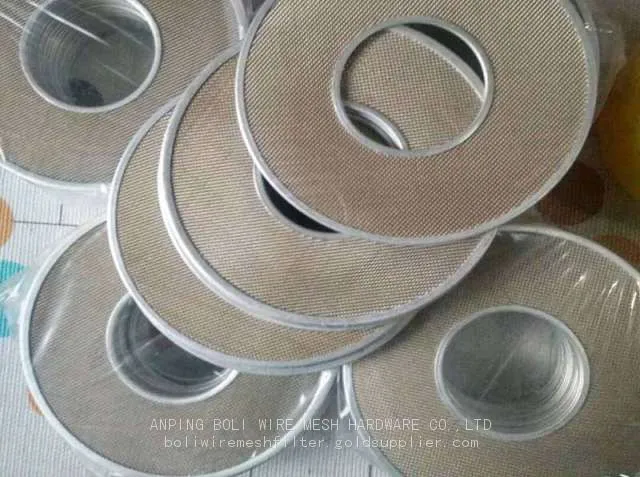

Our 304 Stainless Steel Mesh Filter Discs feature a uniform 0.5mm mesh opening, ensuring reliable separation of particles down to 500 microns. The discs are available in various diameters and can be customized to fit your specific equipment. The woven wire mesh is tightly crimped or welded at the edges to prevent fraying and maintain structural integrity under high-pressure or high-temperature conditions. Whether you need discs for juice filtration, oil clarification, or solid-liquid separation in food processing lines, our products offer an optimal balance of flow rate and filtration efficiency.
Key Features & Technical Specifications
| Attribute | Detail |
| Material | 304 Stainless Steel (Food Grade) |
| Mesh Opening | 0.5mm (500 micron) |
| Wire Diameter | 0.25mm - 0.35mm (customizable) |
| Open Area | Approximately 45% - 55% |
| Diameter Range | 50mm to 500mm (custom sizes available) |
| Weave Type | Plain Weave / Twill Weave (optional) |
| Edge Finish | Welded, Crimped, or Rolled (optional) |
| Temperature Range | -200°C to 800°C |
| Thickness | 1.5mm - 5mm (depending on wire and weave) |
Product Advantages:
- High Filtration Precision: The 0.5mm mesh ensures effective removal of solids while maintaining good flow rates, reducing clogging and downtime.
- Excellent Corrosion Resistance: 304 stainless steel withstands acidic and alkaline food substances, prolonging service life in wet environments.
- Easy to Clean: Smooth surface and uniform weave allow for quick rinsing or ultrasonic cleaning, meeting hygiene standards.
- Customizable Dimensions: Discs can be produced in any diameter, thickness, or edge finish to match your existing filter housings or equipment.
- Durable Construction: Welded or crimped edges prevent wire unraveling, ensuring long-term reliability even under mechanical stress.
- Food-Grade Safety: Our material is free from harmful coatings or contaminants, fully compliant with food processing regulations.
Customer Benefits: By using our 304 stainless steel mesh filter discs, food processors can achieve consistent product quality, reduce waste, and lower maintenance costs. The discs are suitable for a wide range of applications including beer brewing, dairy filtration, fruit juice clarification, oil refining, and food ingredient sieving. Their robust construction minimizes replacement frequency, offering excellent return on investment.
Since 1998, our factory in Hengshui, Hebei, China has been dedicated to wire mesh manufacturing. With an annual export value of US$5-10 million, we serve clients in over 50 countries across North America, South America, Europe, Africa, and Asia. Our experienced team ensures strict quality control from raw material selection to final packaging. We offer free samples for evaluation and provide technical support to help you select the ideal mesh disc for your process. Contact us today to discuss your requirements or place an order—we are ready to deliver filter discs that meet your exact specifications.
Frequently Asked Questions (FAQ)
1. Is the stainless steel mesh food-grade?
Yes, our 304 stainless steel is widely recognized as food-grade material. It is non-toxic, corrosion-resistant, and does not react with food products, making it safe for direct contact with beverages, oils, and ingredients.
2. Can the mesh filter discs be customized for special sizes?
Absolutely. We offer custom diameters (from 50mm to 500mm or larger), different wire diameters, and various edge finishes (welded, crimped, or rolled). Just provide your specifications, and we will produce according to your drawing or sample.
3. What is the maximum temperature these discs can withstand?
304 stainless steel can handle temperatures from -200°C to 800°C. However, continuous use at the upper limit may affect the mesh structure; we recommend consulting our technical team for high-temperature applications.
4. How do I clean the filter discs?
You can rinse with water, use a mild detergent, or employ ultrasonic cleaning. For stubborn residues, backwashing or soaking in a suitable cleaning solution is effective. Avoid using abrasive brushes that may damage the mesh.
5. What is the typical lead time for custom orders?
For standard sizes, we ship within 7-10 days after order confirmation. Custom sizes may require 15-20 days depending on complexity and quantity. We always strive to meet your delivery schedule.
6. Do you offer free samples?
Yes, we provide free samples of existing stock (e.g., common diameters like 100mm or 150mm). You only need to cover the shipping cost. This allows you to test the quality before placing a bulk order.
7. What is the minimum order quantity (MOQ)?
Our MOQ is 100 pieces for standard discs. For custom sizes, the MOQ may be 200 pieces, but we can be flexible based on your project requirements. Please contact us for a detailed quotation.
8. How do you ensure the mesh opening is consistent?
We use automated weaving machines and conduct strict quality inspections. Each batch is tested for mesh size uniformity using optical measurement tools. We also perform burst strength tests to ensure durability.
