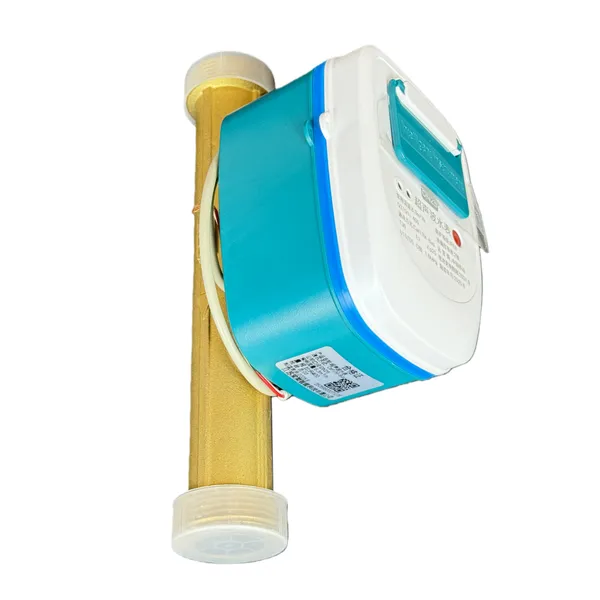

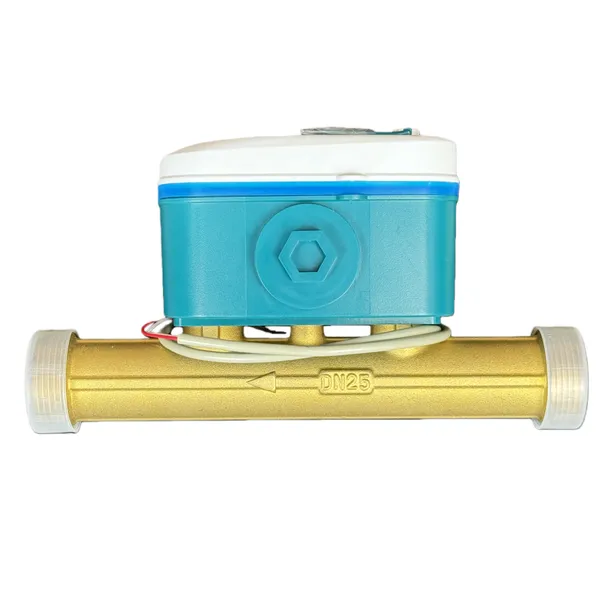

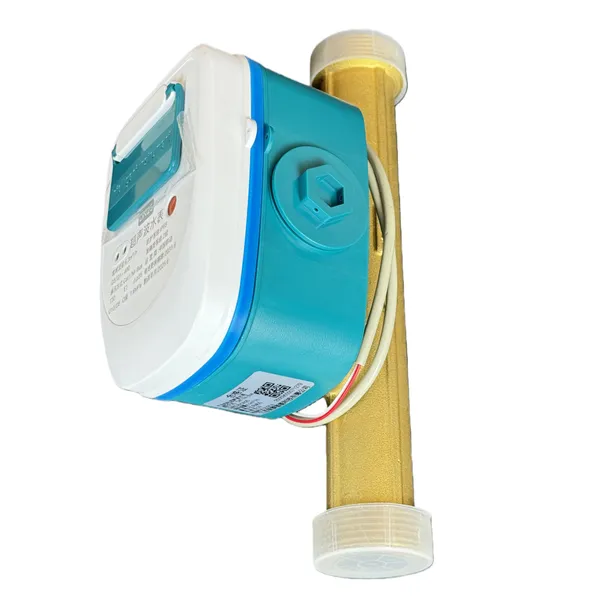

Help CenterNB‑IoT Wireless Non‑magnetic Smart Water Meter Anti‑magnetic Tamper
Product Spotlights
IoT NB‑IoT wireless remote transmission, no field wiring, automatic meter reading, eliminate manual on‑site reading.
Built‑in motor‑driven valve, support remote open / close valve, realize prepayment and arrears water cutoff management.
Related Products
-
IoT Non-magnetic Water Meter for Community RenovationNegotiableMOQ: 10 Units -
IoT Non-magnetic Water Meter for Community RenovationNegotiableMOQ: 10 Units
-
NB‑IoT Wireless Valve‑controlled Prepaid Water Meter for Property ManagementNegotiableMOQ: 10 Units
-
Individual Household Thermal Energy Meter M‑Bus CommunicationNegotiableMOQ: 50 Units
-
Flange Type Modulating 3‑way Ball Valve for Heating Heat‑exchange UnitNegotiableMOQ: 5 Units
Product Overview
The flow velocity of the fluid is measured by calculating the difference between the time taken for ultrasonic pulses to propagate downstream and upstream in the fluid. This enables the calculation of the fluid flow rate within the pipeline. Flow measurement is further enhanced by incorporating fluid temperature data for compensation, ensuring greater accuracy. The meter contains no mechanical moving parts, resulting in zero wear, extended service life, and low maintenance costs. It supports multiple communication protocols, enabling remote meter reading for centralized management.
2.Product Advantages
Utilizes picosecond-level high-precision metering chips, featuring low start-up flow, wide measurement range, high metering accuracy, and capable of measuring dripping water;
Fully sealed electronic components design, offering waterproof, moisture-proof, dust-proof, dirt-proof, and sand-proof properties;
Stores 24 monthly records, 360 daily records, and 192 hourly records; data remains permanently saved after power loss;
Performs real-time monitoring of battery status, temperature, and flow rate. Detects, logs, and alerts for abnormal conditions such as low battery voltage, transducer malfunction, or non-full pipe (empty pipe) status. Corresponding prompts appear on the display;
Supports multiple communication protocols (Infrared, RS485, M-Bus, NB-IoT, LoRa, Cat.1, TTL, LoRaWAN, etc.) for centralized meter reading and parameter configuration;
Enables remote online upgrades at the meter end, continuously meeting evolving water meter requirements and eliminating user concerns;
