Anping Xinye Metal Wire Mesh Products Co., Ltd, headquartered in the wire mesh capital of China – Hengshui, Hebei – brings you a premium range of 304, 316, 316L, 201, and 430 Stainless Steel Braided Woven Wire Mesh. Designed for sieve and micron filter applications, this product combines superior corrosion resistance, high tensile strength, and precise filtration performance. Whether you need fine micron filtration or coarse separation, our wire mesh is engineered to deliver consistent results in demanding environments.
Our woven wire mesh is produced using advanced braiding and weaving techniques, ensuring uniform openings and long service life. The availability of multiple stainless steel grades allows you to select the optimal material for your specific chemical or thermal conditions. From food processing and pharmaceutical filtration to oil and gas separation, this versatile mesh offers reliable performance at competitive prices.
Key Features & Technical Specifications
- Material Options: 304 (standard corrosion resistance), 316/316L (enhanced resistance to chlorides and acids), 201 (cost-effective alternative), 430 (ferritic, magnetic, good for dry applications).
- Weave Patterns: Plain weave, twill weave, dutch weave – all available to achieve desired filtration precision.
- Mesh Range: From 4 mesh (coarse) up to 2000 mesh (micron level), with micron ratings from 1000 μm down to 5 μm.
- Wire Diameter: 0.02 mm – 2.0 mm, customizable to match mesh opening requirements.
- Dimensions: Standard roll width 1.0 m, length 30 m; custom widths and lengths available upon request.

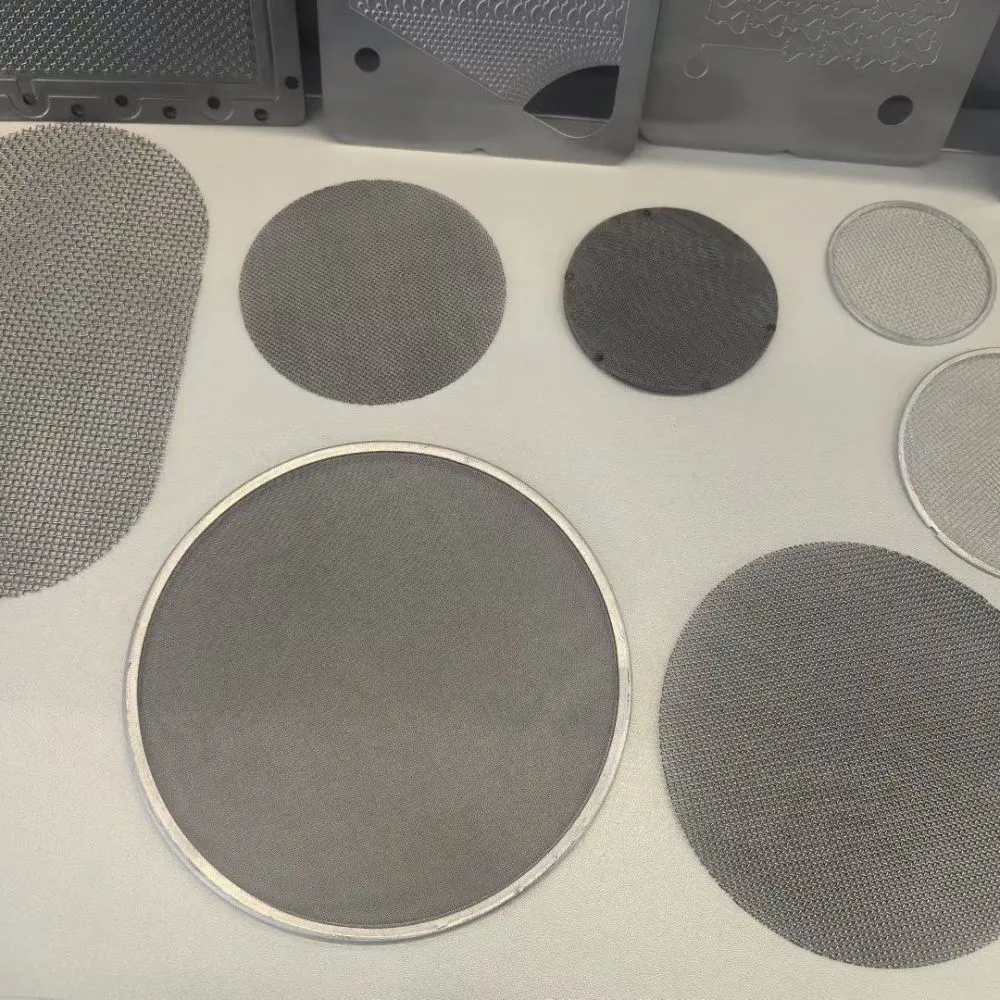

- Edge Treatment: Can be supplied with welded edges, reinforced edges, or cut to size for sieve frames.
- Surface Finish: Clean, degreased, smooth woven surface; optional passivation or electropolishing for extra hygiene.
| Parameter | Available Range | Remark |
|---|---|---|
| Mesh Count (per inch) | 4 – 2000 | Higher mesh = finer filtration |
| Micron Rating | 5 μm – 1000 μm | Customizable |
| Wire Diameter | 0.02 mm – 2.0 mm | Depends on mesh |
| Open Area | 30% – 70% | Varies with weave |
| Tensile Strength | 500 – 1200 N/mm² | Grade dependent |
| Operating Temperature | -200°C to 800°C | Material dependent |
Application Benefits
- Chemical & Petrochemical: Resistant to acids, alkalis, and solvents – ideal for catalyst recovery, liquid filtration, and gas scrubbing.
- Food & Beverage: Non-toxic, easy to clean, and meets hygiene standards for juice filtration, beer brewing, and oil clarification.
- Pharmaceutical: Precise particle separation for tablet coating, syrup filtration, and API processing.
- Water Treatment: Sand filter underdrain, desalination pre-filtration, and wastewater screening.
- Mining & Aggregate: Heavy-duty sieve for ore grading, sand sorting, and mineral separation.
- Automotive & Aerospace: Fuel filters, air intake screens, and hydraulic fluid filtration.
Quality & Trust from Anping Xinye

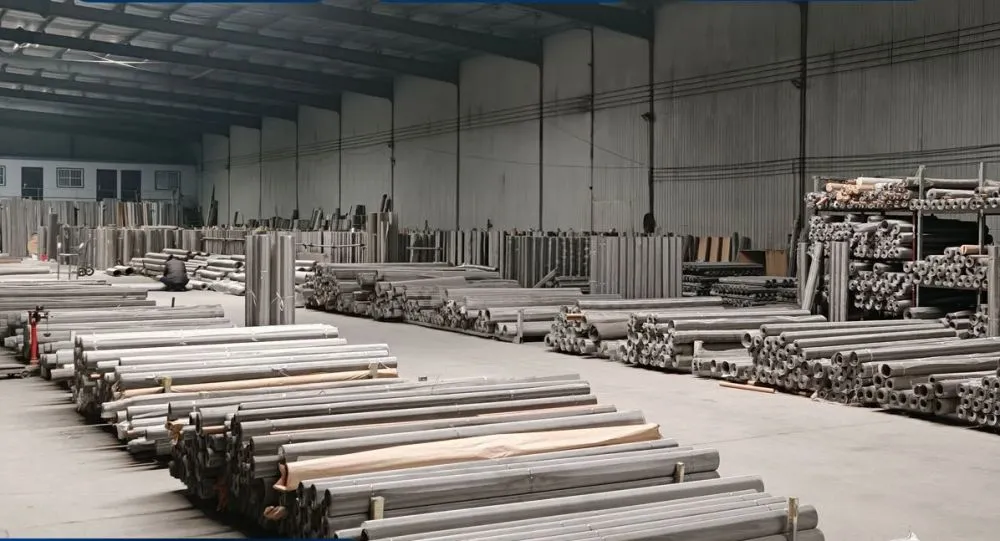

As a leading manufacturer in the wire mesh industry, Anping Xinye Metal Wire Mesh Products Co., Ltd has been serving global clients with consistent quality and competitive pricing. Our factory covers an area of 15,000 square meters, equipped with modern weaving looms and precision testing equipment. We ensure that every roll of mesh meets strict dimensional tolerances and uniform weave consistency.
We have exported to over 30 countries, including the USA, Germany, Japan, and Southeast Asia. Our team provides technical support for mesh selection, custom sizes, and sample testing. With a monthly production capacity of 200,000 square meters, we can fulfill both small trial orders and large container shipments.
Choose 304, 316, 316L, 201, or 430 stainless steel braided woven wire mesh from Anping Xinye for reliable filtration and sieving performance. Contact us today for a quote or free sample – we are ready to support your project with professional expertise.
Frequently Asked Questions
-
What is the difference between 304 and 316L stainless steel mesh?
316L contains molybdenum, providing better resistance to chlorides (e.g., seawater) and acidic environments. 304 is suitable for general-purpose applications with lower corrosion risk. -
Can you provide mesh with a specific micron rating for filter cartridges?
Yes, we can produce woven wire mesh with micron ratings from 5 μm to 1000 μm. Please specify your required filtration efficiency and we will recommend the optimal weave type. -
Do you offer custom sizes and cut pieces?
Absolutely. We can supply rolls, sheets, or cut-to-size pieces per your drawings. Custom widths, lengths, and edge finishing (welded, trimmed, reinforced) are available. -
Is this mesh suitable for high-temperature applications?
Yes, depending on the grade. 304 and 316L can withstand up to 800°C in oxidizing environments. 201 and 430 have lower temperature limits – please consult our technical team for specific conditions. -
What is the typical lead time for orders?
For standard mesh sizes in stock, 3–5 working days. For custom specifications, 10–15 working days depending on quantity and complexity. -
Do you provide samples before bulk order?
Yes, we offer free samples (A4 size or small roll) for evaluation. Shipping cost is covered by the customer. Contact us to arrange sample request. -
Can the mesh be used for food contact?
Yes, 304 and 316L grades are food-grade stainless steel. Our manufacturing process is clean and we can provide passivation for extra hygiene. Please note that specific certifications such as FDA or EU 1935/2004 are not included unless explicitly requested and verified. -
How do I choose between plain weave and twill weave?
Plain weave is suitable for fine mesh (higher mesh count) and provides more uniform openings. Twill weave offers greater strength and is often used for coarser meshes or heavy-duty sieving. Our sales team can recommend based on your application.
