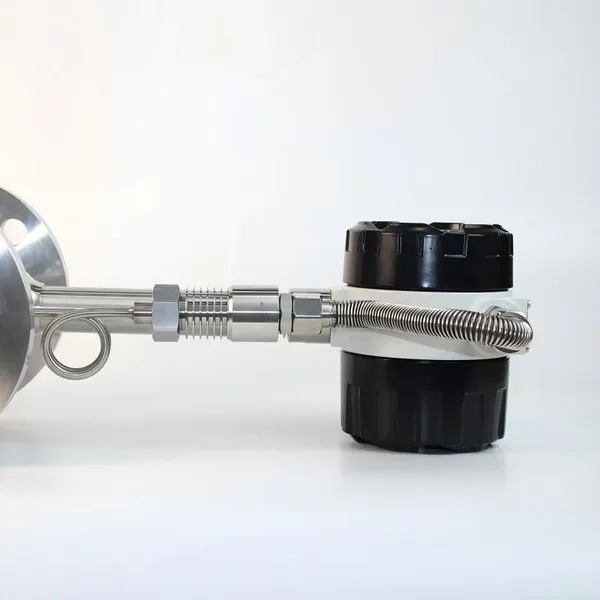

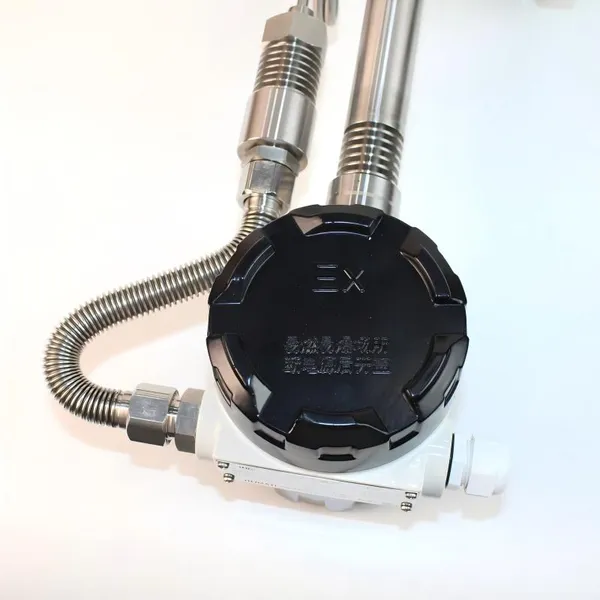

Help CenterBoiler Saturated Steam Vortex Flow Transmitter
Product Spotlights

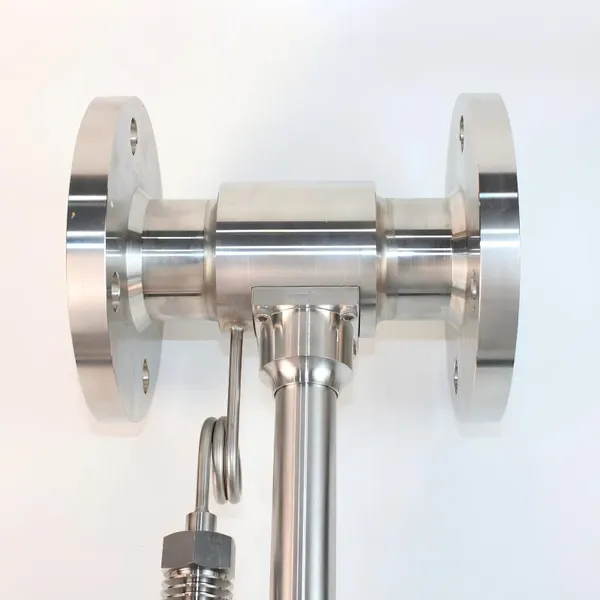

Flange connection, stainless steel construction for high temperature & high pressure boiler saturated‑steam pipeline.
No rotating impeller, anti‑vibration, low wear and low maintenance cost for long‑term operation.
Related Products
-
Boiler Saturated Steam Vortex Flow Transmitter With Temp‑pressure CompensationNegotiableMOQ: 5 Units -
Smart Vortex Flow MeterNegotiableMOQ: 5 Units
-
Flanged Saturated Steam Vortex FlowmeterNegotiableMOQ: 5 Units
-
RS485 Modbus Integrated PT100 Temperature TransmitterNegotiableMOQ: 10 Units
-
Single Flange Pressure Level Transducer for Storage TankNegotiableMOQ: 10 Units
1.Product Overview
The intelligent vortex flowmeter is a flow measurement instrument based on the “Karman vortex street” principle, which detects the alternating vortex frequency generated when fluid flows past an obstruction to measure flow rate. It integrates a microprocessor to achieve intelligent functionality. With its high versatility and cost-effectiveness, it is widely used for process flow monitoring in thermal power plants, heating systems, water treatment, gas metering, flue gas emission monitoring, as well as in petroleum, chemical, metallurgical, and power industries.
2.Product Advantages
Liquid measurement accuracy reaches ±1.0% R, while gas and vapor accuracy reaches ±1.5% R;
Real-time acquisition of medium temperature and pressure data, with algorithmic error correction for precise output of standard volume flow or mass flow;
No mechanical moving parts, ensuring wear resistance, extended service life, and low maintenance costs;
Standard 4-20mA current signal and pulse output; supports RS485 (Modbus) and HART communication protocols for seamless integration with PLCs, SCADA systems, and other industrial controls for remote monitoring and configuration;
Wide operating temperature range (-40°C to 400°C) and pressure rating up to PN63, suitable for demanding conditions;
Supports on-site button configuration for parameters like medium density and instrument coefficients, with real-time flow data displayed on the LCD screen;
Features cumulative flow reset and small signal cut-off functions; models powered by lithium batteries can operate continuously for over one year;
Maximum pressure rating of 25 MPa; employs shock-resistant sensor technology for stable operation in environments with vibrations ≤ 1g;Main body constructed from corrosion-resistant materials like SUS304 or 316L;
Multiple connection options for convenient installation.
