As a leading manufacturer based in Hengshui, Hebei, China, Anping Xinye Metal Wire Mesh Products Co., Ltd. specializes in producing high-quality Hot Dip Galvanized Steel Grating designed for industrial floor and trench cover applications. Our products combine robust strength with exceptional corrosion resistance, ensuring long-term performance in demanding environments. Whether you need durable flooring for factories, platforms, or safe trench covers, our steel grating offers a reliable solution that meets diverse industrial requirements.

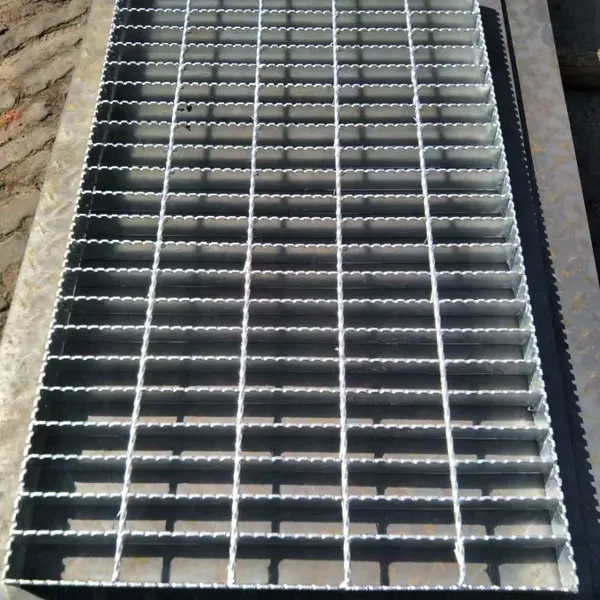

Our hot dip galvanized steel grating is manufactured using premium low carbon steel and undergoes a thorough hot dip galvanizing process, providing a thick zinc coating that protects against rust and wear. The grating is available in various configurations, including different bar spacings, thicknesses, and panel sizes, all customizable to your specific project needs. With a focus on safety and durability, each panel is designed to withstand heavy loads while maintaining an anti-slip surface for worker safety.
Key Features & Benefits
- Superior Corrosion Resistance: The hot dip galvanized coating ensures long-lasting protection against moisture, chemicals, and harsh weather, extending the product's service life.
- High Load Capacity: Engineered to support heavy industrial loads, suitable for forklifts, machinery, and foot traffic.
- Slip Resistance: The serrated or flat bar surface provides excellent traction, reducing the risk of slips in wet or oily conditions.
- Customizable Dimensions: Available in various widths, lengths, and bar spacings to fit your exact specifications.
- Easy Installation: Lightweight yet strong, panels are easy to handle and can be cut or welded on-site if needed.
- Low Maintenance: The galvanized finish requires minimal upkeep, saving time and cost over the product's lifetime.
Technical Specifications
| Parameter | Description |
|---|---|
| Material | Low Carbon Steel (Q235 or equivalent) |
| Surface Treatment | Hot Dip Galvanized (zinc coating thickness ≥ 85μm) |
| Bar Spacing | 30mm, 40mm, 50mm, or custom |
| Bar Thickness | 3mm, 4mm, 5mm, or custom |
| Panel Size | Up to 6m length, 1.5m width (customizable) |
| Load Capacity | Customizable based on design; up to 1000 kg/m² or more |
| Standard | Compliant with industry standards (e.g., DIN, BS, or customized) |
Applications
- Industrial floors and platforms
- Trench covers and drainage covers
- Walkways, catwalks, and stair treads
- Loading docks and mezzanines
- Mining and offshore platforms
- Wastewater treatment plants
Frequently Asked Questions
-
Q: What is the difference between hot dip galvanized and regular painted grating?
A: Hot dip galvanizing provides a thick, metallurgically bonded zinc coating that offers superior corrosion resistance compared to paint. It is more durable and requires less maintenance, especially in outdoor or harsh environments. -
Q: Can I get custom sizes and shapes?
A: Yes, we offer fully customizable options. You can specify the length, width, bar spacing, and thickness to meet your project requirements. Custom shapes such as bent sections or cutouts are also available upon request. -
Q: How is the load capacity determined?
A: Load capacity depends on the bar size, spacing, and panel dimensions. We provide load tables and can calculate the exact capacity for your configuration. For heavy-duty applications, we recommend thicker bars and closer spacing. -
Q: Is the grating slip-resistant?
A: Yes, our standard bars have a flat surface. For added slip resistance, we offer serrated bars that provide better grip. Please specify your preference when ordering. -
Q: What is the typical lead time?
A: For standard sizes, the lead time is around 15-20 working days after order confirmation. Custom orders may take slightly longer depending on complexity. We always strive to meet your delivery schedule. -
Q: How should I install the grating?
A: Installation can be done using welding, clips, or bolts. We provide installation guidelines and accessories if needed. The grating is designed to be easily cut on-site to fit irregular spaces. -
Q: Do you provide samples before bulk order?
A: Yes, we can provide small samples for quality evaluation. Please contact our sales team to arrange sample shipment (sample cost and freight charge apply).
At Anping Xinye Metal Wire Mesh Products Co., Ltd., we have been delivering reliable steel grating solutions to clients worldwide. Our factory in Hengshui, Hebei, is equipped with advanced production lines and a strict quality control system, ensuring every panel meets the highest standards. We take pride in our responsive customer service, competitive pricing, and on-time delivery. Whether you need a standard trench cover or a custom industrial floor system, we are here to provide the right product for your project.
Contact us today to discuss your requirements or request a quotation. Our team of experts will help you choose the optimal grating specifications and provide the best solution for your industrial floor and trench cover needs.
