Help CenterCarbon Steel Bar Grating, 40x5mm Bearing Bars, 10mm Spacing, Welded Steel Grating for Floor Drainage
Product Spotlights
Related Products
-
Welding Steel Grating Used for Drainage Covers, Carbon Steel Bar Grating, 30x5mm, Non-Slip Steel FloorNegotiableMOQ: 100 Square Meters -
Carbon Steel Bar Grating for Industrial Platform Floor, Welded Steel Grating With 25x3mm Bars, 50x50mm OpeningsNegotiableMOQ: 100 Square Meters
-
Carbon Steel Bar Grating, Welded Steel Grating, 1 Year Warranty, Mill Test Report Provided, Steel Floor PanelsNegotiableMOQ: 100 Square Meters
-
Steel Bar Grating for Flooring Projects in Water Treatment Facilities With Anti-Corrosion CoatingNegotiableMOQ: 100 Square Meters
-
Steel Bar Grating With 1 Year Warranty Mill Test Report Compliant for Flooring InstallationNegotiableMOQ: 100 Square Meters
Since 1998, Anping County Boli Hardware Wiremesh Products Factory has been a trusted manufacturer of high-quality steel gratings, exporting to over 15 global markets with an annual export value of US$5-10 million. Our Carbon Steel Bar Grating with 40x5mm bearing bars and 10mm spacing is engineered specifically for floor drainage applications, combining robust load-bearing capacity with efficient water flow. This welded steel grating offers a durable, slip-resistant surface that meets the demanding needs of industrial, commercial, and municipal drainage systems.

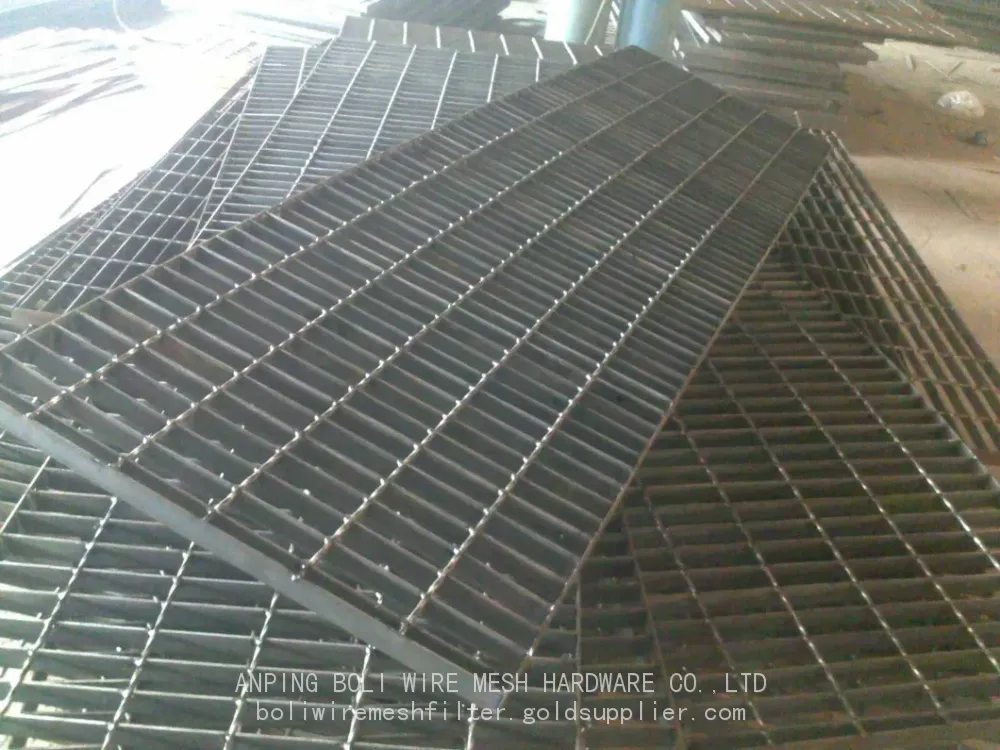

Each panel is precision-welded from hot-rolled carbon steel bars, ensuring consistent bar spacing and structural integrity. The 40mm bar height and 5mm thickness provide excellent rigidity, while the 10mm clear spacing allows debris and water to pass through freely without clogging. Whether used in trench drains, platform walkways, or heavy-duty flooring, this grating delivers long-lasting performance under high traffic and harsh conditions.
Key Features & Technical Specifications
| Parameter | Value |
| Bearing Bar Size | 40mm (height) × 5mm (thickness) |
| Clear Spacing (center-to-center) | 10mm |
| Material | Carbon steel (Q235 or equivalent) |
| Surface Treatment | Plain (mill finish) or hot-dip galvanized (optional) |
| Panel Dimensions | Customizable (width up to 2m, length up to 6m) |
| Load Capacity | Varies by span; engineering data available on request |
| Application | Floor drainage, trench covers, industrial walkways, platforms |
Product Advantages & Customer Benefits
- Efficient Drainage: The 10mm spacing ensures rapid water flow while preventing large debris from entering the drainage system, reducing maintenance frequency.
- High Load-Bearing Strength: 40mm bearing bars with 5mm thickness provide excellent structural integrity, capable of supporting heavy foot traffic, light vehicles, and industrial equipment.
- Slip Resistance: The flat bar surface offers natural traction, even when wet, enhancing workplace safety.
- Corrosion Resistance Options: Choose plain carbon steel for indoor use or hot-dip galvanized finish for outdoor and corrosive environments, extending service life.
- Customizable Dimensions: Panels can be cut to exact length and width, with optional banding or serrated edges for specific project requirements.
- Easy Installation: Lightweight yet sturdy design simplifies handling and welding to existing structures, reducing labor time.
- Cost-Effective Solution: Durable carbon steel provides superior value compared to aluminum or stainless steel gratings for budget-conscious projects.
Typical Applications
- Industrial floor drainage channels
- Commercial kitchen floor drains
- Parking lot and roadway trench covers
- Platform gratings for oil rigs and refineries
- Walkways in water treatment plants
- Agricultural drainage systems
Trust & Quality Assurance
With over 26 years of manufacturing experience, Anping County Boli Hardware Wiremesh Products Factory has built a reputation for precision and reliability. Our annual export value of US$5-10 million reflects the trust of clients across North America, Europe, Asia, and Africa. Every grating panel undergoes strict quality checks, including bar alignment, weld strength, and dimensional accuracy. We ship from major ports like Tianjin, Qingdao, and Shanghai, ensuring timely delivery worldwide. Our team provides technical support and custom fabrication to match your exact specifications. Choose Boli for durable, cost-effective floor drainage gratings that perform under pressure.
Frequently Asked Questions
1. What is the maximum panel size you can produce?
We can customize panels up to 2 meters in width and 6 meters in length. Larger sizes may be available upon request with additional support bars.
2. Can this grating be used for heavy vehicle traffic?
The 40x5mm bar grating is suitable for light to medium vehicle loads (e.g., passenger cars, forklifts). For heavy truck traffic, we recommend thicker bars or closer spacing. Please provide load requirements for a customized design.
3. What surface treatment options do you offer?
Standard option is plain mill finish (oiled to prevent rust during transit). Hot-dip galvanizing is available as an optional upgrade for enhanced corrosion resistance. We can also apply epoxy coating or painting upon request.
4. How is the grating packaged for export?
Gratings are bundled with steel strapping, separated by wooden spacers, and wrapped in waterproof material. Panels can be stacked or palletized based on quantity. We ensure secure packaging to prevent damage during sea freight.
5. Do you provide sample panels for testing?
Yes, we offer small samples (e.g., 300x300mm) for evaluation. Sample cost and shipping are negotiable. Contact us with your requirements.
6. What is the typical lead time for an order?
For standard sizes, lead time is 15-20 days after deposit. Custom orders may require 25-30 days depending on complexity and quantity. We can expedite urgent orders with prior arrangement.
7. Are there any restrictions on the use of plain carbon steel in outdoor environments?
Plain carbon steel will rust when exposed to moisture and oxygen. For outdoor or wet applications, we strongly recommend hot-dip galvanized finish to prevent corrosion and extend service life. Indoor use with plain finish is acceptable if properly maintained.
8. Can you provide load-bearing calculation data?
Yes, we can supply deflection and load capacity charts based on span, bar size, and spacing. Our engineering team will assist in selecting the appropriate grating for your project. Please provide the span and intended load.
Contact us today for a quote or technical consultation. Let our decades of expertise support your next flooring project.
