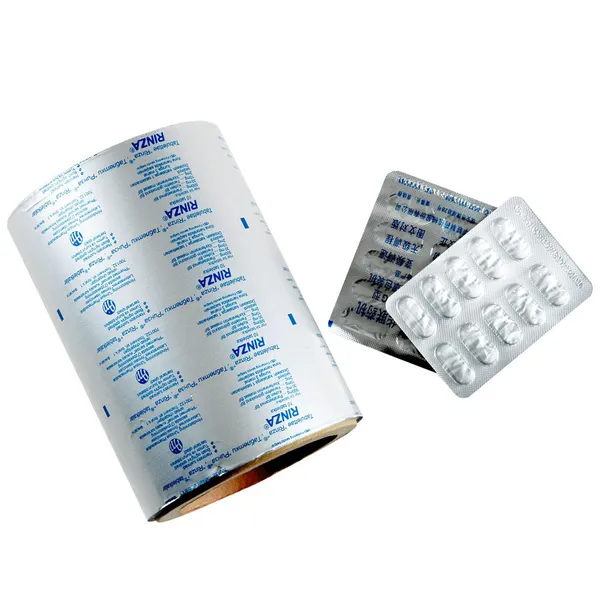

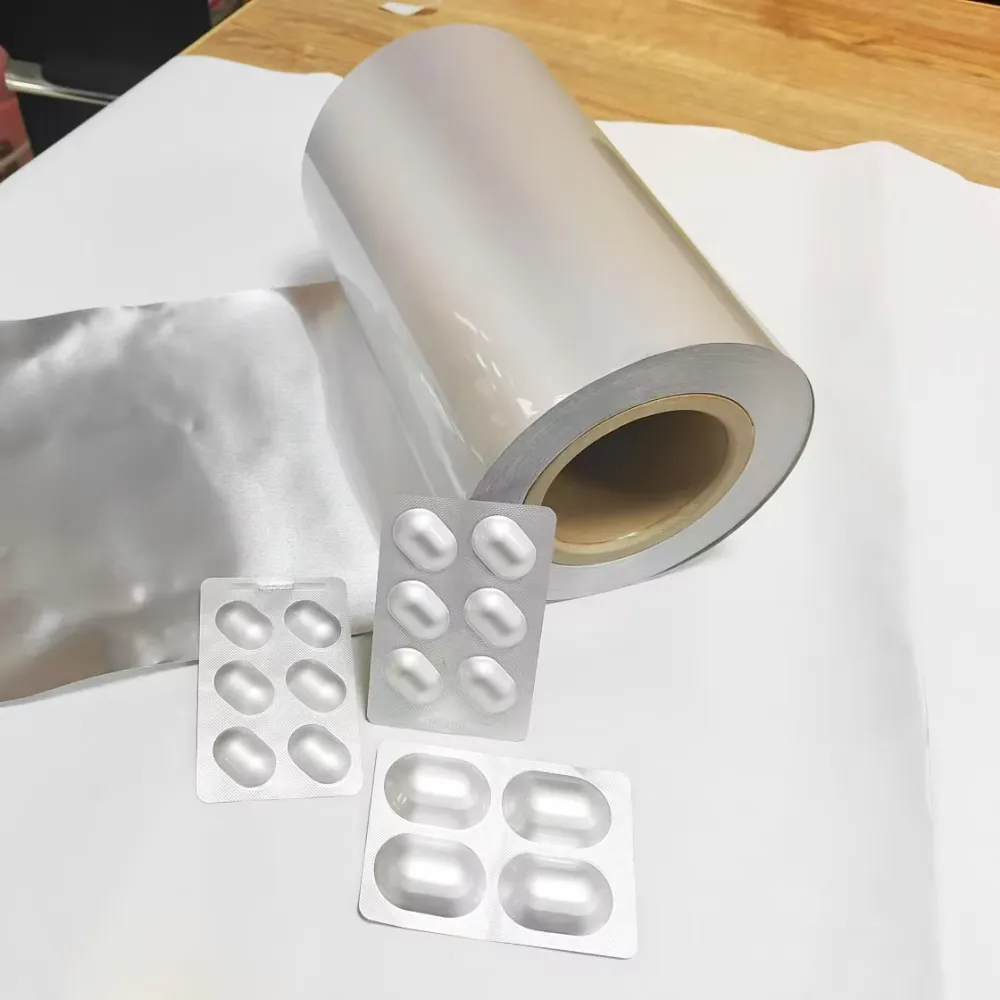

Hemaokang Steel (Shandong) Co., Ltd. is proud to present our premium 0.02mm-0.04mm 8011 Alloy Medical Aluminum Foil for Blister Packaging, manufactured in half hard temper roll form. As a trusted supplier with an annual export value of US$50 million to US$100 million, we combine advanced production technology with strict quality control to deliver aluminum foil that meets the rigorous demands of pharmaceutical and medical device packaging. Our foil ensures excellent barrier properties, formability, and hygiene, making it the ideal choice for protecting sensitive medications and sterile products.
Our 8011 alloy medical aluminum foil is specifically engineered for blister packaging applications where product integrity is critical. The half hard temper provides a balance of stiffness and flexibility, allowing for precise forming into blister cavities while maintaining structural strength during handling and transportation. With thickness ranging from 0.02mm to 0.04mm, this foil offers exceptional protection against moisture, oxygen, light, and contaminants, extending the shelf life of pharmaceutical products.
At Hemaokang Steel, we understand that medical packaging requires uncompromised quality. Our production process is ISO9001:2015 certified, ensuring consistent performance from batch to batch. We supply to markets across North America, South America, Europe, Asia, Africa, and Oceania, serving clients who demand reliability and precision. The following sections detail the technical specifications, key advantages, and reasons why our foil is the preferred choice for blister packaging.
Technical Specifications
| Parameter | Value |
|---|---|
| Alloy | 8011 |
| Temper | Half Hard (H14/H24) |
| Thickness Range | 0.02mm – 0.04mm (±0.002mm tolerance) |
| Width | 200mm – 1200mm (customizable) |
| Inner Core Diameter | 76mm / 152mm (optional) |
| Surface Finish | Matte one side, bright one side (standard) |
| Tensile Strength | 80 – 120 MPa (depending on thickness) |
| Elongation | ≥ 1.5% |
| Pinhole Count | ≤ 20 pinholes/m² (for 0.02mm thickness) |
| Packaging | Jumbo rolls or slit rolls, vacuum packed with desiccant |
Key Features & Advantages
- Superior Barrier Properties: Our 8011 alloy foil provides an excellent barrier against moisture, oxygen, and UV light, preserving the efficacy of pharmaceutical products. The half hard temper ensures the foil remains intact during forming and sealing.
- Excellent Formability: The half hard temper allows the foil to be deep-drawn into blister cavities without tearing or cracking, ensuring consistent cavity depth and shape. This reduces waste and improves production efficiency.
- Pinhole-Free Performance: With strict quality control, we guarantee minimal pinholes (≤20/m² for 0.02mm), meeting the stringent requirements of medical packaging. This ensures zero contamination risks.
- Food-Grade & Hygienic: The foil is manufactured from non-toxic materials and undergoes rigorous cleaning. It is suitable for direct contact with pharmaceutical tablets, capsules, and medical devices.
- Customizable Dimensions: We offer a wide range of widths and can slit to your specific requirements. The inner core diameter can be tailored to fit your blister packaging machinery.
- Consistent Quality: Our ISO9001:2015 certified production process ensures that every roll meets the same high standards. We perform in-house testing for thickness, tensile strength, elongation, and pinhole count.
- Cost-Effective Solution: By optimizing the alloy composition and temper, we provide a foil that balances performance and cost. The half hard temper reduces the need for additional annealing, saving energy and time.
- Environmentally Friendly: Aluminum foil is 100% recyclable. Our production processes are designed to minimize waste and energy consumption, supporting sustainable packaging practices.
Benefits for Your Business
By choosing our 0.02mm-0.04mm 8011 alloy medical aluminum foil, you gain a reliable partner for your packaging needs. The half hard temper ensures your blister packaging machines run smoothly, with fewer stoppages due to material defects. The thin yet strong foil reduces material usage while maintaining protection, helping you lower overall packaging costs. Furthermore, the consistent quality and tight tolerances minimize rejection rates, improving your production yield.
Our foil is widely used in the packaging of antibiotics, vitamins, pain relievers, and other sensitive drugs. It also serves medical device packaging for items like syringes, catheters, and surgical kits. The foil's compatibility with various lidding materials (e.g., PVC, PVDC, or cold-form laminates) makes it a versatile choice for any blister format.
Trust & Reliability
Hemaokang Steel (Shandong) Co., Ltd., established in 2025, has rapidly grown into a global supplier of aluminum products. With an annual export value exceeding US$50 million and a dedicated team of 51-100 employees, we serve clients across North America, South America, Europe, Asia, Africa, and Oceania. Our ISO9001:2015 certification reflects our commitment to quality management. We are located in Liaocheng, Shandong, China – a major hub for aluminum processing – allowing us to leverage local resources and logistics for timely delivery.
We understand that medical packaging demands absolute reliability. That's why we implement rigorous testing for every production batch, including pinhole inspection, tensile testing, and dimensional verification. Our team is available to provide technical support, sample rolls, and customization options. We invite you to experience the quality that thousands of clients trust. Contact us today for a quote or to request free samples. Let us help you safeguard your products with confidence.
Frequently Asked Questions
-
Q: What is the difference between half hard and soft temper foil?
A: Half hard temper (H14/H24) offers a balance of stiffness and formability, making it ideal for blister packaging where the foil needs to hold its shape after forming. Soft temper (O) is more ductile but can be too weak for some blister applications. Our half hard provides better rigidity during handling. -
Q: Can this foil be used for child-resistant blister packaging?
A: Yes, the foil can be laminated with a push-through or peelable lidding material to achieve child-resistant features. The half hard temper provides sufficient puncture resistance while allowing easy opening by adults. -
Q: What is the minimum order quantity (MOQ)?
A: Our standard MOQ is 2 metric tons per specification. However, we can accommodate smaller trial orders for new clients. Please contact our sales team for details. -
Q: How is the foil packaged to prevent oxidation or damage?
A: The foil rolls are vacuum packed with desiccant and wrapped in protective materials. Each roll is individually labeled with batch number, thickness, and width. We also offer custom packaging upon request. -
Q: Does the foil have any surface treatment?
A: The standard surface is matte on one side and bright on the other. This provides good adhesion for printing and lamination. If you require a specific surface (e.g., extra bright or fully matte), we can discuss customization options. -
Q: What is the shelf life of this aluminum foil?
A: When stored in a dry, clean environment (temperature below 40°C, humidity below 70%), the foil can be used for up to 2 years from the date of manufacture. Proper storage ensures no degradation of barrier properties. -
Q: Can you provide samples for testing?
A: Absolutely. We offer free samples (A4 size or small roll) for evaluation. You only need to cover the shipping cost. Contact us with your requirements, and we will arrange the samples promptly. -
Q: Is the foil suitable for cold-form blister packaging?
A: Yes, the 8011 alloy with half hard temper is commonly used in cold-form blisters, especially for moisture-sensitive products. The foil's elongation and strength allow it to conform to deep cavities without cracking.
