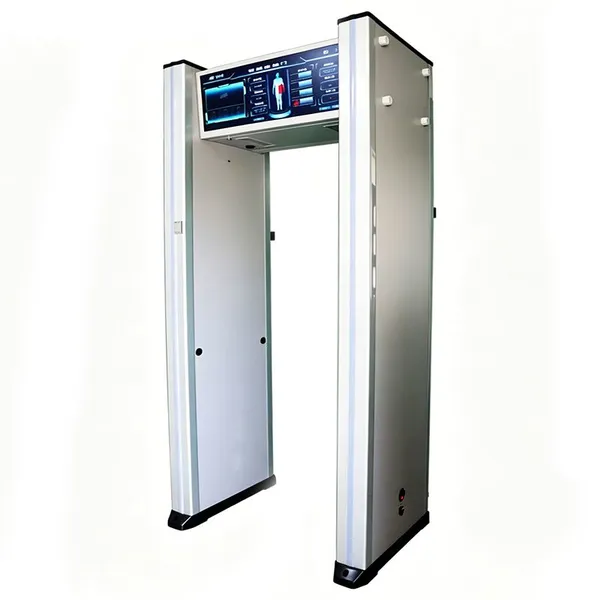

Help CenterWD-M600 Intelligent Detection Security Gate
Product Spotlights
Multi-Mode Switching: Mobile Phone Detection Mode, Weapon & Contraband Mode, All-Metal Mode, User Custom Mode.
Related Products
-
WD-M300 Intelligent Detection Security GateNegotiableMOQ: 1 Combo -
WD-M100 Intelligent Detection Smart Mobile Phone Security DoorNegotiableMOQ: 1 Combo
-
WD-M900 Intelligent Security DoorNegotiableMOQ: 1 Combo
-
WD-M700 Intelligent Security GateNegotiableMOQ: 1 Combo
-
WD-M600A Intelligent Mobile Phone Detection Security GateNegotiableMOQ: 1 Combo
Product Features |
|
Human Safety: Harmless to cardiac pacemaker wearers, pregnant women and magnetic media. Display Function: Equipped with a 29-inch LCD screen. The main interface automatically refreshes and displays Pass Count and Alarm Count with all information shown clearly and intuitively. (Optional: Dual-side 29-inch screens can be installed as an upgrade.) Gate Structure: Wide panel design. The enclosure is stable, sturdy, durable and deformation-resistant. Detection Zones: Divided into 18 detection zones, enabling accurate indication of suspicious objects in each zone. Multi-Zone Alarm Function: 6 zones on each side (left & right) to mark the alarm position of mobile phones. Dual-side Positioning Lights: LED lights are installed on both sides of the gate to visually indicate the location of contraband. (Optional: Four-side LED lights for a 360° viewing angle.) Operating System: Adopts robust operating system with high stability and abundant expandable functions. Hardware & Software: High-performance 6-core CPU with main frequency over 1.8GHz. Application software can be upgraded via USB. Automatic Calibration: Built-in automatic calibration mode. The device calibrates automatically according to site environment during installation to suppress interference. Graphical Signal Display: Detection signals are displayed in graphical waveforms for straightforward monitoring of equipment status. Multi-Mode Switching: Mobile Phone Detection Mode, Weapon & Contraband Mode, All-Metal Mode, User Custom Mode. Daily Article Filtering: Filters daily items such as belt buckles, glasses, pens and pencil cases for mobile phone detection. Bi-directional Passage: Supports bi-directional detection. Effective inspection is available for people entering from either the entrance or exit side of the gate. Voice Broadcast: Supports voice broadcast, and users can customize broadcast content. Audio & Visual Alarm: Supports voice alarm and flashing light strip alarm. Indicator Light Debugging: Indicator light debugging function to quickly troubleshoot faults. Remote Operation: Parameters can be configured via wireless mouse. Parameter settings are protected by passwords to prevent operation by unauthorized personnel. Network Management: Reserved communication interface for data sharing with computers. Linkage Function: (Optional linkage interface available for linkage control with flap barriers and tripod turnstiles.) |
Basic Specifications | |
Model |
WD-M600 |
Passage Speed |
1m/s – 2m/s |
Power Consumption |
＜40W |
Operating Frequency |
Adjustable according to installation environment |
Overall Weight |
Approx. 165kg |
Operating Ambient Temperature |
-10℃ ~ +40℃ |
Operating Humidity |
95%, non-condensing |
External Power Supply |
187V/220V, 50/60Hz |
Internal Passage Dimension |
＜1989(H) × 720(W) × 610(D) mm |
Overall External Dimension |
＜2420(H) × 970(W) × 650(D) mm |
Operating System |
Linux |
CPU |
RK3399 Hexa-core |
RAM/ROM |
8GB |
Camera Pixel |
2 Megapixels |
Visible Light Resolution |
1920×1080 |
Temperature Measurement Range |
30℃~50℃ |
Thermal Imaging Resolution |
256 * 192 (Optional) |
Detected Object Display Diagram
Filtered Object Display Diagram
