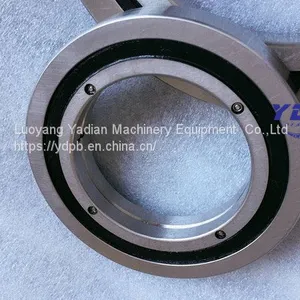

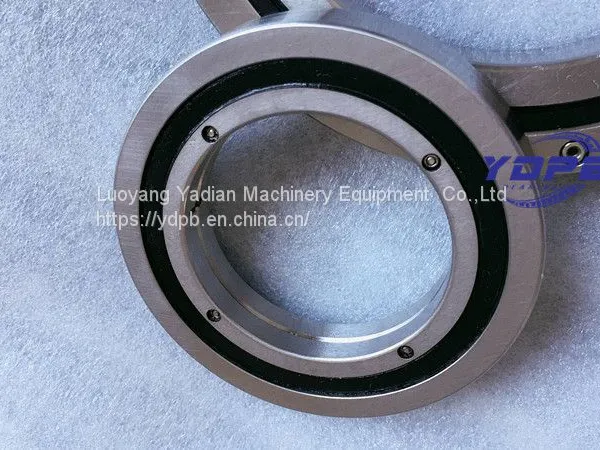

Help CenterRE4010 Thin-section Precision Crossed Roller Bearing
Product Spotlights
2. Combined load capacity, simplified shaft design
3. Ultra-compact, slim cross-section
4. High rigidity, adjustable preload & superior precision
5. Smooth rotation & stable friction torque
6. Widely used in such as robot joints, inspection turntables, optical platforms, medical scanner gantries and compact indexing devices.
Related Products
-
RE4510 Crossed Roller Bearings Inner Ring DivisionNegotiableMOQ: 1 Combo -
RE5013 For Industrial Robot Jointst Crossed Roller BearingNegotiableMOQ: 1 Combo
-
RE6013 Crossed Roller Bearing For Outer Ring RotationNegotiableMOQ: 1 Combo
-
RE7013 Crossed Roller Bearing For Outer Ring RotationNegotiableMOQ: 1 Combo
-
RE8016 Crossed Roller Bearing Adjustable Preload ,High RigidityNegotiableMOQ: 1 Combo
About RE4010 precision crossed roller bearing, with each roller perpendicular to the adjacent roller in a 90°V groove, cylindrical rollers or tapered rollers are arranged crosswise. Between rollers and rollers, it is separated by the spacing block, which can avoid the leaning and friction of rollers and effectively prevent the increase of rotation torque. Besides, the clearance can be adjusted. Even if the bearing is put under the preloaded pressure, it can also getthe very high rotation accuracy, rigidity and loading capacity.
Structure:
split inner ring, integrated outer ring (for outer ring rotation). Preload can be adjusted during assembly to eliminate clearance for high rigidity and precision.
Compact thin-wall design,Small axial height saves installation space and enables lightweight machine design.
Multiple sealing options:
RE (open type), RE-U (single seal), RE-UU (double seals) for different working conditions.
Available precision grades:
Standard P6; P5 / P4 high precision can be customized
Applacations:
1. Industrial Robot Joints, inspection turntables
2. Precision Inspection & Optical Equipment
3. Medical Imaging Equipment
4. Small CNC Indexing Devices
5. Semiconductor & Automation Equipment
6. Aerospace Test Platforms
parameters:
| Bearing Type | Dimension | Shoulder Size | Basic Load Rating(Radial) |
Weight | ||||||
| Inner Diameter | Out Diameter |
Roller Pitch Diameter | Height | Chamfer | Cr | Cor | ||||
| d | D | Dpw | B B1 | rmin | ds | Dh | kN | kN | kg | |
| RE2008 | 20 | 36 | 29 | 8 | 0.5 | 23.5 | 30.5 | 3.23 | 3.1 | 0.04 |
| RE2508 | 25 | 41 | 34 | 8 | 0.5 | 28.5 | 35.5 | 3.63 | 3.83 | 0.05 |
| RE3010 | 30 | 55 | 43.5 | 10 | 0.6 | 37 | 47 | 7.35 | 8.36 | 0.12 |
| RE3510 | 35 | 60 | 48.5 | 10 | 0.6 | 41 | 51.5 | 7.64 | 9.12 | 0.13 |
| RE4010 | 40 | 65 | 53.5 | 10 | 0.6 | 47.5 | 58 | 8.33 | 10.6 | 0.16 |
| RE4510 | 45 | 70 | 58.5 | 10 | 0.6 | 51 | 61.5 | 8.62 | 11.3 | 0.17 |
| RE5013 | 50 | 80 | 66 | 13 | 0.6 | 57.5 | 72 | 16.7 | 20.9 | 0.27 |
| RE6013 | 60 | 90 | 76 | 13 | 0.6 | 68 | 82 | 18 | 24.3 | 0.3 |
| RE7013 | 70 | 100 | 86 | 13 | 0.6 | 78 | 92 | 19.4 | 27.7 | 0.35 |
| RE8016 | 80 | 120 | 101.4 | 16 | 0.6 | 91 | 111 | 30.1 | 42.1 | 0.7 |
| RE9016 | 90 | 130 | 112 | 16 | 1 | 98 | 118 | 31.4 | 45.3 | 0.75 |
| RE10016 | 100 | 140 | 121.1 | 16 | 1 | 109 | 129 | 31.7 | 48.6 | 0.83 |
| RE10020 | 100 | 150 | 127 | 20 | 1 | 113 | 133 | 33.1 | 50.9 | 1.45 |
Besides,Many other precision bearings series available ,pls contact us anytime, thanks!
Luoyang Yadian Mechanical Equipment Co., Ltd. mainly produces a series of precision bearings including turntable bearings, crossed roller bearings, crossed tapered bearings, harmonic reducer bearings, flexible bearings, RV reducer bearings, constant cross-section thin-section bearings, precision machine tool spindle bearings, and precision rotary table bearings. The bearing production covers inner diameters from Φ3mm to outer diameters of Φ2500mm, with precision grades of P5, P4, and P2; higher precision bearings can be provided upon request. The company's leading products are YRT, YRTS, YRTM, ZKLDF, and ZKLDFM series turntable bearings, as well as RB RE, RU, RA, RA-C, RAU, CRB, CRBC, CRBH, CRBS, CRBT, CRBTF, XU, XA, XI XSU, XSA, XSI, and SX series crossed cylindrical roller bearings, and JXR, XR, and Z series crossed tapered roller bearings. Meanwhile, Luoyang Yadianings can also provide CSG and SHF series harmonic reducer bearings, flexible bearings, RV reducer bearings, constant cross-section thin-section bearings, precision machine tool spindle bearings, precision rotary bearings, and non-standard customized bearings. Currently, the YDPB series products have been widely applied in fields such as CNC machine tools, industrial robots, service robots, collaborative, AGVs, SCARA robots, exoskeleton robots, surgical robots, hexapod robots, quadruped robots, humanoid robots, aviation equipment, radar communications, medical equipment, precision measuring instruments printing and dyeing equipment, alignment platforms, optical equipment, industrial rotary tables, hollow rotary platforms, DD motors/direct drive motors, harmonic reducers, and planetary reducers. They are matched with universities and research institutes, used in special robots, mobile radar vehicles, and national key scientific research projects to replace imports, earning high praise from customers.
