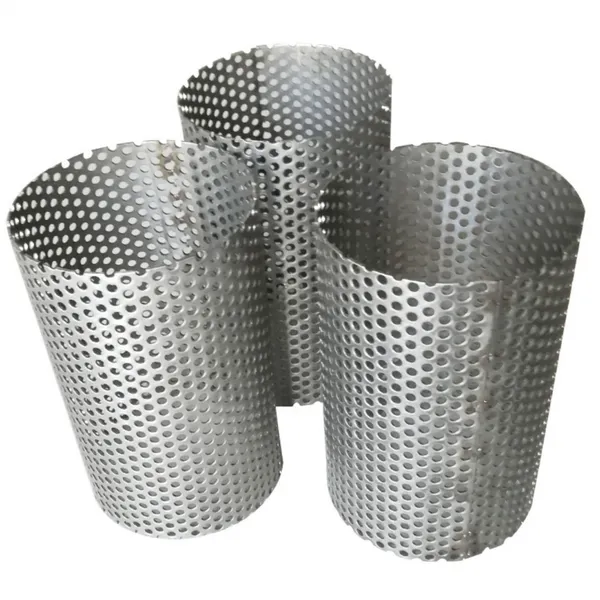

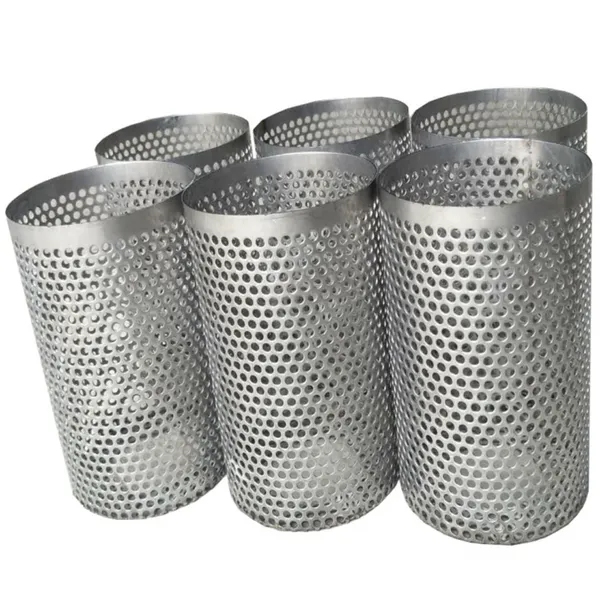

Help CenterSanitary Stainless Steel Strainer Basket, 0.5mm Mesh, 120 Grit, 4" Tri-Clamp Connection
Product Spotlights
Related Products
-
Stainless Steel Strainer Basket for Chemical Filtration, 316L, 1mm Opening, 0.9mm ThicknessNegotiableMOQ: 1 Piece -
Perforated Stainless Steel Strainer Basket, 2mm Hole, 1.2mm Thickness, 300mm x 200mmNegotiableMOQ: 1 Piece
-
Stainless Steel Strainer Basket for Sewage Treatment Plant 304 2mm Thickness 200 MicronNegotiableMOQ: 1 Piece
-
Food Grade 304 Stainless Steel Strainer Basket 40 Mesh 100 Micron for Cooking Oil FiltrationNegotiableMOQ: 1 Piece
-
316L Stainless Steel Strainer Basket 0.5mm Perforated 2 Inch NPT Threaded End 150mm LengthNegotiableMOQ: 1 Piece
As a leading manufacturer since 1998, Anping County Boli Hardware Wiremesh Products Factory proudly presents our Sanitary Stainless Steel Strainer Basket with a 0.5mm mesh, 120 grit finish, and 4" Tri-Clamp connection. This high-precision filter basket is engineered for demanding hygiene-critical applications, delivering superior filtration efficiency and long service life. Whether you're straining fine particles in food processing, beverage production, or pharmaceutical compounding, our strainer basket ensures consistent performance and easy maintenance.
Our strainer basket is constructed from premium stainless steel (304 or 316L), featuring a 0.5mm (500 micron) mesh that provides excellent retention of fine solids while maintaining high flow rates. The 120 grit surface finish, combined with electropolishing, creates a smooth, non-stick surface that resists bacterial growth and simplifies cleaning. The 4-inch Tri-Clamp connection allows for quick, tool-free installation and removal, making it ideal for sanitary pipelines in CIP (Clean-in-Place) systems.
Key Features & Technical Specifications
- Precision Mesh: 0.5mm aperture (500 microns) with ±5% tolerance, ensuring consistent filtration.
- High Grit Finish: 120 grit surface roughness (Ra ≤ 0.8μm) for superior cleanability and corrosion resistance.
- Durable Construction: Fully welded seams with no crevices, preventing product entrapment.
- Standard Tri-Clamp: 4" (DN100) clamp connection compatible with industry-standard fittings.
- Versatile Applications: Suitable for food, dairy, beverage, brewery, pharmaceutical, and chemical processes.
- Customizable Options: Available in 304/316L stainless steel, different mesh sizes, and custom dimensions.
| Parameter | Specification |
|---|---|
| Material | 304 or 316L Stainless Steel |
| Mesh Opening | 0.5 mm (500 microns) |
| Grit (Surface Finish) | 120 Grit (Ra ≤ 0.8μm) |
| Connection Size | 4" Tri-Clamp (DN100) |
| Operating Pressure | Up to 150 psi (10 bar) |
| Temperature Range | -20°C to 150°C |
| Compliance | Meets sanitary standards for food & pharma |
Benefits to Your Process: By using our sanitary strainer basket, you can achieve higher product purity, reduce downtime for cleaning, and extend equipment life. The 0.5mm mesh effectively removes particulates down to 500 microns, protecting downstream equipment like pumps, valves, and heat exchangers. The 120 grit finish ensures that even sticky residues rinse off easily, reducing contamination risks. The Tri-Clamp connection allows for rapid changeout during batch processing, boosting productivity.
Why Choose Anping County Boli Hardware Wiremesh Products Factory?
With over 25 years of manufacturing experience (since 1998), we have established a global reputation for quality wire mesh products. Our annual export value exceeds US$5 million, serving clients in North America, South America, Europe, Southeast Asia, Africa, Oceania, and the Middle East. We specialize in custom fabrication, ensuring each strainer basket meets your exact specifications. Our factory is located in Hengshui, Hebei, China, with convenient shipping from Tianjin, Qingdao, and Shanghai ports.
We offer competitive pricing, fast lead times, and rigorous quality control. Every strainer basket undergoes dimensional inspection, mesh integrity testing, and surface finish verification before shipment. Whether you need a standard 4" Tri-Clamp model or a custom design, our team is ready to assist. Contact us today for a quote or sample request.
Frequently Asked Questions
-
What materials are available for the strainer basket?
We offer 304 stainless steel (standard) and 316L stainless steel for enhanced corrosion resistance. Both are food-grade and compliant with sanitary standards. -
Can I order a different mesh size?
Yes, we can customize the mesh opening from 0.1mm to 2mm. Please provide your required micron rating and we will produce accordingly. -
How do I clean the strainer basket?
The smooth 120 grit finish allows easy cleaning with water, mild detergents, or CIP (Clean-in-Place) systems. For stubborn residues, soak in warm water briefly. -
What is the maximum operating temperature?
Standard range is -20°C to 150°C. For higher temperature applications, we can use special stainless steel grades or gasket materials – please inquire. -
Is this strainer basket suitable for pharmaceutical use?
Yes, the 0.5mm mesh and sanitary finish make it ideal for pharmaceutical filtration where particle retention and cleanability are critical. We can also provide surface finish documentation. -
Do you offer samples before bulk order?
Absolutely. We can provide a sample unit for testing. Sample cost is affordable and we will refund the sample fee for bulk orders above a certain quantity. -
What is the lead time for standard orders?
For standard 4" Tri-Clamp strainer baskets, lead time is typically 5-10 working days. Custom orders may take 10-15 working days depending on complexity. -
Can I get a pressure rating higher than 150 psi?
Yes, we can design strainer baskets with reinforced construction for higher pressure. Contact our technical team with your specific requirements.
With our proven track record and dedication to quality, you can trust Anping County Boli Hardware Wiremesh Products Factory for your sanitary filtration needs. Request a quote or contact us for more details.
