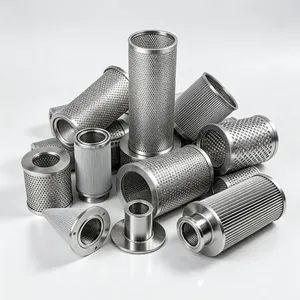

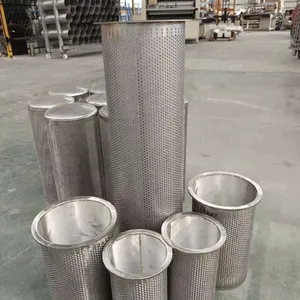

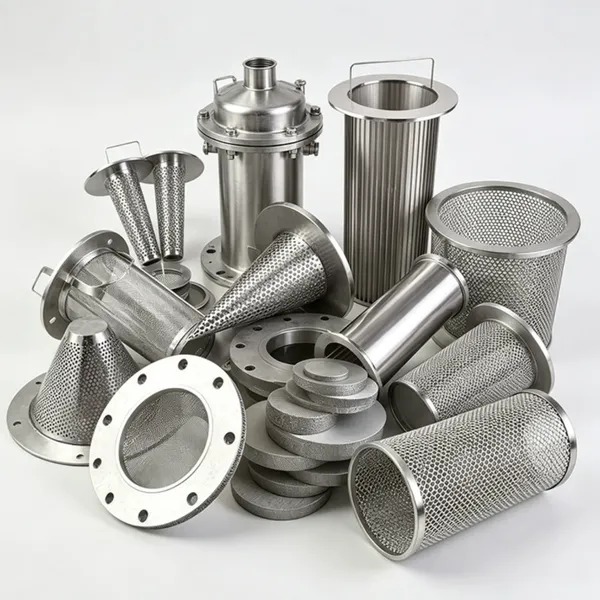

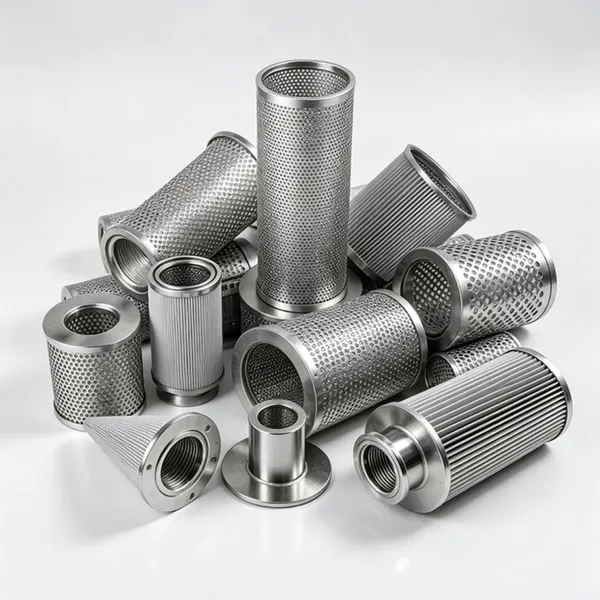

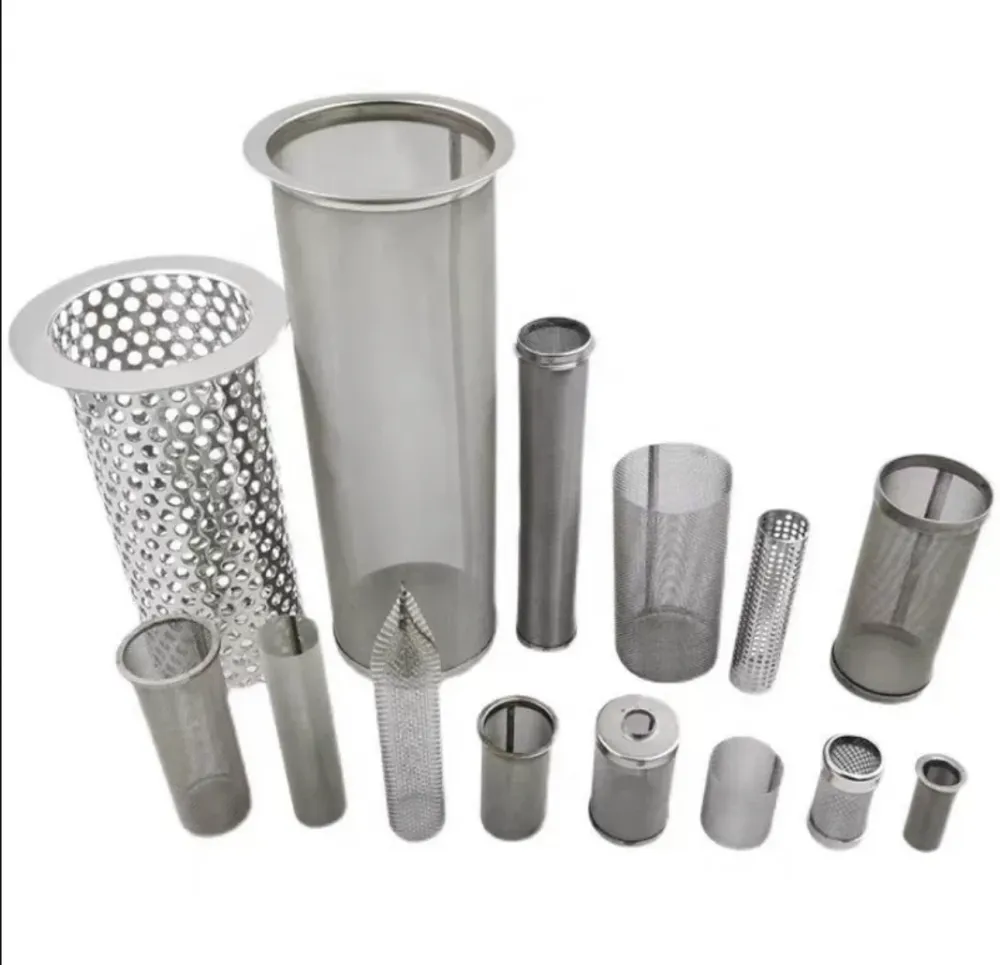

Help Center316L Stainless Steel High Pressure Filter Cartridge 3000 PSI 40" Long
Product Spotlights
Related Products
-
316L Stainless Steel 0.5 μm Sintered Filter Cartridge 2.5" OD 1" NPTNegotiableMOQ: 1 Piece -
316L Stainless Steel Pleated Filter Cartridge 0.5 Micron 1/4 NPT ConnectionNegotiableMOQ: 1 Piece
-
304 Stainless Steel 100 Micron Pleated Filter Cartridge 20" Length for Water FiltrationNegotiableMOQ: 1 Piece
-
304 Stainless Steel Filter Cartridge 0.22 μm for Pharmaceutical Sterile FiltrationNegotiableMOQ: 1 Piece
-
304 Stainless Steel 50 Micron Wound Filter Cartridge 10" 30" Length OptionsNegotiableMOQ: 1 Piece
As a trusted manufacturer from Anping County Boli Hardware Wiremesh Products Factory, established in 1998, we are proud to introduce our 316L Stainless Steel High Pressure Filter Cartridge rated for 3000 PSI and 40 inches long. This heavy-duty filter element is engineered to withstand extreme operating conditions while delivering consistent filtration performance. With over two decades of experience in wire mesh manufacturing and annual exports exceeding US$5 million, our products are widely used across North America, South America, Europe, and Asia. The 316L stainless steel construction ensures superior corrosion resistance, making it ideal for aggressive media in high-pressure systems.
Key Features & Technical Specifications
- Premium 316L Stainless Steel Material: Low carbon content reduces sensitization during welding, maintaining corrosion resistance in chloride environments.
- High Pressure Rating (3000 PSI): Robust construction with reinforced end caps and center tubes to prevent deformation under extreme pressure.
- 40-Inch Length: Standard industrial length for high-flow applications, compatible with most filter housings.
- Wide Micron Range: Available from 1 micron to 100 microns (customizable upon request).
- Versatile End Cap Configurations: Open end, double open end, or custom designs with various seal materials (Viton, EPDM, Buna-N).
- High Flow Capacity: Pleated media design maximizes surface area, reducing pressure drop and extending service life.
- Easy Cleaning & Reusability: Backwashable and reusable, lowering long-term operational costs.
| Parameter | Value |
| Material | 316L Stainless Steel |
| Pressure Rating | 3000 PSI (20.7 MPa) |
| Length | 40 inches (1016 mm) |
| Outer Diameter | 2.5 inches (standard, customizable) |
| Filtration Grade | 1–100 microns (optional) |
| Operating Temperature | -20°C to 250°C (depending on seal) |
| Seal Options | Viton, EPDM, Buna-N, Silicone |
| End Cap Type | Open end / Double open end / Custom |
Our 316L stainless steel high pressure filter cartridge is designed to meet the demanding requirements of oil & gas, petrochemical, chemical processing, water injection, and hydraulic systems. The pleated structure provides a large filtration area, ensuring efficient particle removal while maintaining low differential pressure. Each cartridge is manufactured with precision winding and welding techniques to ensure uniform pore size and structural integrity. The 316L grade offers excellent resistance to pitting and crevice corrosion in chloride-rich environments, such as seawater or brine applications.
Customer Benefits
- Reduced Downtime: Reusable cartridges can be cleaned and reinstalled, minimizing filter replacement frequency.
- Cost-Effective: Long service life and low maintenance reduce total cost of ownership.
- High Performance: Consistent filtration efficiency even under fluctuating pressure and flow conditions.
- Customizable Options: Micron rating, end cap design, seal material, and surface finish can be tailored to your specific process.
- Global Compatibility: Standard 40-inch length fits most industrial filter housings, simplifying retrofitting.
At Anping County Boli Hardware Wiremesh Products Factory, we have been manufacturing wire mesh products since 1998. Our factory is located in Hengshui, Hebei, China, and we export to over 15 regions worldwide, including North America, Europe, and Oceania. With an annual export value of US$5–10 million, we have established long-term partnerships with clients in the petroleum, chemical, and water treatment industries. Our production capacity, strict quality control, and commitment to innovation ensure that every filter cartridge meets rigorous standards. We offer custom solutions based on your drawings or samples, and we can provide samples for evaluation before mass production.
We invite you to contact us for a quote or technical discussion. Our team is ready to assist you with application recommendations and after-sales support. Choose Boli Hardware for reliable, high-pressure filtration solutions that deliver consistent performance and value.
Frequently Asked Questions
-
Q: What is the maximum operating temperature for this cartridge?
A: The maximum temperature depends on the seal material. For Viton seals, it is up to 250°C; for EPDM, up to 150°C; for Buna-N, up to 120°C. Please specify your required temperature range when ordering. -
Q: Can this cartridge be backwashed?
A: Yes, the 316L stainless steel structure is robust enough for backwashing. The pleated design allows effective cleaning. However, the frequency of backwashing depends on the contaminant load and filtration micron rating. -
Q: Is the cartridge suitable for potable water?
A: 316L stainless steel is food-grade and can be used in potable water systems. If you require FDA or NSF certification, please contact us for custom documentation. -
Q: What micron ratings are available?
A: We offer micron ratings from 1 micron to 100 microns. For specific requirements like 0.5 micron or 200 micron, please inquire about custom options. -
Q: Do you offer end cap configurations other than open end?
A: Yes, we offer double open end, closed end with center bolt, and custom designs. Please provide your housing specifications or drawings. -
Q: What is the typical lead time for this product?
A: Standard lead time is 15–25 working days, depending on quantity and customization. Sample orders can be ready within 7–10 days. -
Q: Can I get a sample before placing a bulk order?
A: Absolutely. We provide samples for evaluation. The sample cost is negotiable, and we offer free samples for established clients or upon approval. -
Q: Do you test the pressure rating of each cartridge?
A: Yes, we conduct hydrostatic pressure testing on a random sample basis. For critical applications, 100% testing can be arranged at an additional cost.
For more information or to place an order, please contact our sales team. We ship from Tianjin, Qingdao, Shanghai, and Foshan ports, ensuring fast delivery to global destinations.
