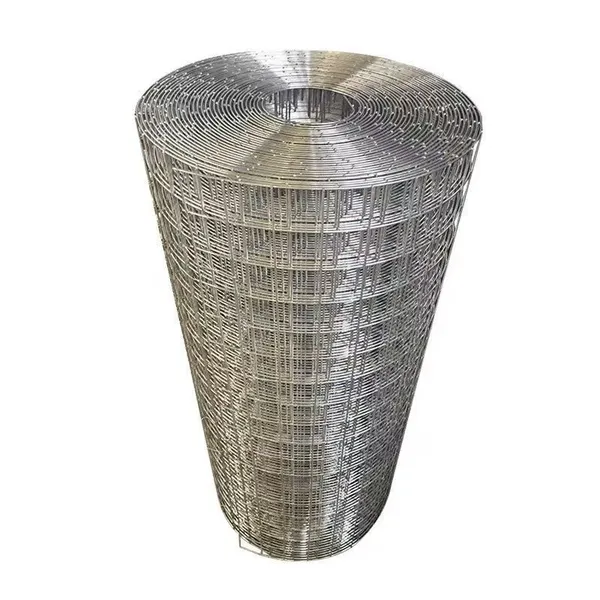

Anping Xinye Metal Wire Mesh Products Co., Ltd is proud to present our premium 201, 304, 316 Stainless Steel Welded Wire Mesh, specifically engineered for industrial filtration and sieving applications. With over 20 years of manufacturing experience in the wire mesh industry, we combine precision welding technology with high-quality raw materials to deliver meshes that offer outstanding durability, corrosion resistance, and consistent performance. Whether you need to filter fine particles, separate solids from liquids, or sieve bulk materials, our welded wire mesh provides a reliable and cost-effective solution. Each panel is produced under strict quality control, ensuring uniform openings and strong weld points that withstand repeated use.
Our stainless steel welded wire mesh is available in three popular grades: 201, 304, and 316. Each grade offers distinct properties to match different working environments. Below we outline the key features, technical specifications, and benefits of our product.
Key Features
- High Corrosion Resistance: 304 and 316 grades provide excellent resistance to acids, alkalis, and chlorides, making them ideal for chemical processing and marine environments.
- Precise Mesh Openings: Welded construction ensures uniform square or rectangular openings, allowing accurate particle size separation.
- Strong Welded Joints: Each intersection is resistance-welded, creating a rigid structure that resists deformation under heavy loads.
- Versatile Applications: Suitable for use in oil & gas filtration, water treatment, food processing, mining, pharmaceuticals, and construction sieving.
- Customizable Dimensions: Available in various wire diameters, mesh counts, panel sizes, and even cut-to-size strips or rolls.
- Optional Surface Treatments: Mill finish, bright annealed for a clean appearance, or PVC coating for extra protection in outdoor or abrasive environments.
Technical Specifications
| Parameter | Available Range |
|---|---|
| Material Grade | 201, 304, 316 |
| Mesh Count (per inch) | 1 × 1 to 100 × 100 |
| Wire Diameter | 0.5 mm – 6.0 mm |
| Panel Size (width × length) | 1 m × 2 m, 1.2 m × 2.4 m, or custom |
| Opening Size | 0.15 mm – 25 mm (square or rectangular) |
| Tensile Strength | ≥ 500 MPa (depending on grade) |
| Surface Finish | Mill finish, bright annealed, PVC coated, hot-dip galvanized (optional) |
Product Advantages & Customer Benefits
- Long Service Life: Stainless steel resists rust and chemical attack, reducing replacement frequency and lowering total cost of ownership.
- High Filtration Efficiency: Uniform mesh openings ensure consistent particle retention, meeting strict quality requirements in pharmaceutical or food applications.
- Easy to Clean: Smooth surface and welded construction allow simple rinsing or backwashing, minimizing downtime.
- Structural Integrity: Welded joints are stronger than woven mesh, ideal for high-pressure or high-vibration environments.
- Tailored Solutions: We can produce mesh with specific wire diameters, opening sizes, and panel dimensions to match your equipment or process.
Our manufacturing facility in Hengshui, Hebei, China, is equipped with advanced automatic welding machines capable of producing meshes from fine to heavy-duty. We export to over 30 countries worldwide, serving industries such as petrochemical, mining, agriculture, and water treatment. With a monthly production capacity exceeding 500,000 square meters, we ensure timely delivery even for large orders. All products are inspected for weld strength, opening uniformity, and surface quality before packaging.
Trust Anping Xinye for your filtration and sieving needs. We are committed to providing high-quality stainless steel welded wire mesh at competitive prices. Our experienced team offers technical support to help you select the right grade and specification. We welcome small trial orders and custom designs. Contact us today for a quote or to discuss your application requirements.
Frequently Asked Questions (FAQ)
Q1: What is the difference between 304 and 316 stainless steel welded wire mesh?
A: 316 contains molybdenum, which provides superior resistance to chlorides and acids, making it ideal for marine, chemical, and pharmaceutical environments. 304 is suitable for general industrial use where corrosion resistance is still required but at a lower cost.
Q2: Can you provide mesh with non-standard opening sizes?
A: Yes, we can customize the opening size and wire diameter to meet your specific filtration requirements. Please provide your desired mesh count or opening dimension.
Q3: What is the maximum panel size you can produce?
A: Our standard maximum panel size is 2 meters wide × 6 meters long, but we can also cut to smaller sizes or supply in rolls (for lightweight meshes).
Q4: Is the welded wire mesh suitable for high-temperature applications?
A: Stainless steel 304 and 316 can withstand continuous operating temperatures up to 870°C (1600°F) for 304 and 925°C (1700°F) for 316, but the exact limit depends on the mesh construction and environment. We recommend consulting our technical team for high-temperature uses.
Q5: Do you offer surface treatments like PVC coating or galvanizing?
A: Yes, we offer PVC coating, hot-dip galvanizing, and bright annealing as optional finishes. These can enhance corrosion resistance or provide a smoother surface for specific applications.
Q6: How do I determine the correct mesh size for my sieving application?
A: The required mesh size depends on the particle size you want to separate. For example, 20 mesh has openings of about 0.85 mm, while 100 mesh has openings of about 0.15 mm. We can help you choose based on your material and desired throughput.
Q7: What packaging do you use for export?
A: We use wooden crates or pallets with protective wrapping to prevent damage during transit. For small orders, we also offer cardboard boxes with foam padding.
Q8: Can I get a sample before placing a bulk order?
A: Certainly. We provide free samples of up to A4 size (subject to shipping cost). Contact our sales team to request a sample of your preferred grade and mesh specification.
Choose Anping Xinye Metal Wire Mesh Products Co., Ltd – your reliable partner in industrial filtration and sieving. With our dedicated factory, skilled workers, and quality-first approach, we ensure that every shipment meets your expectations. Let us help you improve your process efficiency with the right stainless steel welded wire mesh.
