Help CenterOEM Plastic Threaded Cap Mold With Knurling, Factory Direct With Mold Protection System, CMM Inspection Report Available
Product Spotlights
Related Products
-
Industrial Plastic Threaded Cap Mold With Knurling: Mold Protection and CMM Verification for SE Asian Industrial Container PackagingNegotiableMOQ: 5000 Pieces -
Heavy-Duty OEM Plastic Threaded Cap Mold With Knurling, IATF 16949 Certified, CMM Inspected Precision ToolingNegotiableMOQ: 5000 Pieces
-
OEM Plastic Threaded Cap Mold With Knurling, IATF 16949 Quality System, Heavy-Duty Construction for Continuous OperationNegotiableMOQ: 5000 Pieces
-
OEM Plastic Threaded Cap Mold With Knurling: CMM Inspected Precision Tooling With Mold Protection for SE Asian Personal Care PackagingNegotiableMOQ: 5000 Pieces
-
Heavy-Duty Plastic Threaded Cap Mold With Knurling: IATF 16949 Certified Changzhou Factory Tooling for SE Asian Container PackagingNegotiableMOQ: 5000 Pieces
Changzhou Hongxinyutai Precision Mold Co., Ltd. is a professional manufacturer with over 7 years of experience in precision mold making. We specialize in producing high-quality OEM Plastic Threaded Cap Molds with Knurling, offering factory-direct pricing, a built-in mold protection system, and comprehensive CMM inspection reports. Our molds are designed for long-lasting performance and consistent output, meeting the demanding needs of the bottle cap industry. With a factory size of 1,000–3,000 square meters and a team of 51–100 skilled employees, we are committed to delivering precision, reliability, and on-time delivery.

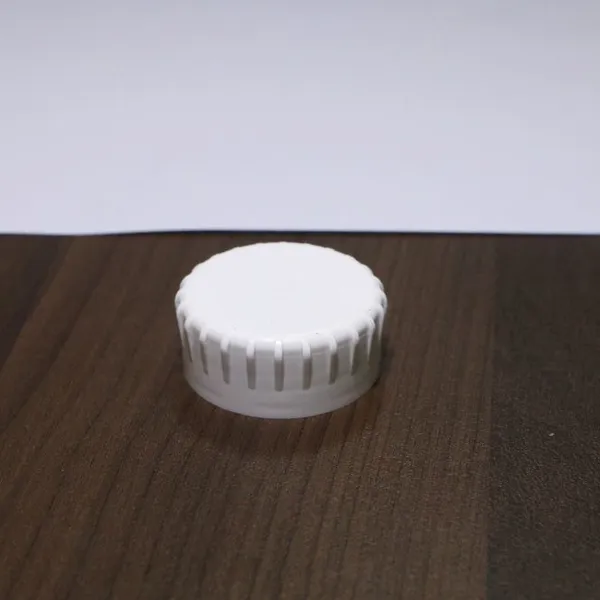

This product is engineered to produce threaded caps with knurled surfaces for enhanced grip and aesthetics. The mold protection system prevents damage during operation, extending mold life and reducing downtime. Each mold is inspected using a Coordinate Measuring Machine (CMM) to ensure dimensional accuracy, and the inspection report is provided with every shipment. Whether you need a single-cavity prototype or a multi-cavity production mold, we offer flexible customization to meet your specific cap design.
Key Features & Technical Specifications
- Knurling Design: Integrated knurling pattern on the cap surface for improved grip and brand differentiation.
- Mold Protection System: Built-in sensors and safety mechanisms to prevent mold collision, overheating, and overpressure, significantly reducing maintenance costs.
- High Precision: All critical dimensions are verified with CMM inspection, achieving tolerances as tight as ±0.01 mm.
- Durable Material: Constructed from premium tool steel (e.g., 718H, H13, S136) with heat treatment and nitriding for extended service life.
- Customizable Cavity: Available in single, 2-cavity, 4-cavity, or more, depending on production requirements.
- Easy Maintenance: Modular design allows quick replacement of wear parts, reducing turnaround time.
- Competitive Lead Time: Standard delivery in 30–45 days, with rush options available upon request.
| Parameter | Specification |
|---|---|
| Mold Steel Grade | 718H / H13 / S136 (optional) |
| Cavity Count | 1 – 16 cavities (customizable) |
| Injection System | Hot runner / cold runner (optional) |
| Cap Diameter Range | 20 mm – 60 mm (customizable) |
| Mold Base | LKM / HASCO / DME standard or custom |
| Mold Lifespan | 1,000,000+ shots (with proper maintenance) |
| Inspection Report | CMM report provided for each mold |
| Certification | TS16969 |
Advantages of Choosing Our Mold
- Factory Direct Pricing: No middlemen, you get the best value directly from the manufacturer.
- Complete Quality Assurance: Every mold undergoes rigorous CMM inspection and trial runs before shipment.
- Proven Mold Protection System: Reduces the risk of mold damage, ensuring consistent production and lower total cost of ownership.
- Experienced Team: Our engineers have extensive experience in threaded cap molds for various industries, including beverage, pharmaceutical, and cosmetic caps.
- Flexible Payment & Shipping: We ship via Jiangsu, Shanghai, or Shenzhen ports, and accept various payment terms.
- After-Sales Support: We provide technical guidance, spare parts, and mold maintenance advice.
Company Strength: Changzhou Hongxinyutai Precision Mold Co., Ltd. was established in 2017 and has grown to serve markets across North America, South America, Europe, Southeast Asia, Africa, Oceania, and the Middle East. Our factory spans 1,000–3,000 square meters and is equipped with advanced CNC machining centers, EDM machines, and CMM inspection equipment. With a dedicated team of 51–100 professionals, we have successfully delivered thousands of molds to satisfied clients worldwide. Our TS16969 certification reflects our commitment to quality management in the automotive supply chain, which also benefits our mold manufacturing process.
We understand that choosing the right mold partner is critical for your production success. That’s why we offer transparent communication, detailed CMM inspection reports, and a mold protection system that minimizes production risks. Whether you need a standard threaded cap mold or a custom design with knurling, we are ready to provide a solution that meets your specifications. Contact us today to discuss your project and request a quote. Let us help you bring your cap designs to life with precision and reliability.
Frequently Asked Questions (FAQ)
Q1: What is the typical lead time for this mold?
A: Standard lead time is 30–45 days from order confirmation and design approval. Rush orders may be accommodated with an additional fee, subject to our production schedule.
Q2: Can you customize the knurling pattern?
A: Yes, we can customize the knurling pattern, depth, and pitch according to your design or sample. Please provide your technical drawing or reference sample.
Q3: How does the mold protection system work?
A: The system monitors key parameters such as mold temperature, injection pressure, and closing force. If abnormal conditions are detected, the system automatically stops the machine to prevent damage, thereby protecting the mold and reducing downtime.
Q4: Do you provide CMM inspection reports for every mold?
A: Yes, each mold is inspected using a Coordinate Measuring Machine (CMM) before shipment, and a detailed inspection report is provided. We can also share photos or videos of the inspection process upon request.
Q5: What materials are used for the mold?
A: We typically use high-quality tool steel such as 718H, H13, or S136, depending on the production volume and material to be molded. Heat treatment and surface coating options are available for extended life.
Q6: Do you offer trial runs or sample molding?
A: Yes, we can perform trial runs in our facility to verify the mold performance. Sample caps can be provided for your evaluation before mass production.
Q7: What is the warranty period?
A: We offer a standard warranty of 12 months from the date of shipment, covering defects in materials and workmanship. The mold protection system also helps reduce warranty claims by preventing operational damage.
Q8: Can you handle large-volume orders for multi-cavity molds?
A: Absolutely. We have the capacity to produce multi-cavity molds (up to 16 cavities or more) with consistent quality. Our factory is equipped to handle large-scale production molds efficiently.
