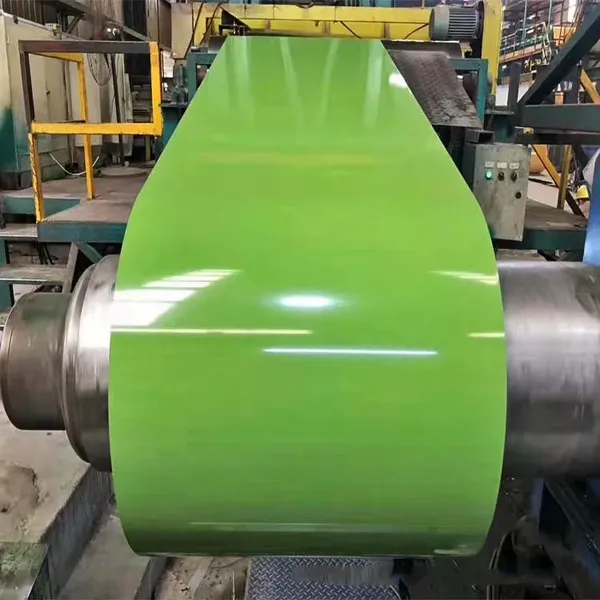

PPGI Prepainted Galvanized Steel Coil 0.35mm 1250mm Width 20 Micron Top Coat 5 Micron Back Coat For Building Roofing

PPGI Prepainted Galvanized Steel Coil 0.35mm 1250mm Width 20 Micron Top Coat 5 Micron Back Coat For Building Roofing thumbnail-3

PPGI Prepainted Galvanized Steel Coil 0.35mm 1250mm Width 20 Micron Top Coat 5 Micron Back Coat For Building Roofing thumbnail-4

PPGI Prepainted Galvanized Steel Coil 0.35mm 1250mm Width 20 Micron Top Coat 5 Micron Back Coat For Building Roofing thumbnail-5

PPGI Prepainted Galvanized Steel Coil 0.35mm 1250mm Width 20 Micron Top Coat 5 Micron Back Coat For Building Roofing photo-1

PPGI Prepainted Galvanized Steel Coil 0.35mm 1250mm Width 20 Micron Top Coat 5 Micron Back Coat For Building Roofing photo-2

PPGI Prepainted Galvanized Steel Coil 0.35mm 1250mm Width 20 Micron Top Coat 5 Micron Back Coat For Building Roofing photo-3

PPGI Prepainted Galvanized Steel Coil 0.35mm 1250mm Width 20 Micron Top Coat 5 Micron Back Coat For Building Roofing photo-4

PPGI Prepainted Galvanized Steel Coil 0.35mm 1250mm Width 20 Micron Top Coat 5 Micron Back Coat For Building Roofing photo-5

Product Spotlights

PPGI Prepainted Galvanized Steel Coil with 0.35mm thickness, 1250mm width, 20+5 micron dual coating, ideal for building roofing. ISO9001 certified, customizable colors, superior weatherability, cost-effective, and globally supplied by Hemaokang Steel.

Negotiable MOQ: 1 Ton (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Application:

Other, Building Roofing

Standard:

Other, ISO9001

Surface Treatment:

Other, Chromated / Passivated

Contact Supplier Request Quote Chat Now

Hemaokang Steel (Shandong) Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Application Other, Building Roofing

Standard Other, ISO9001

Surface Treatment Other, Chromated / Passivated

Thickness 0.35mm

Width 1250mm

Top Coat Thickness 20 Micron

Back Coat Thickness 5 Micron

Material Prepainted Galvanized Steel

Coating Type Polyester / PVDF (optional)

Color Customizable

Hemaokang Steel (Shandong) Co., Ltd., established in 2025, is a professional manufacturer and exporter of high-quality steel products. With an annual export value exceeding US$50 million and a dedicated team of 51–100 employees, we are committed to delivering reliable solutions for the global construction industry. Our PPGI Prepainted Galvanized Steel Coil (0.35mm thickness, 1250mm width, 20 micron top coat, 5 micron back coat) is specifically engineered for building roofing applications, offering superior corrosion resistance, excellent formability, and long-lasting aesthetics. This product combines the strength of galvanized steel with a durable paint finish, making it an ideal choice for roofing, wall cladding, and other architectural projects.

Our PPGI coil is manufactured using advanced continuous coating technology, ensuring uniform paint thickness and consistent color across the entire coil. The 20 micron top coat provides robust protection against UV radiation, weather extremes, and mechanical wear, while the 5 micron back coat enhances anti-corrosion performance on the reverse side. The 0.35mm thickness and 1250mm width are optimized for easy handling, cutting, and profiling, reducing material waste and installation time. Whether you are a roofing contractor, building material distributor, or construction project manager, this product delivers reliable performance and cost efficiency.

Key Features & Technical Specifications

Base Material: High-quality hot-dip galvanized steel (HDGI) with a zinc coating weight of 80–120 g/m² (optional).
Paint System: Polyester (PE) or PVDF top coat available; primer layer included for enhanced adhesion.
Thickness Tolerance: ±0.01mm, ensuring consistent dimensions for precision applications.
Width Tolerance: ±2mm, suitable for standard roll forming machines.
Coating Hardness: HB pencil hardness, scratch-resistant surface.
Flexibility: Passes 180° bend test without cracking or peeling (T-bend ≤ 2T).
Weatherability: Accelerated UV aging test (QUV) for 1000+ hours without significant color change or gloss loss.
Certification: Manufactured under ISO9001 quality management system.

Parameter	Value
Thickness	0.35mm (±0.01mm)
Width	1250mm (±2mm)
Top Coat Thickness	20 Micron (μm)
Back Coat Thickness	5 Micron (μm)
Zinc Coating	80–120 g/m² (optional)
Paint Type	Polyester (PE) / PVDF / SMP (customizable)
Color Options	RAL or custom color matching available
Coil Weight	3–8 tons per coil (depending on OD)
Applications	Roofing sheets, wall panels, corrugated sheets, facades

Why choose our PPGI coil for your roofing project? The 0.35mm thickness strikes the perfect balance between strength and weight, reducing structural load while maintaining excellent load-bearing capacity. The 1250mm width is a standard size for most roll-forming profiles, ensuring compatibility with existing machinery. The dual-layer coating system (20+5 micron) provides comprehensive protection — the top coat resists fading, chalking, and corrosion, while the back coat prevents rust formation on the underside, especially in humid or coastal environments. Additionally, our coils are produced with strict quality control, including salt spray testing (ASTM B117) for up to 500 hours, ensuring long service life even in harsh conditions.

Customer Benefits

Cost Savings: Reduced material waste due to precise thickness and width tolerances; lower transportation costs due to lightweight coil.
Time Efficiency: Easy to cut, bend, and install; suitable for both manual and automated production lines.
Aesthetic Appeal: Wide range of colors and gloss levels (glossy, matte, textured) to match architectural designs.
Durability: Excellent resistance to UV rays, acid rain, and temperature fluctuations; maintains color retention for years.
Eco-Friendly: Prepainted steel is fully recyclable; our production process complies with environmental regulations.

At Hemaokang Steel (Shandong) Co., Ltd., we take pride in our ISO9001 certified manufacturing facility and our experienced team of 51–100 professionals. Our annual export value of US$50–100 million and presence in markets across North America, South America, Europe, Southeast Asia, Africa, Oceania, the Middle East, and Asia demonstrate our global reach and reliability. We have successfully supplied PPGI coils to numerous roofing projects, earning positive feedback for product consistency and on-time delivery. Our dedicated after-sales team provides technical support and quick response to any inquiries, ensuring a smooth purchasing experience.

Ready to enhance your building project with high-quality PPGI roofing coils? Contact us today for a competitive quotation, free samples, or customized specifications. With our strong production capacity and flexible order quantities (from trial orders to bulk shipments), we are your trusted partner in the steel industry. Choose Hemaokang Steel for reliable performance, competitive pricing, and professional service.

Frequently Asked Questions (FAQ)

Q: What is the minimum order quantity (MOQ) for this PPGI coil?
A: Our MOQ is typically 1 ton (one coil) for standard sizes. For custom colors or special coatings, the MOQ may be higher. Please contact us to discuss your specific requirements.
Q: Can you provide samples before bulk order?
A: Yes, we offer free A4 size samples (prepaid shipping) for quality evaluation. Samples can be cut from actual production coils to match your desired color and thickness.
Q: What is the lead time for this product?
A: Standard lead time is 15–25 days after order confirmation, depending on quantity and coating specifications. Urgent orders can be prioritized upon request.
Q: Is the coil suitable for outdoor roofing in tropical climates?
A: Absolutely. Our PPGI coil with 20 micron top coat (PVDF option recommended) is designed to withstand high UV exposure, humidity, and temperature variations. The back coat prevents condensation-related corrosion.
Q: Do you offer custom colors and gloss levels?
A: Yes, we can match RAL colors or provide custom colors based on your sample. Gloss levels from 20% to 80% are available. Minimum order for custom colors may apply.
Q: How is the coil packaged for export?
A: Each coil is securely packed with waterproof paper, plastic film, and steel strapping. Additional wooden crating or pallet packaging is available for extra protection during sea freight.
Q: What payment terms do you accept?
A: We accept T/T (30% deposit, 70% balance before shipment), L/C at sight, and other flexible terms for regular customers. Payment terms are negotiable.
Q: Do you have any certifications for quality assurance?
A: Our factory is ISO9001 certified. We also perform in-house testing for thickness, coating adhesion, hardness, and salt spray resistance. Third-party inspection (e.g., SGS, BV) is welcome at buyer's cost.
