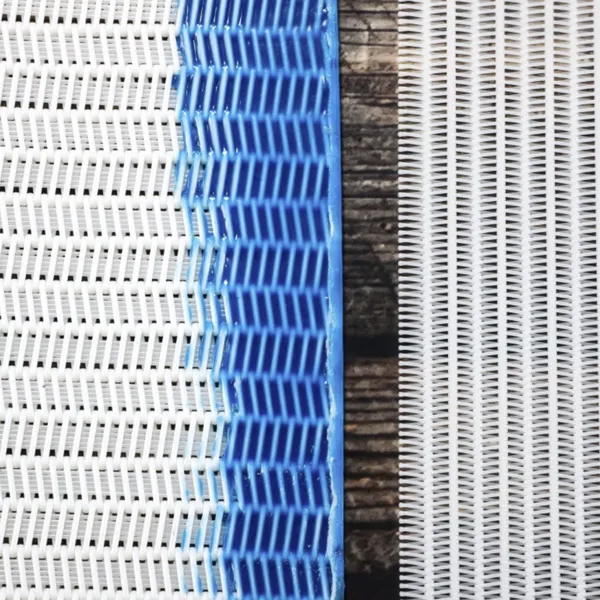

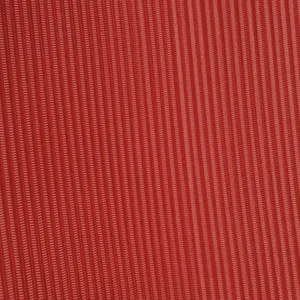

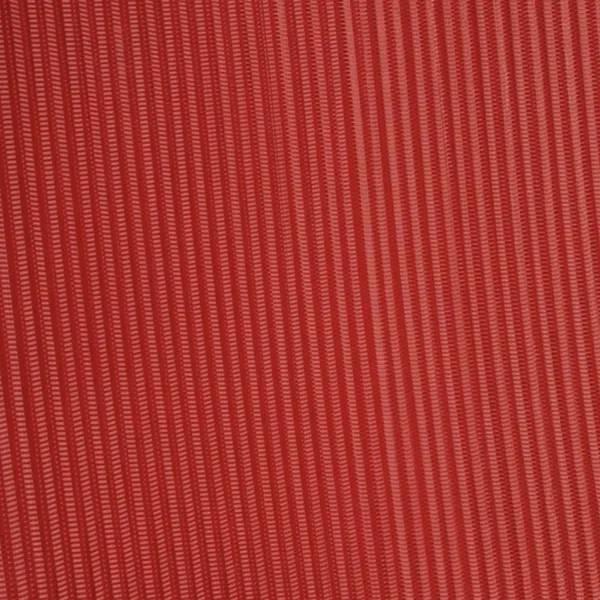

Help CenterPolyester Dewatering Mesh Twill Weave, 0.2mm Wire Diameter, 150°C Heat Resistance, 500N/cm Tensile Strength
Product Spotlights
Related Products
-
Polyester Dewatering Mesh Plain Weave, 1.2m Width, 200µm Mesh Opening, Standard Compliant for Industrial FiltrationNegotiableMOQ: 1 Square Meter -
Polyester Dewatering Mesh 0.8mm Opening, 2m Width, High Tensile Strength, Customizable Length per OrderNegotiableMOQ: 1 Square Meter
-
Polyester Dewatering Mesh 100% Virgin Monofilament, 0.5mm Opening, ISO 9001 Compliant for Sludge FiltrationNegotiableMOQ: 1 Square Meter
-
Polyester Dewatering Mesh for Wastewater Treatment, 0.5mm Opening, 1-Year Warranty, Free Sample AvailableNegotiableMOQ: 1 Square Meter
-
Polyester Dewatering Mesh, 120 Mesh Count, 0.12mm Wire Diameter, Open Area 45%, for Sludge DewateringNegotiableMOQ: 1 Square Meter
Welcome to Anping County Boli Hardware Wiremesh Products Factory – a trusted manufacturer established in 1998 with annual export value ranging from US$5 million to US$10 million. Our Polyester Dewatering Mesh Twill Weave is engineered to deliver exceptional performance in demanding solid-liquid separation processes. With a precise 0.2mm wire diameter, 150°C heat resistance, and 500N/cm tensile strength, this mesh offers reliable filtration efficiency and long service life. Whether you need dewatering for mining, food processing, or wastewater treatment, our product is designed to meet your rigorous industrial requirements.
Product Features & Technical Specifications
Our polyester dewatering mesh is woven in a tight twill pattern, providing a smooth surface and consistent filtration pores. The material is 100% virgin polyester, offering excellent chemical resistance to acids, alkalis, and organic solvents. Below are the key parameters:
| Property | Value |
| Material | 100% Virgin Polyester (PET) |
| Weave Pattern | Twill Weave |
| Wire Diameter | 0.2 mm |
| Heat Resistance | 150°C (continuous) |
| Tensile Strength | 500 N/cm |
| Mesh Opening Range | Customizable (e.g., 50–500 microns) |
| Standard Width | 1m – 2m (other widths available) |
| Color | White, Yellow, or custom |
Key Advantages & Customer Benefits
- Excellent Dimensional Stability: The twill weave structure ensures minimal stretching under load, maintaining consistent filtration performance over time.
- High Temperature Tolerance: With 150°C heat resistance, this mesh can handle hot process streams without deformation or degradation.
- Superior Mechanical Strength: 500 N/cm tensile strength provides robustness against high-pressure washing and mechanical stress during dewatering operations.
- Chemical Resistance: Polyester is resistant to most acids, alkalis, and solvents, making it suitable for harsh chemical environments.
- Easy Cleaning & Reusability: The smooth twill surface allows easy cake release and reduces blinding, extending service life and lowering replacement costs.
- Customizable Specifications: We offer various mesh openings, widths, and lengths to match your specific machine or process requirements.
Application Areas
This polyester dewatering mesh is widely used in:
- Mining & Mineral Processing – tailings dewatering, concentrate filtration
- Food & Beverage – juice extraction, starch dewatering, sugar refining
- Chemical Industry – catalyst recovery, slurry filtration
- Wastewater Treatment – sludge dewatering, belt press filtration
- Pharmaceutical & Biotechnology – fine particle separation
Why Choose Anping Boli?
Since 1998, we have been dedicated to manufacturing high-quality wire mesh products. Our factory is located in Hengshui, Hebei – the wire mesh capital of China. With annual export value exceeding US$5 million, we serve clients across North America, South America, Europe, Asia, Africa, and Oceania. Our products are shipped from major ports including Tianjin, Qingdao, Shanghai, and Foshan. We have a strong reputation for on-time delivery, consistent quality, and responsive customer service. We do not claim unverified certifications, but we rigorously test each batch for tensile strength, heat resistance, and dimensional accuracy. Our team is ready to provide samples, technical support, and customized solutions.
Frequently Asked Questions (FAQ)
-
Q: What is the typical mesh opening range for this product?
A: While our standard offering includes custom mesh openings, common values range from 50 to 500 microns. Please contact us with your specific filtration requirement. -
Q: Can this mesh be used in continuous high-temperature washing?
A: Yes, the polyester material can withstand continuous temperatures up to 150°C. For intermittent exposure, higher temperatures may be acceptable – we recommend testing under your actual conditions. -
Q: Is the mesh suitable for acidic or alkaline environments?
A: Polyester exhibits good resistance to many acids and alkalis. However, strong oxidizing agents or prolonged exposure to high concentrations may affect performance. We advise consulting our technical team for your specific chemical composition. -
Q: What is the minimum order quantity (MOQ)?
A: Our MOQ is typically 100 square meters for standard specifications. For custom sizes or colors, MOQ may vary. Please inquire for details. -
Q: How long is the lead time for production?
A: For standard items, lead time is 7–15 working days after order confirmation. For custom specifications, it may be 15–25 working days depending on complexity. -
Q: Do you provide samples for testing?
A: Yes, we offer free samples (customer pays shipping) for your evaluation. Please provide your mesh opening and size requirements. -
Q: Can you customize the width and length?
A: Absolutely. We can cut the mesh to your required width (up to 2m) and length per roll. Custom widths are also available upon request. -
Q: What is the packaging method?
A: Rolls are wrapped in plastic film and then packed in woven bags or cartons to prevent damage during transit. For export orders, we use palletized packaging with moisture-proof lining.
We invite you to contact us for a quote or technical discussion. With our decades of experience and global reach, we are confident in providing the right dewatering mesh for your operation. Let us help you improve filtration efficiency and reduce downtime.
