Help CenterYRT200 Bearing for CNC Rotary Table -swivel Rotary Table-Rotary Tilting Table-Rotary Milling Head
Product Spotlights
2.Compact integrated structure, save installation space for machine tools
3.Built-in preload design, easy installation, no extra pre-tension adjustment needed
Related Products
-
YRT260 Bearing for CNC Rotary Table -swivel Rotary Table-Rotary Tilting Table-Rotary Milling HeadNegotiableMOQ: 1 Combo -
YRT325 Bearing for CNC Rotary Table -swivel Rotary Table-Rotary Tilting Table-Rotary Milling HeadNegotiableMOQ: 1 Combo
-
YRT395 Bearing for CNC Rotary Table -swivel Rotary Table-Rotary Tilting Table-Rotary Milling HeadNegotiableMOQ: 1 Combo
-
YRT460 Bearing for CNC Rotary Table -swivel Rotary Table-Rotary Tilting Table-Rotary Milling HeadNegotiableMOQ: 1 Combo
-
YRT580 Bearing for CNC Rotary Table -swivel Rotary Table-Rotary Tilting Table-Rotary Milling HeadNegotiableMOQ: 1 Combo
YRT200 rotary table bearing is included by a thrust race/radial race,a thrust gasket, two needle rollers with cage assembly and a set of centripetal roller. There is the screw holes which is used for the installation on the race and circle. This series bearings have the characteristics of high stiffness, good bearing capacity and running accuracy, and can withstand the bidirectional axial load, radial load and tilting moment.
Applications:
•Precision machine tools
•precision Turntable, CNC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
•Indexing plate of other precision machines
·dividing head, rotary milling head.

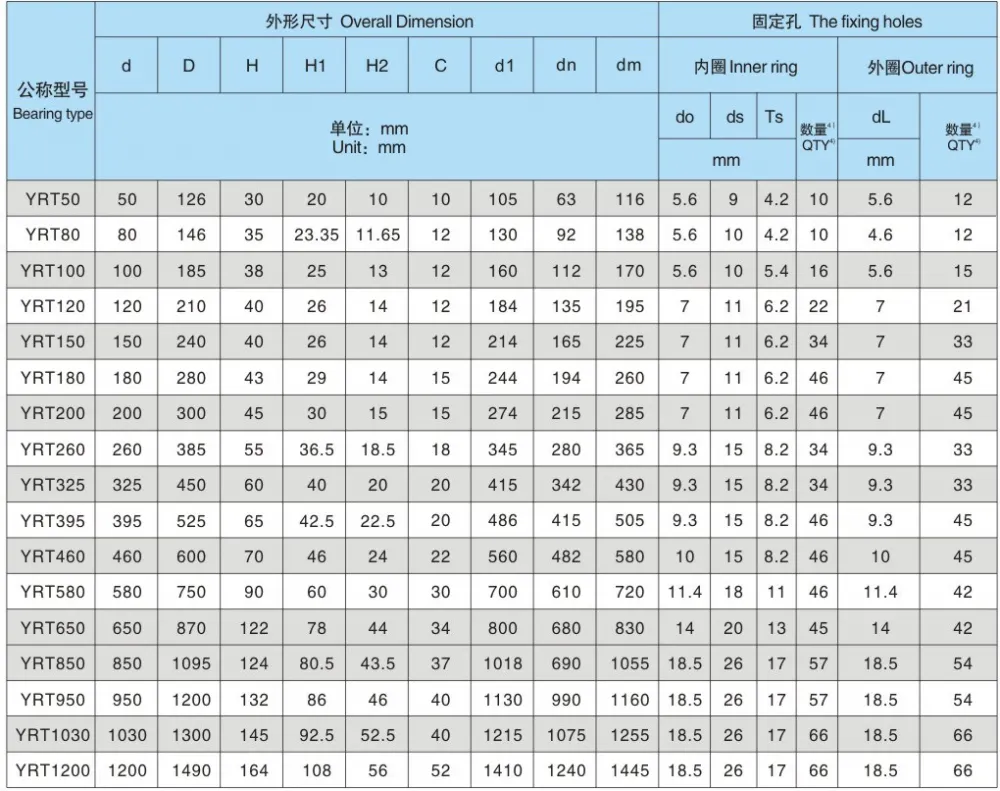

parameters：
Luoyang Yadian Mechanical Equipment Co., Ltd. mainly produces a series of precision bearings including turntable bearings, crossed roller bearings, crossed tapered bearings, harmonic reducer bearings, flexible bearings, RV reducer bearings, constant cross-section thin-section bearings, precision machine tool spindle bearings, and precision rotary table bearings. The bearing production covers inner diameters from Φ3mm to outer diameters of Φ2500mm, with precision grades of P5, P4, and P2; higher precision bearings can be provided upon request. The company's leading products are YRT, YRTS, YRTM, ZKLDF, and ZKLDFM series turntable bearings, as well as RB RE, RU, RA, RA-C, RAU, CRB, CRBC, CRBH, CRBS, CRBT, CRBTF, XU, XA, XI XSU, XSA, XSI, and SX series crossed cylindrical roller bearings, and JXR, XR, and Z series crossed tapered roller bearings. Meanwhile, Luoyang Yadianings can also provide CSG and SHF series harmonic reducer bearings, flexible bearings, RV reducer bearings, constant cross-section thin-section bearings, precision machine tool spindle bearings, precision rotary bearings, and non-standard customized bearings. Currently, the YDPB series products have been widely applied in fields such as CNC machine tools, industrial robots, service robots, collaborative, AGVs, SCARA robots, exoskeleton robots, surgical robots, hexapod robots, quadruped robots, humanoid robots, aviation equipment, radar communications, medical equipment, precision measuring instruments printing and dyeing equipment, alignment platforms, optical equipment, industrial rotary tables, hollow rotary platforms, DD motors/direct drive motors, harmonic reducers, and planetary reducers. They are matched with universities and research institutes, used in special robots, mobile radar vehicles, and national key scientific research projects to replace imports, earning high praise from customers.
