I. Basic Product Parameters
Full Product Name: GATO Nano Cesium Tungsten Dispersion (Water-based)
Effective Solid Content: 25%
Core Nano Powder: Cesium Tungsten Bronze (GATO)
Dispersion Medium: Water-based, zero VOC, no organic solvents, environmentally friendly and non-toxic. It has excellent compatibility with various water-based resins such as water-based acrylic, water-based polyurethane, and water-based emulsions.

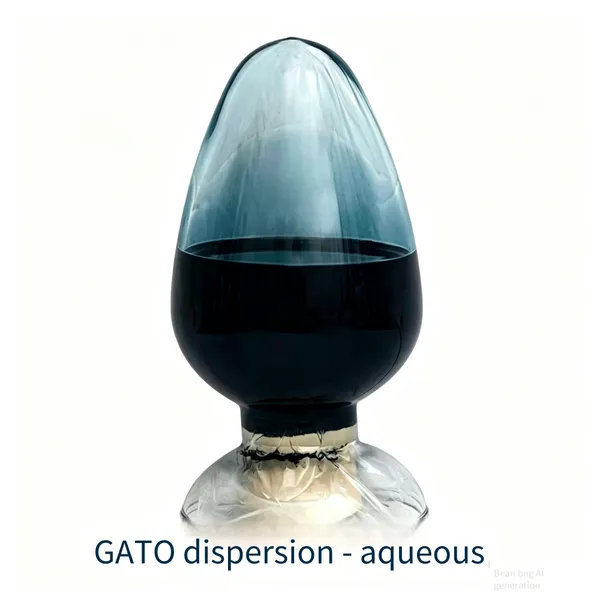

Appearance: A uniform dark blue-black transparent water dispersion, no precipitation, no stratification, no particle agglomeration, high dispersion transparency, and excellent long-term storage stability.
Particle Size Specification: The primary particle size of the powder is controlled within 10–30nm. After multi-stage sanding + water-based special anionic surface modification treatment, the powder is uniformly dispersed and is not easy to agglomerate or coarsen during long-term storage.
II. Core Product Features
1. Spectral Regulation, Excellent Heat Insulation and Light Transmission
The core active ingredient of this product is nano cesium tungsten bronze powder, which has a unique broad-spectrum selective absorption function. The infrared blocking rate for the near-infrared band (780–2500nm) can reach over 90%, effectively blocking the heat source of solar thermal radiation; it has high visible light transmittance, and the formed film is clear and transparent without defects such as graying, blackening, or high haze; it can block over 99% of the full ultraviolet band.
The product simultaneously achieves the three performances of high light transmission, high heat insulation, and high anti-ultraviolet. The comprehensive heat insulation and weather resistance effects are far superior to traditional heat insulation fillers such as carbon black, iron oxide, ATO, and ITO. It is the preferred functional raw material for environmentally friendly water-based heat insulation coatings, water-based functional inks, and transparent water-based heat insulation films.
2. Pure Water Dispersion System, Green and Solvent-free
This product uses water as the dispersion carrier and does not contain organic solvents such as ethanol, esters, and ethers, with outstanding environmental protection advantages:
- Zero VOC, no pungent odor. There is no risk of flammability and explosion during the entire production and construction process. No explosion-proof workshop is required, significantly reducing the factory's fire protection and waste gas treatment costs.
- Strong wetting adaptability. It has good wetting and penetrating power for glass, PET, PC, acrylic, wall substrates, and paper substrates, and the coating adhesion is stable.
- Extremely wide compatibility range. It can be miscible with most water-based systems such as water-based acrylic, water-based polyurethane, water-based epoxy, styrene-acrylic emulsion, and water-based silicone in any proportion without flocculation, precipitation, or demulsification.
- It meets the environmental protection control standards for interior decoration, children's products, and food contact grades, and is suitable for low-odor production scenarios such as indoor spraying, home decoration coatings, and children's protective coatings.
3. Ultra-high Water Dispersion Stability, Convenient Storage and Use
A special hydrophilic anionic modified coating layer is customized for the pure water polar system, perfectly solving the industry problems of easy agglomeration, sedimentation, and demulsification of nano cesium tungsten powder in water.
The product can be stably stored for more than 6 months under normal temperature and sealed conditions. Only very slight soft sedimentation occurs after long-term standing, and it can instantly return to a uniform and transparent state with low-speed stirring. No secondary sanding or ultrasonic dispersion is required. It can be directly diluted with deionized water as needed during construction without complex pretreatment, significantly reducing the factory's loss, rework rate, and manual debugging cost.
4. Weather and Durability Resistance, Stable and Non-decaying Water-based Film-forming Performance
The cesium tungsten bronze powder after special hydrophilic modification has strong chemical inertness. After film-forming, it is resistant to weak acids and weak alkalis, heat and humidity, salt spray, and ultraviolet aging. Under long-term outdoor exposure and high-temperature and high-humidity environments, problems such as heat insulation decay, yellowing, loss of transparency, powdering, and migration and precipitation will not occur.
The product is free of heavy metals such as lead, mercury, and cadmium, environmentally friendly and non-toxic, fully meeting the domestic environmental protection testing standards for water-based coatings, optical films, home decoration building materials, and automobile interiors, and is suitable for high-end civil, indoor home decoration, and long-term outdoor weather resistance scenarios.
5. Low Addition Amount, Extremely High Comprehensive Cost Performance
This product has high heat insulation efficiency. An excellent infrared and ultraviolet blocking effect can be achieved with a very low addition amount, without affecting the original light transmittance, adhesion, hardness, and mechanical properties of the substrate.
Under the same heat insulation index, the addition amount is much lower than that of traditional ATO and ITO heat insulation slurries; the pure water-based formula does not require supporting organic solvents, and customers do not need to transform the oil-based production line. The cost of model modification is extremely low, and the comprehensive production, environmental protection treatment, and quality control costs are significantly reduced.
III. Detailed Application Scenarios and Compatible Industries
1. Environmentally Friendly Water-based Heat Insulation Coatings for Home Decoration and Construction
Water-based heat insulation spray paint for indoor glass, transparent water-based heat insulation paint for home decoration floor-to-ceiling windows, environmentally friendly heat insulation coating for indoor daylighting PC boards, and water-based protective coating for window display glass.
Zero VOC and low odor, suitable for indoor home decoration construction without affecting indoor daylighting; effectively blocks infrared thermal radiation in summer, reducing air conditioning energy consumption, and at the same time blocks ultraviolet rays, preventing furniture, soft furnishings, and decorative paintings from fading and aging.
2. Environmentally Friendly Water-based Coatings for Automobile Interiors
Water-based heat insulation coating for interior glass of new energy vehicles, anti-UV water paint for transparent acrylic plastic parts in vehicles, thin water-based heat insulation film for viewing windows in RV interiors, and water-based anti-infrared protective coating for instrument screens.
No organic solvent residue, will not pollute the vehicle interior; the low-temperature drying process is compatible with plastic substrates, blocks the temperature rise caused by in-vehicle exposure, delays the aging of leather and plastic interiors, and has high light transmittance without affecting the driving and screen vision.
3. Optical Films and Water-based Functional Coatings
Environmentally friendly PET transparent water-based heat insulation coating, water-based anti-infrared protective coating for optical lenses, low-odor water-based heat insulation paint for displays, and water-based anti-UV modified coating for PC boards.
The powder is ultra-fine, with transparent dispersion and low haze, suitable for precision thin coating of high-end optical films. The solvent-free coating will not corrode the optical substrate, taking into account both high-definition light transmission and heat insulation and sun protection effects.
4. Light Industry, Food Equipment, and Indoor Protection Fields
Water-based heat insulation protective coating for observation windows of food equipment, environmentally friendly water-based heat insulation film for display glass of supermarket freezers, transparent protective water paint for children's toys, and water-based protective coating for outdoor small precision instruments.
The pure water system meets the environmental protection requirements for food and children's products, with no harmful solvent residue; it is compatible with normal and low-temperature working conditions, blocks high temperatures and ultraviolet rays, and protects equipment and supplies for long-term stability.
5. Modification of Water-based Inks and Environmentally Friendly Top Coats
Water-based heat insulation transparent printing inks, water-based heat insulation coatings for glass screen printing, and modification of high-end indoor water-based weather-resistant top coats, suitable for printing and coating scenarios requiring low odor, zero VOC, and high light transmission and heat insulation.
IV. Processing and Usage Instructions
1. Dilution and Preparation: It is only recommended to use deionized pure water for dilution as needed; the stirring speed is 800–1200r/min, and stir for 10–15 minutes until completely uniform and transparent; direct one-time mixing with a large amount of alcohol, ester, and ether solvents is prohibited to avoid powder demulsification and flocculation.
2. System Blending: When compounding with water-based emulsions and water-based resins, it is recommended to pre-dilute the dispersion with water first, and slowly add it dropwise to the water-based base material while continuously stirring to ensure a stable system, no particles, no agglomeration, and no demulsification.
3. Construction Process: It is compatible with conventional water paint processes such as spraying, curtain coating, roller coating, dip coating, and brush coating; the water volatilizes gently, and it can be dried naturally at room temperature or dried at a low temperature of 60–100℃. The paint film flows evenly without pinholes or shrinkage cavities.
4. Storage Conditions: Store sealed in a cool, dry, and ventilated warehouse at a storage temperature of 5–35℃, avoiding direct sunlight, high-temperature exposure, and low-temperature freezing; it is recommended to use it up within 3 months after opening. Slight sedimentation does not affect the heat insulation and light transmission performance after stirring.
V. After-sales Service and Supply Guarantee
1. Stable Supply of Spot Goods
Yantai Jialong Nano Industry Co., Ltd. has a dedicated automated dispersion production line for water-based systems. There is always a large amount of spot water-based GATO dispersion available. Normal orders will be shipped within 48 hours. Long-term cooperative customers can sign a price-locking and stockpiling agreement to ensure a stable delivery date without being affected by raw material market fluctuations.
2. One-on-one Exclusive Technical Support
A professional nano material engineer team is equipped to provide free full-process technical services: water-based coating formula adaptation and debugging, optimization of water paint leveling/demulsification problems, regulation of haze and light transmittance, matching of water-based resin compatibility, and rectification of paint film defects. For any process problems that occur during customer sample testing, remote guidance and customized optimization plans can be provided.
3. Strict Quality Assurance
Each batch of products comes with a spectral detection report, a solid content report, and a water dispersion stability detection report when leaving the factory, and all products will be shipped out after passing the full inspection. If there are quality problems such as stratification, agglomeration, substandard performance, damage, or liquid leakage in the received goods, unconditional free return, exchange, and reissue are supported, and all logistics loss costs will be borne.
4. Customized R & D Services
It can be customized according to customer process requirements: the solid content can be adjusted from 10%–30%, the particle size can be finely regulated, low-haze and high-permeability water-based formulas, and highly weather-resistant water-based modified formulas are available. Special water-based GATO dispersions can be customized for different scenarios such as home decoration water paints, water-based inks, optical films, and automobile interior coatings.
VI. Overview of the Company's Comprehensive Strength
Yantai Jialong Nano Industry Co., Ltd. is a high-tech enterprise in China specializing in the R & D, synthesis, precise dispersion, and sales of nano functional heat insulation materials. It mainly deals in the full range of water-based/oil-based multi-solvent dispersions, heat insulation powders, and optical functional slurries of GATO cesium tungsten bronze, ITO, and ATO.
1. R & D Hardware: It has an independent nano synthesis laboratory, a spectral optical detection room, and a pilot coating production line for water-based coatings. It is equipped with a laser particle size analyzer, an ultraviolet-visible-near-infrared spectrophotometer, a normal-temperature closed sanding device, and a constant-temperature reaction device, and can independently complete the hydrophilic modification of powders, the development of water-based system formulas, and the full set of detection of finished product performance.
2. Technical Team: The core R & D team has more than ten years of experience in the nano heat insulation material industry. For different solvent systems such as pure water, ethanol, ethyl acetate, PMA, isopropanol, 3G8, and propylene glycol butyl ether, it has developed a special coating and dispersion process, completely solving industry pain points such as powder agglomeration, unstable storage, and poor resin compatibility, and has many utility model patents related to nano heat insulation materials.
3. Production Advantages: It has a standardized and clean production workshop and an independent closed normal-temperature dispersion production line for water-based products. The whole production process is carried out at a constant temperature and dust-free, without organic solvent pollution, with extremely low impurity content and extremely high batch stability; it can meet the needs of large-tonnage factory orders.
4. Service Positioning: Centered on "environmentally friendly nano heat insulation materials + supporting water-based process solutions", it provides in-depth services
