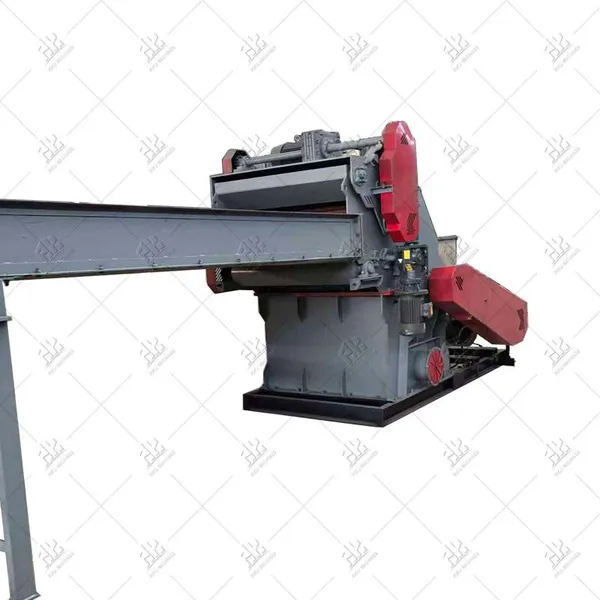

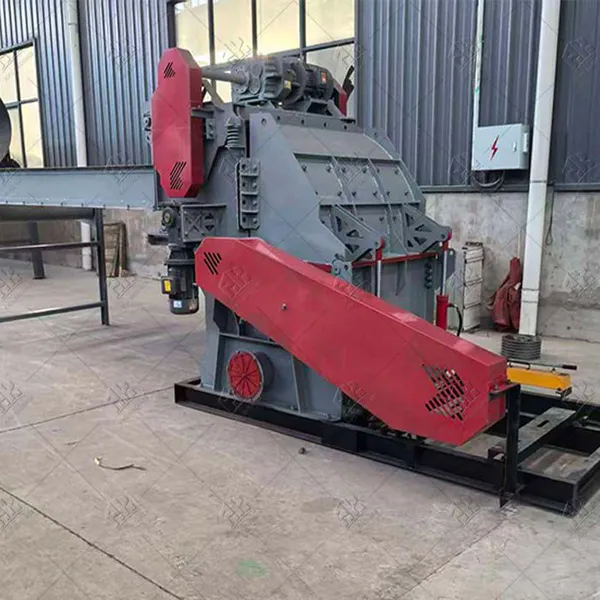

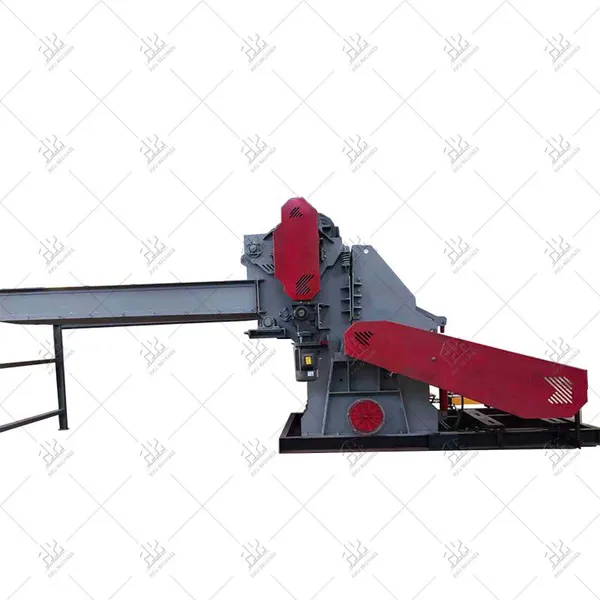

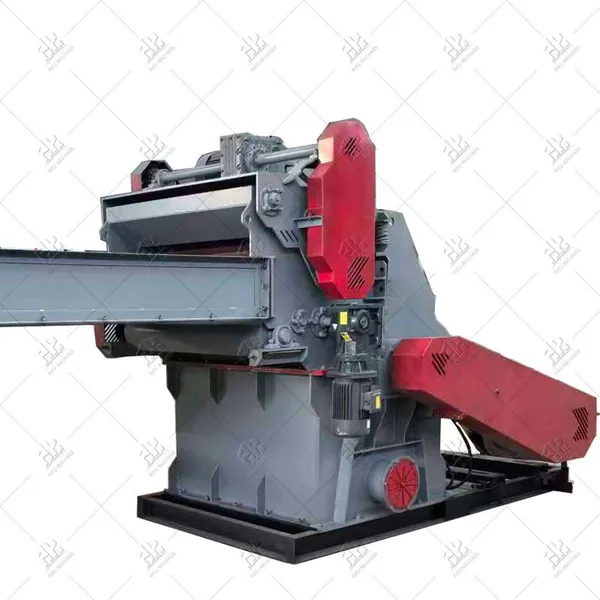

Help CenterWood Bark Crusher Tree Barks Hammer Crusher
Product Spotlights
2. Hydraulic system to open the gap
3. The two sides usage of the alloy cutter.
4. liner using the strong and durable materials
Related Products
-
Straw Hammer Crusher Paper Scrap Hammer Mill CrusherNegotiableMOQ: 1 Set -
Wood Pallet Hammer Shredder Wood Pallet Hammer CrusherUS$ 8500MOQ: 1 Set
-
Used Wood Pallet Hammer Crusher Machine Wood Pallet Hammer Mill ShredderUS$ 8500MOQ: 1 Set
-
Waste Wood Board Pallet Crusher Wood Pallet Scrap Hammer Mill Recycling MachineUS$ 8500MOQ: 1 Set
-
Hammer Shredder for Waste Wooden Pallets Wood Plastic Board Pallet Scrap Hammer MillUS$ 8500MOQ: 1 Set
Applicable Materials
Logs, tree branches, wood slabs/edges, bamboo, coconut shells, pallets, sawmill offcuts, and other biomass waste
Application Fields
1.Biomass pellet fuel production
2.Edible fungus (mushroom) cultivation substrate
3.Paper pulp & cardboard manufacturing
4.Particleboard / MDF / fiberboard raw material
5.Organic fertilizer & landscaping mulch
Working Principle
Materials are fed into the hopper and drawn in by the forced-feed pressure rollers. Inside the crushing chamber, high-speed rotating hammers/blades impact, shear, and grind the wood. The processed material passes through a screen (mesh size customizable) and is discharged by a fan or conveyor. The forced feeding mechanism prevents material rollback and clogging, enabling stable processing of irregular or bulky wood.
Technical paremeters
Model |
Main Power (kW) |
Feed Roller Power (kW) |
Max. Feed Size (mm) |
Capacity (kg/h) |
|---|---|---|---|---|
| RK-5005 | 18.5-22 | 1.1 | ≤200 | 300-500 |
| RK-7001 | 30–37 |
1.5 |
≤200 |
600–800 |
| RK-8003 | 45–55 |
1.5 |
≤300 |
1000–1500 |
| RK-1006 | 75-90 | 3 | ≤500 | 2000-3000 |
Key Features

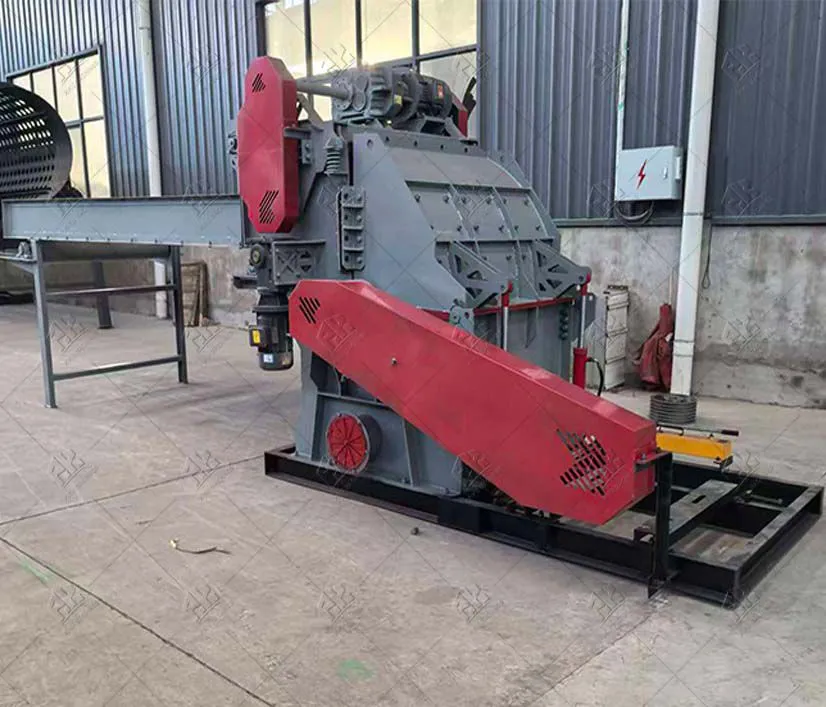

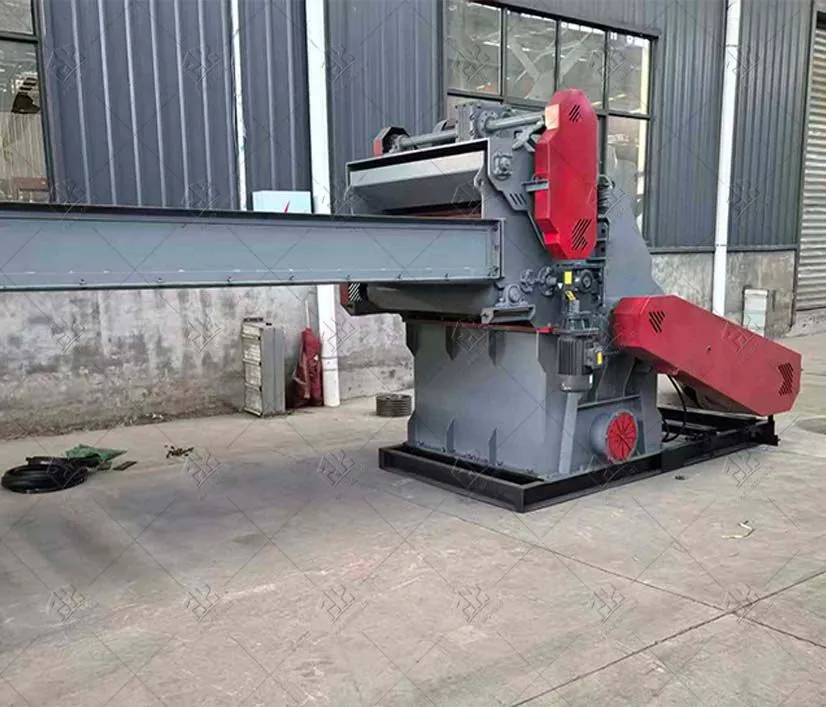

Forced Feeding System – Hydraulic or mechanical pressure rollers automatically grip materials, no manual pushing required; anti-jamming and non-backflow design.
One-Pass Sawdust Forming – Crushes branches, slabs, bamboo, bark, etc. directly into uniform sawdust; fineness adjustable via screen mesh.High Efficiency & Labor Saving – Continuous automatic feeding significantly increases output and reduces operator workload.

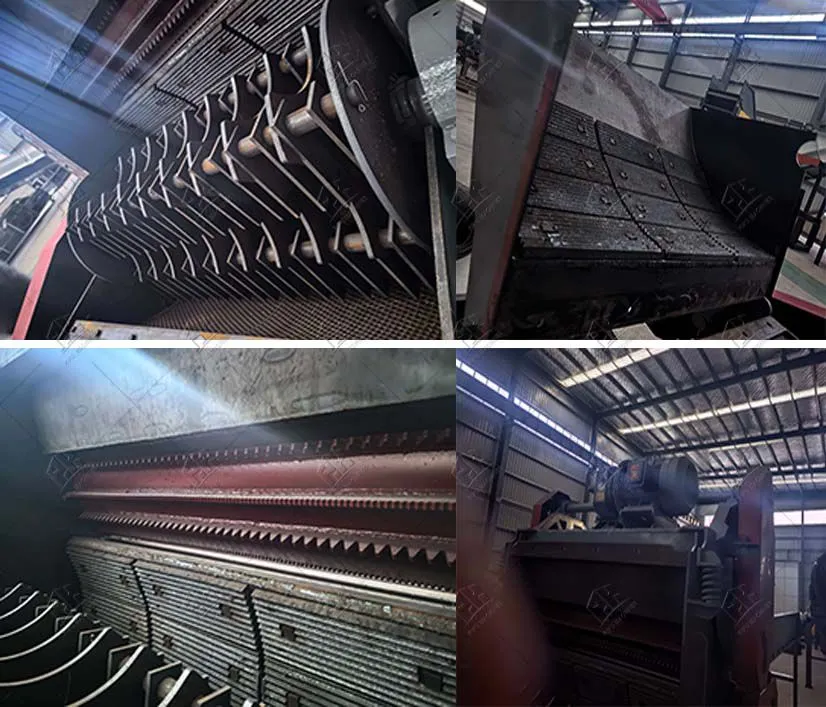

Durable Construction – Heavy-duty frame with wear-resistant hammers/blades (manganese steel or alloy); dynamically balanced rotor for smooth operation.
Flexible Configuration – Available with electric motor or diesel engine; optional mobile trailer type, cyclone discharger, and dust collection system.
Safety & Automation – Overload protection, auto-reverse function on jamming, and optional frequency inverter for feed speed control.
