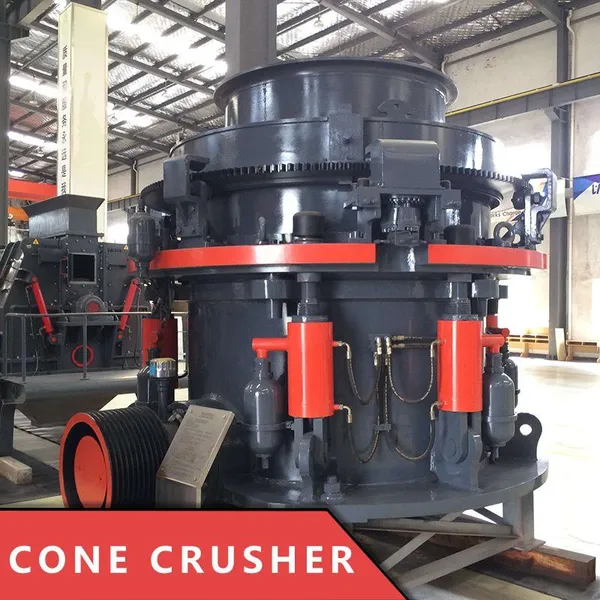

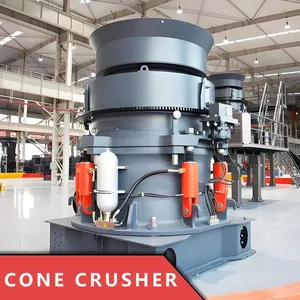

Help CenterHPT300 Multi Cylinder Hydraulic Cone Crusher for Granite Basalt Hard Rock Processing
Product Spotlights
Multi-Cavity Conversion: Flexible conversion between coarse, medium, and fine cavity types for diverse needs.
Siemens PLC Monitoring: Intelligent control system ensures safety and operational monitoring.
Full Hydraulic Control: Enables precise discharge port adjustment and stable operation under heavy loads.
Related Products
-
HPT400 Hydraulic Cone Crusher for Granite Quarry Stone Crushing and Aggregate ProductionNegotiableMOQ: 1 Unit -
HPT500 Multi Cylinder Hydraulic Cone Crusher for Hard Rock Mining and Quarry CrushingNegotiableMOQ: 1 Unit
-
HPT800 Large Hydraulic Cone Crusher for Granite Basalt Aggregate Crushing PlantNegotiableMOQ: 1 Unit
-
HPT100 Multi Cylinder Hydraulic Cone Crusher for Granite Limestone CrushingNegotiableMOQ: 1 Unit
-
HPT200 Hydraulic Cone Crusher for Limestone Basalt Quarry Aggregate ProductionNegotiableMOQ: 1 Unit

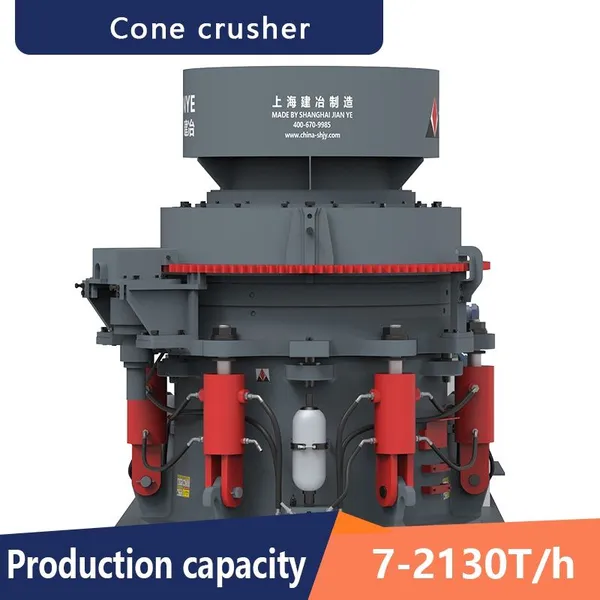

HPT Series Multi-Cylinder Cone Crusher
Production capacity: 50-1200 t/h—High crushing efficiency, High product quality uniformity, Suitable for medium-hard materials, Easy maintenance

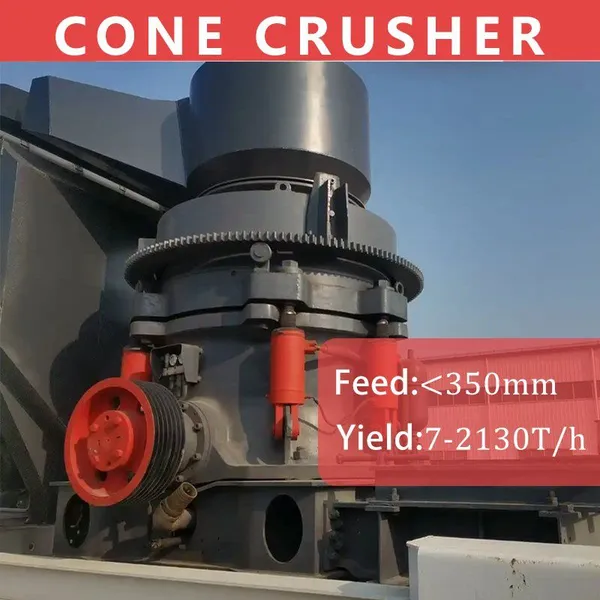

Input size: ≤350mm—Equipment of different specifications can be customized according to customer requirements.
Detailed Introduction:
The HPT Series Multi-Cylinder Cone Crusher integrates advanced tech, hydraulic & intelligent control. It features high efficiency, good cubic product shape, and low wear, with full hydraulic protection and Siemens PLC monitoring. Suitable for medium-fine crushing of hard ores (granite, basalt) in mining/construction/cement industries, plus small footprint and easy maintenance.
Product Features
Working Principle:
When the HPT multi-cylinder hydraulic cone crusher works, the motor drives the gear shaft via a pulley and V-belt. The drive shaft rotates the eccentric sleeve around the main shaft through bevel gears, making the movable cone swing. The movable and fixed cones alternately approach and move away, squeezing, impacting and crushing material in the cavity formed between them. Crushed material discharges from the bottom.
Applicability:
1. Laminated crushing and good product shape: Adopting the laminated crushing principle, it minimizes excessive crushing, resulting in uniform particle size and excellent cubic product shape, which meets high-quality aggregate requirements.
2. Multi-cavity conversion and one machine with multiple purposes: Supporting flexible conversion between different cavity types (coarse, medium, fine), the crusher can handle various materials and meet diverse crushing needs, achieving multi-functional applications with a single machine.
Innovation:
1.Structural upgrade and higher efficiency: The optimized structural design enhances overall stability, reduces energy loss during operation, and significantly improves crushing efficiency compared to traditional models.
2. Full hydraulic control with accuracy and reliability: Equipped with advanced full hydraulic control systems, it enables precise adjustment of discharge ports and stable operation, ensuring reliable performance even under heavy-load working conditions.
Application Areas
The HPT multi-cylinder hydraulic cone crusher is widely used in mining, construction, cement and aggregate industries, ideal for medium-fine crushing of hard materials like ores, granite and basalt.
Technical Parameters
Model |
Chamber |
Size of feed opening (mm) |
Min discharge opening size (mm) |
Capacity (t/h) |
Power (kw) |
HPT100 |
C1 (Ultra coarse) |
140 |
19 |
50-140 |
90 |
C2 (Coarse) |
100 |
13 |
|||
M (Medium) |
70 |
9 |
|||
F1 (Fine) |
50 |
9 |
|||
F2 (Super fine) |
20 |
6 |
|||
HPT200 |
C2 (Coarse) |
185 |
19 |
90-250 |
160 |
M (Medium) |
125 |
16 |
|||
F1 (Fine) |
95 |
13 |
|||
F2 (Super fine) |
75 |
10 |
|||
HPT300 |
C1 (Ultra coarse) |
230 |
25 |
110-440 |
250 |
C2 (Coarse) |
210 |
19 |
|||
M (Medium) |
150 |
16 |
|||
F1 (Fine) |
105 |
13 |
|||
F2 (Superfine) |
80 |
10 |
|||
HPT400 |
C1 (Ultra coarse) |
295 |
30 |
135-630 |
315 |
C2 (Coarse) |
251 |
25 |
|||
M (Medium) |
196 |
20 |
|||
F1 (Fine) |
110 |
13 |
|||
F2 (Super fine) |
90 |
10 |
|||
HPT500 |
C1 (Ultra coarse) |
330 |
38 |
220-790 |
400 |
C2 (Coarse) |
290 |
30 |
|||
M (Medium) |
210 |
22 |
|||
F1 (Fine) |
135 |
16 |
|||
F2 (Super fine) |
95 |
13 |
|||
HPT800/ |
C1 (Ultra coarse) |
350 |
38 |
310-1200 |
630 |
C2 (Coarse) |
299 |
32 |
|||
M (Medium) |
265 |
25 |
|||
F1 (Fine) |
220 |
16 |
|||
F2 (Superfine) |
150 |
Company Introduction
Shanghai Jianye Heavy Industry Co., Ltd. was established in 2006 and is engaged in theinnovation and manufacturing of complete sets of crushing, screening, and grindingequipment, We provide customized solutions for the resource recycling and reuse ofhighways, railways, hydro-power, and construction waste. Our products include sandand gravel production equipment, industrial mills, screening and washing equipmentand mobile crushing stations, which are widely used in engineering projects such as sand and gravel aggregate processing, mining, construction waste resource utilizationand industrial powder production.With the slogan of "Harmonious Take-off, CreatingJianye", the people of Jianye adhere to the fundamental principles of enterprise survivawhich are mature technology, excellent quality, reasonable price, and thoughtful serviceand take customer satisfaction as our goal.
Excellence quality product and perfect service can help you achive preconcerted aim.
Your succeed is ours, hope cooperate profitly and develop each other.
Pre-sale:
1. Guide our customers to deploy the most useful equipment item according to theirs requiryment.2. Provide technical date, including equipment bil, lavout, base specification and installation picture to consult
3. Design and manufacture product according to the customers'special requestment.
4, Dispatch the technical person to reach the locale to lavout field, desian the best installtion flow and scheme to consult for free
Sale:
1.Product according to the standard of technology strictly
2.Experiment the machine by the operating regulate.
3. Verify the product before leaving factory strictly
4. Organize shipping by the contract in time.
After-sales:
1. Dispatch special worker after service to arrive locale to guide the user to install and debug, experiment circulate, rain operating personsfor free.
2. Guarantee of repal,replacement and refund of substandard products,the period of guarantee is 1 year(except abrasion in norma, wearingparts, the damaged parts by misoperation) lf the equipment appears fault during guarantee, our company woulde to reach the locale after takethe user's telephone, remove the fault, ensure the user's produce innormal.
FAQ:
1. How long is the warranty of your equipment? Do you supply spare parts?
Our standard warranty period is one year, and we do indeed supply spare parts to ensure uninterrupted operation.
2. Do you provide after-sale services?
Absolutely. Our dedicated and professional after-sales team is committed to promptly resolving any issues you may encounter.
3. Do you provide equipment operation training?
Absolutely! We offer the expertise of our professional engineers who are ready to travel to your site for seamless equipment installation, precise adjustments, and comprehensive operation training. Our team is fully equipped with passports to ensure a swift response to your needs.
4. Are you a trading company or manufacturer?
We proudly operate as a factory. Our esteemed company, Shanghai Clirik Machinery, stands as a distinguished manufacturer specializing in cutting-edge mining equipment.
5. How long is your delivery time?
For your convenience, if the products are readily available in our stock, delivery typically takes only 10-15 days. Or, should the products require manufacturing, anticipate a delivery timeline of 15-20 days, contingent on the order quantity.
6. If I need a complete grinding production line, can you help us to build it?
Indeed, we are well-equipped to assist in establishing a comprehensive production line, offering you tailored and expert advice. With numerous successful mining projects accomplished both in China and internationally, our experience is at your service.
Warm Tips
In order to provide you with the best experience service,
please provide your detailed requirements, we will do our best to quote you a comprehensive plan and drawings!
Your satisfaction is our core value.
Punctuality and integrity are trustworthy, and quality and integrity are our top priorities.
We eagerly await your inquiries and the opportunity to serve you!
