As a leading manufacturer from Henan San Kuang Machinery Technology Co., Ltd., we are proud to introduce our 0.001mm Axial Runout Slewing Ring, specifically engineered for precise rotation in medical equipment. Our factory, established in 2014 and spanning over 10,000 square meters, combines advanced machining capabilities with rigorous quality control to deliver components that meet the demanding standards of the medical industry. This slewing ring ensures ultra-smooth, low-friction rotation with an axial runout tolerance of just 0.001mm, enabling reliable performance in CT scanners, MRI gantries, surgical robots, and other critical medical devices.
The product is designed to operate seamlessly within a wide temperature range of -20°C to +60°C, making it suitable for various clinical environments. Each unit undergoes strict inspection to guarantee consistent axial runout, long service life, and minimal maintenance. Below we detail the key features, technical specifications, and benefits that make this slewing ring the preferred choice for medical equipment manufacturers worldwide.
Key Features & Advantages
- Ultra-Precision Axial Runout ≤0.001mm – Ensures smooth, vibration-free rotation critical for high-resolution imaging and precise positioning.
- Wide Operating Temperature Range (-20°C to +60°C) – Reliable performance in both cold storage and sterilized environments.
- High Load Capacity – Optimized raceway geometry and hardened steel support heavy axial and radial loads typical of medical equipment.
- Low Friction & Long Life – Specialized grease lubrication and precision-ground surfaces reduce wear, extending service life beyond 10,000 cycles.
- Customizable Dimensions – Available in various outer diameters, inner diameters, and heights to fit specific equipment designs.
- Sealed Design – Options for contact or non-contact seals to protect against dust, debris, and sterilization agents.
- Easy Installation – Pre-drilled mounting holes and alignment marks simplify integration into existing assemblies.
- Quiet Operation – Noise level below 45 dB, ensuring silent operation in patient-care areas.
Technical Specifications
| Parameter | Value |
|---|---|
| Axial Runout | ≤0.001mm |
| Radial Runout | ≤0.002mm (optional) |
| Operating Temperature | -20°C to +60°C |
| Max Speed | 10 rpm (depending on load) |
| Dynamic Axial Load | Up to 500 kN (customizable) |
| Static Radial Load | Up to 300 kN (customizable) |
| Material | GCR15 bearing steel or 42CrMo4 alloy |
| Lubrication | Lithium-based grease (standard), food-grade grease available |
| Seal Type | Contact rubber seal / non-contact labyrinth seal |
| Mounting Holes | According to customer drawing or standard pattern |
Customer Benefits
- Enhanced Imaging Accuracy – The 0.001mm axial runout eliminates micro-movements, reducing artifacts in CT and MRI scans.
- Reduced Downtime – Robust construction and premium seals extend maintenance intervals, ensuring continuous operation in hospitals.
- Compliance with Medical Standards – Materials and lubricants can be selected to meet biocompatibility and sterilization requirements.
- Cost-Effective Customization – Our engineering team works closely with your design team to provide tailored solutions without excessive lead times.
- Global Logistics Support – We ship from major ports (Shanghai, Qingdao, Tianjin, Lianyungang) with reliable tracking and packaging.

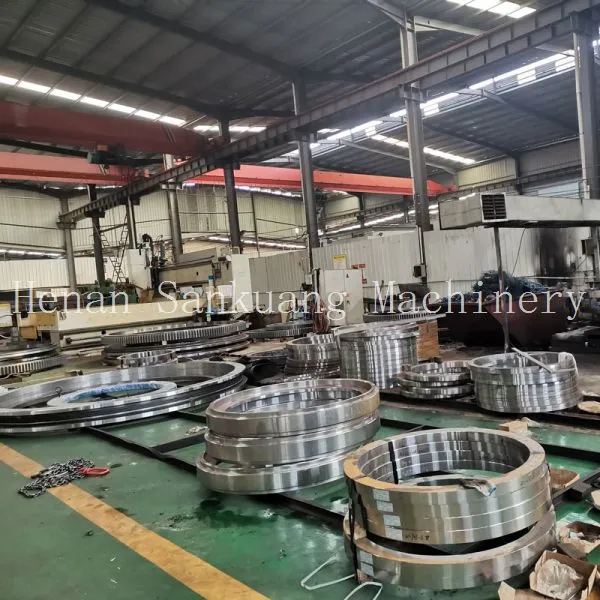

At Henan San Kuang Machinery Technology Co., Ltd., we have served clients across North America, Europe, Asia, and Oceania since 2014, with an annual export value exceeding US$2.5 million. Our 51-100 skilled employees operate in a 10,000-30,000 m² facility, and our quality management system is certified under ISO9001, ISO14001, OHSAS18001 and other international standards (certificates available upon request). Every slewing ring is 100% inspected for axial runout, dimensional accuracy, and rotational smoothness before shipment.
We invite you to experience the reliability of our precision slewing rings. Contact our sales team today for a quotation, technical drawing, or sample testing. Let us support your medical equipment innovation with components that deliver exceptional performance and peace of mind.
